SIGNAL GENERATOR
GR650 TEMPTER 1983 (D) USA (E03)

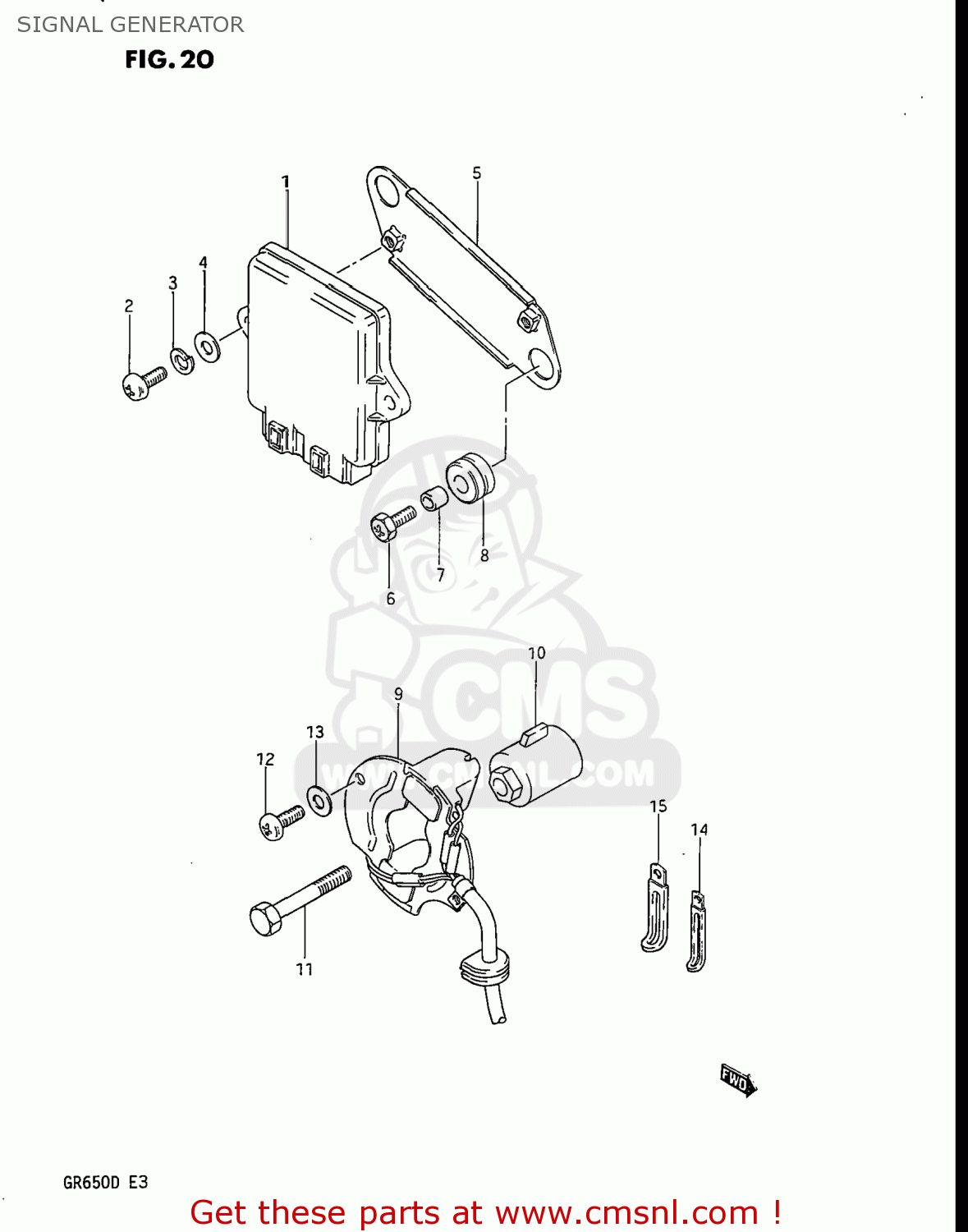

Signal generator diagram GR650 TEMPTER 1983 (D) USA (E03)
SIGNAL GENERATOR GR650 TEMPTER 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290015500
ref: 1
IGNITER UNIT ASSEMBLY
€ 565.50
2
0211206168
ref: 2
02112-06167
SCREW
€ 2.50
3
0832121068
ref: 3
08321-01067
LOCK WASHER
€ 2.50
4
0832221068
ref: 4
08322-01067
WASHER
€ 2.00
5
3293115500
ref: 5
BRACKET,IGNITER
€ 0.00
6
0912806039
ref: 6
SCREW
€ 2.00
7
0918006092
ref: 7
SPACER(6.2X8.3X6.1)
€ 4.00
8
0932008007
ref: 8
09320-08021
CUSHION
€ 4.00
9
3311015500
ref: 9
SIGNAL GENERATOR ASSEMBLY
€ 226.50
10
3312015500
ref: 10
GOVERNOR ASSEMBLY
€ 73.50
11
0110708508
ref: 11
01500-08507
BOLT 8X50
€ 3.00
12
0912505024
ref: 12
SCREW(5X12)
€ 2.00
13
0916005027
ref: 13
08322-01057
WASHER
€ 2.50
14
0940406401
ref: 14
09404-06432
CLAMP L:35
€ 2.50
15
0940408401
ref: 15
09404-08420
CLAMP
€ 3.50
