BATTERY
GS1000 1980 (T) USA (E03)

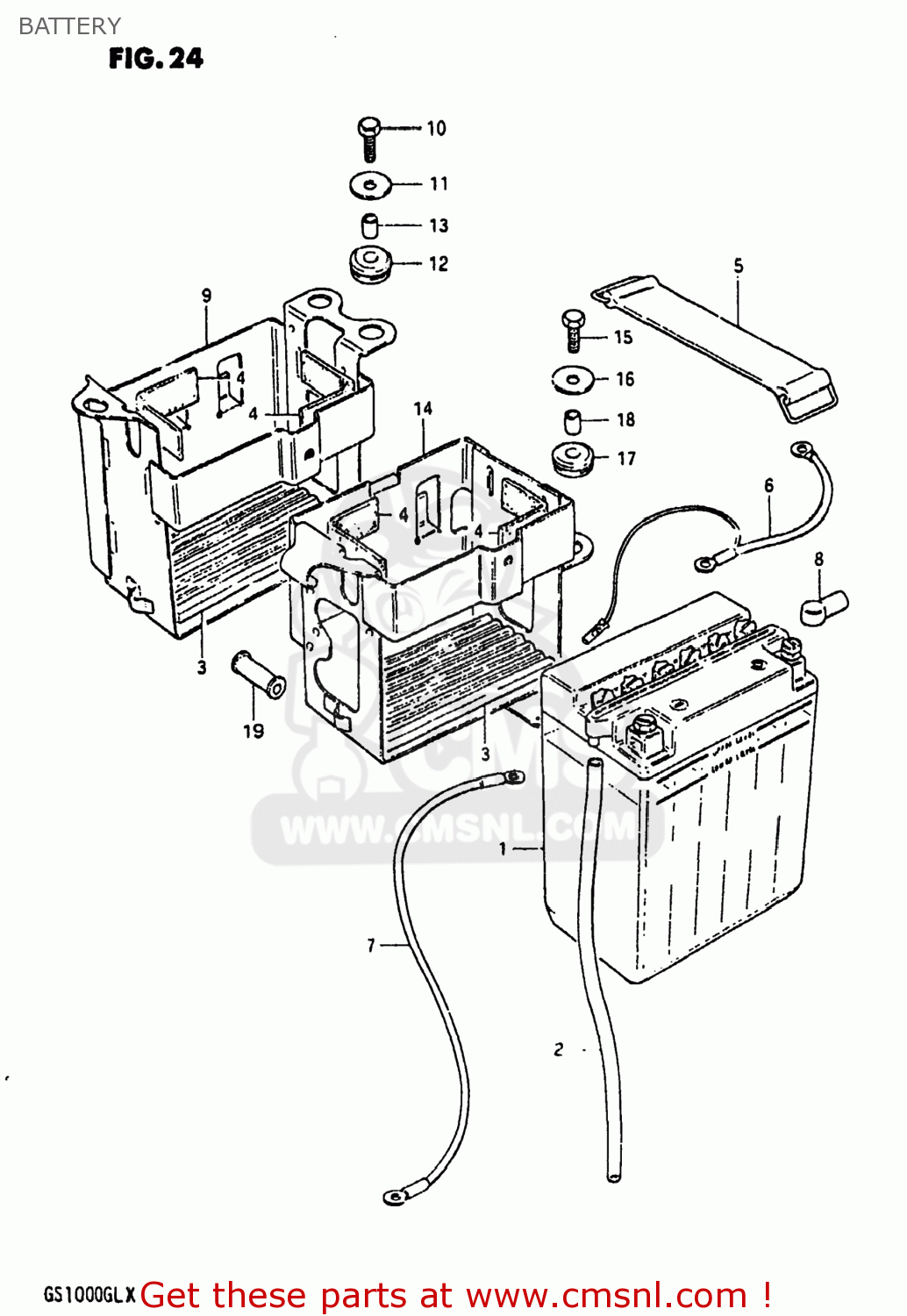

Battery diagram GS1000 1980 (T) USA (E03)
BATTERY GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3368031003
ref: 2
33680-16A10
HOSE,BATTERY EXHAUST
€ 4.50
3
3365131000
ref: 3
PROTECTOR,BATTERY
€ 29.00
4
3365249000
ref: 4
PROTECTOR(20X90)X4
€ 2.00
5
0946200007
ref: 5
BAND
€ 5.00
6-1
3382045001
ref: 6-1
33820-44B01
WIRE,BATTERY PLUS
€ 19.50
6-2
3382044100
ref: 6-2
33820-44B01
WIRE,BATTERY PLUS
€ 19.50
7-1
3385006200
ref: 7-1
33850-03201
WIRE,STARTER MOTOR LEAD
€ 8.50
7-2
3385003201
ref: 7-2
LEAD WIRE,BATTERY(-)
€ 8.50
8
3362445000
ref: 8
CAP,TERMINAL
€ 5.50
9
4154045110
ref: 9
HOLDER,BATTERY
€ 0.00
10
0110706168
ref: 10
01500-06167
BOLT, UPPER
€ 3.00
11
0916006020
ref: 11
09160-06066
WASHER
€ 2.00
12
0932008013
ref: 12
CUSHION
€ 4.00
13
0918006001
ref: 13
SPACER(6.2X8.3X5.7)
€ 2.00
14
4154045350
ref: 14
HOLDER,BATTERY
€ 30.00
15
0110706168
ref: 15
01500-06167
BOLT, UPPER
€ 3.00
16
0916006012
ref: 16
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
17
0932008013
ref: 17
CUSHION
€ 4.00
18
0918006001
ref: 18
SPACER(6.2X8.3X5.7)
€ 2.00
19
0932008022
ref: 19
CUSHION
€ 3.50
