FRAME COVER (MODEL X)

GS1000 1980 (T) USA (E03)

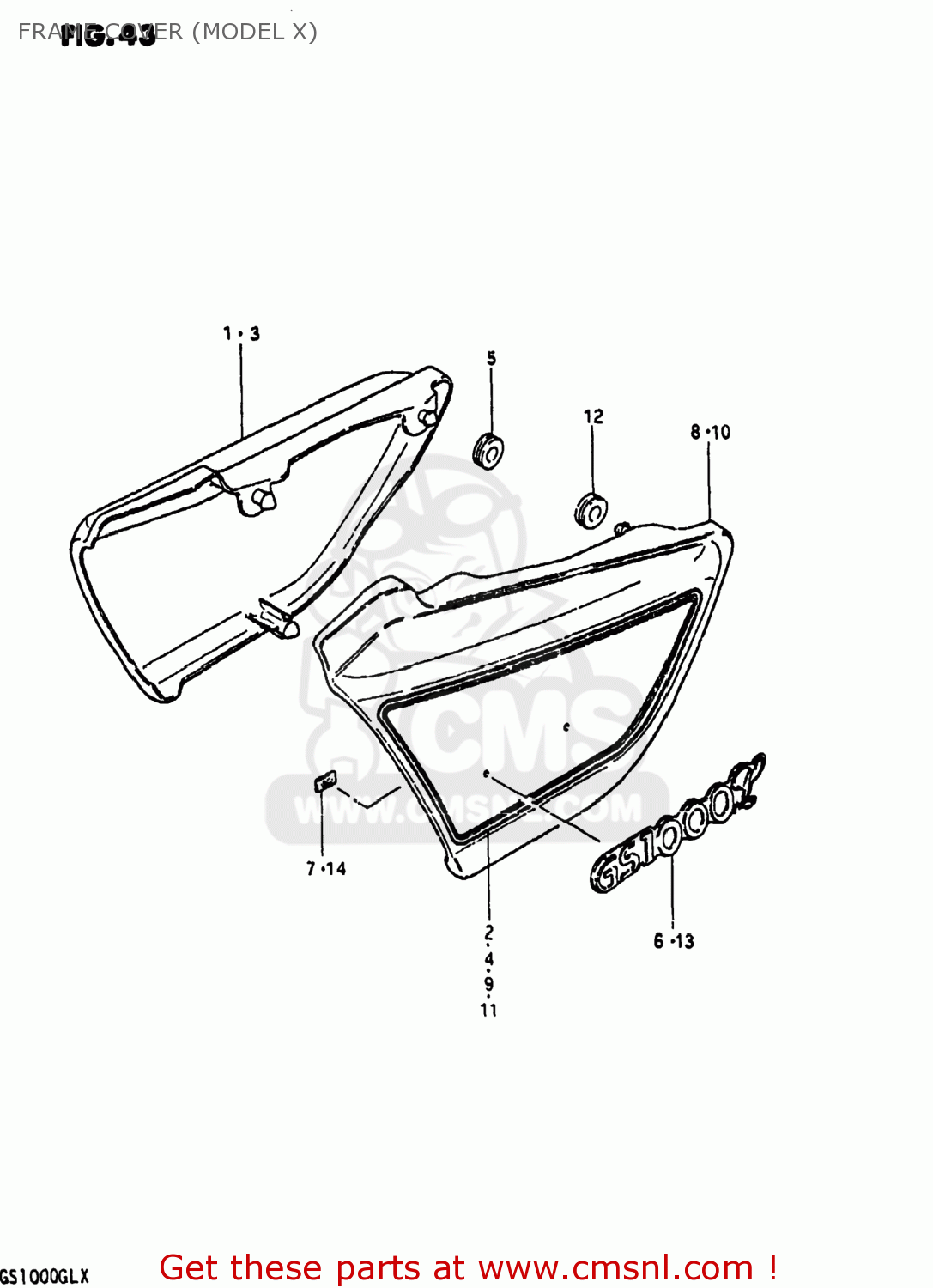

Frame cover (model x) diagram GS1000 1980 (T) USA (E03)

FRAME COVER (MODEL X) GS1000 1980 (T) USA (E03)

FRAME COVER (MODEL X) GS1000 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

471004587012S
ref: 1
47111-45310

COVER ASSEMBLY,FRAME,RIGHT

€ 65.00

2

681364532078V
ref: 2

TAPE,FRAME COVER,RIGHT

€ 16.50

3

4710045870019
ref: 3
47111-45310

COVER ASSEMBLY,FRAME,RIGHT

€ 65.00

4

681364532078U
ref: 4

TAPE,FRAME COVER,RIGHT

€ 17.50

5

0932008018
ref: 5

CUSHION

€ 4.00

6

6813149120
ref: 6

EMBLEM

€ 16.50

7

0914803002
ref: 7

NUT

€ 3.00

8

472004587012S
ref: 8
47211-45310

COVER ASSEMBLY,FRAME,LEFT

€ 66.50

9

681464532078V
ref: 9

TAPE,FRAME COVER

€ 16.00

10

4720045870019
ref: 10
47211-45310

COVER ASSEMBLY,FRAME,LEFT

€ 66.50

11

681464532078U
ref: 11

TAPE,FRAME COVER

€ 14.50

12

0932008018
ref: 12

CUSHION

€ 4.00

13

6813149120
ref: 13

EMBLEM

€ 16.50

14

0914803002
ref: 14

NUT

€ 3.00
