Buy Suzuki GS Parts Online


FRONT WHEEL (MODEL T)

GS1000 1980 (T) USA (E03)

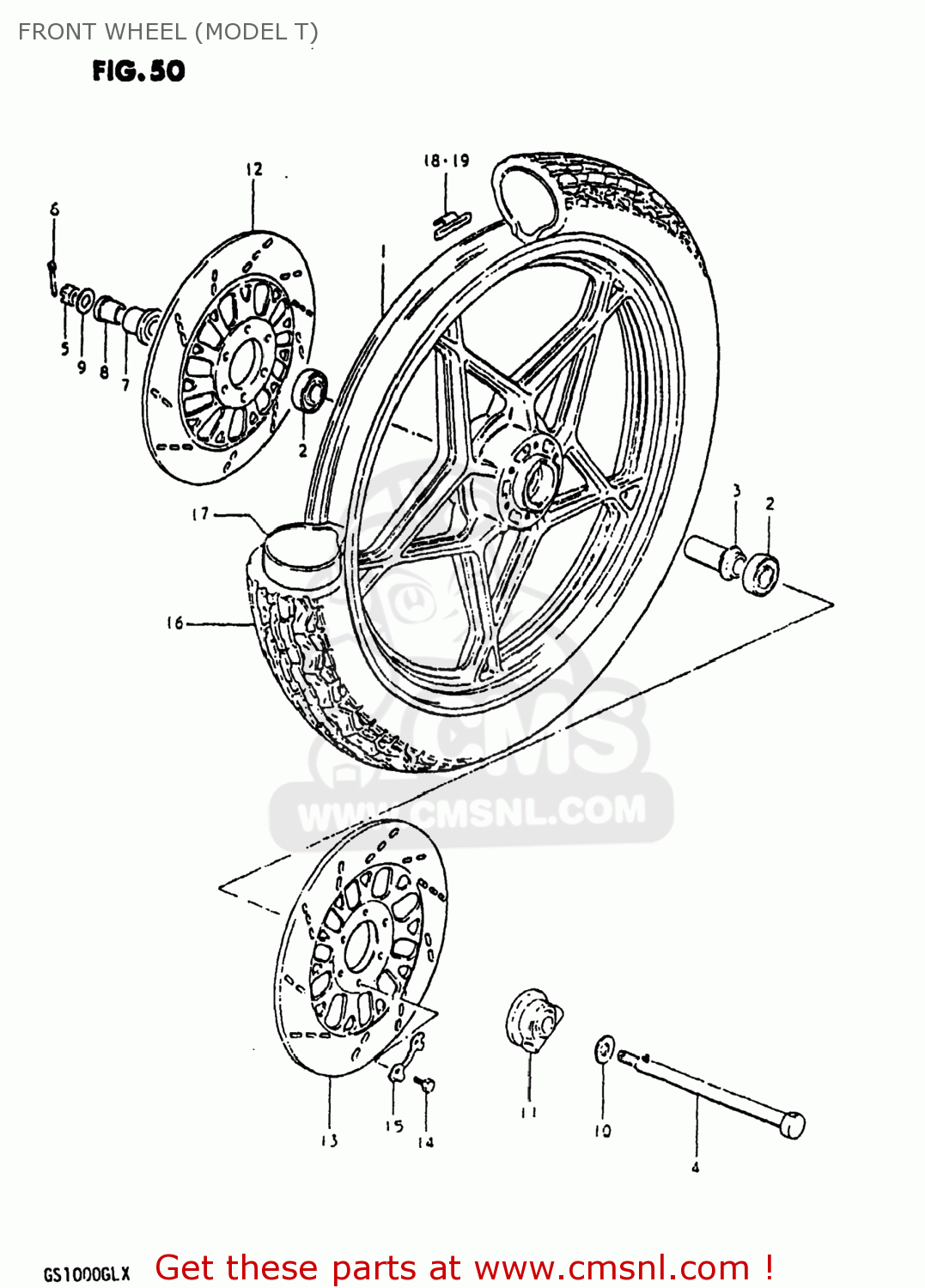

Front wheel (model t) diagram GS1000 1980 (T) USA (E03)

FRONT WHEEL (MODEL T) GS1000 1980 (T) USA (E03)
FRONT WHEEL (MODEL T) GS1000 1980 (T) USA (E03)
FRONT WHEEL (MODEL T) GS1000 1980 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
541114510112U
ref: 1
CASTING WHEEL,FRONT 1.85
€ 547.00
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471149000
ref: 4
AXLE,FR
5471149000
€ 79.50
5
0831431128
ref: 5
08314-3112A
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
04111-3030A
COTTER PIN
0411130308
€ 1.50
7
5474018402
ref: 7
SPACER,FR AXLE,R
5474018402
€ 18.50
8
5474149101
ref: 8
SPACER
5474149101
€ 14.00
9
0832221128
ref: 9
08322-01127
WASHER
0832221128
€ 2.00
10
0916015002
ref: 10
WASHER(15.5X26X2.3)
0916015002
€ 2.00
11
5460049100
ref: 11
BOX ASSY,SPEEDOMETER GEAR
5460049100
€ 90.00
12
5921145250
ref: 12
DISC,FR BRAKE,R
5921145250
€ 149.00
13
5922145250
ref: 13
DISC,FR BRAKE,L
5922145250
€ 149.00
14
0910008140
ref: 14
BOLT(8X25)
0910008140
€ 2.00
15
0916908016
ref: 15
WASHER
0916908016
€ 3.50
16
5510045116
ref: 16
TIRE,FRONT
€ 0.00
17
5520015010
ref: 17
55200-44610
TUBE,INNER
€ 41.00
18
5541145100
ref: 18
55412-17G00
BALANCER,WHEEL
5541145100
€ 7.00
19
5541245100
ref: 19
BALANCER,WHEEL
5541245100
€ 4.00
