REAR MASTER CYLINDER (MODEL X)
GS1000 1980 (T) USA (E03)

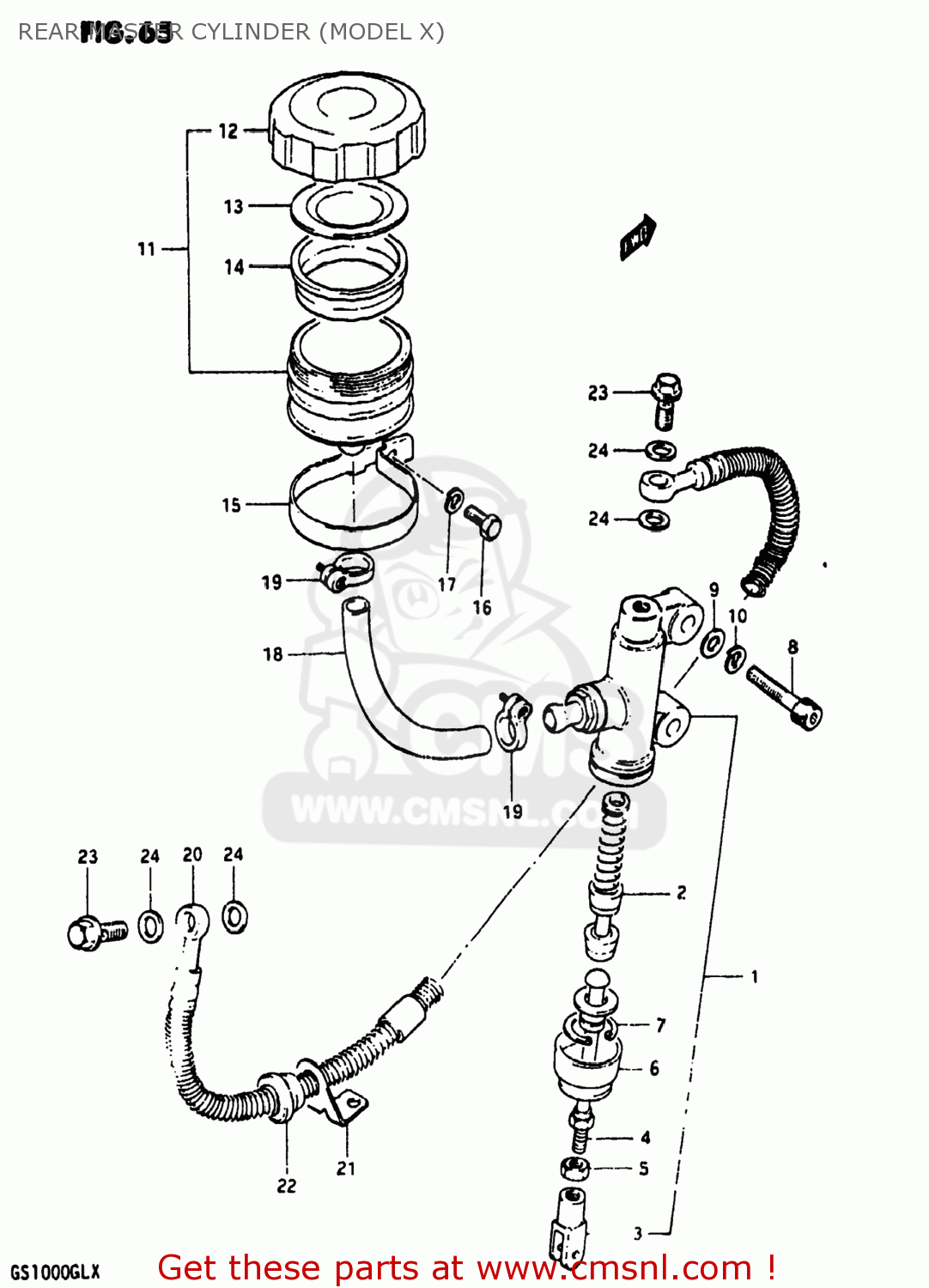

Rear master cylinder (model x) diagram GS1000 1980 (T) USA (E03)
REAR MASTER CYLINDER (MODEL X) GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960045300
ref: 1
69600-45302
CYLINDER ASSEMBLY,REAR MASTER
€ 177.00
2
6960045810
ref: 2
69600-45820
PISTON/CUP SET
€ 53.00
3
6969245001
ref: 3
69692-34300
YOKE
€ 11.00
4
6967045300
ref: 4
69670-45301
ROD,REAR MASTER CYLINDER
€ 13.50
5
0831012088
ref: 5
08310-00087
NUT
€ 2.00
6
6969145001
ref: 6
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
0910608013
ref: 8
07130-0830A
BOLT
€ 3.00
9
0832211088
ref: 9
08322-01087
WASHER
€ 2.00
10
0832131088
ref: 10
08321-01087
WASHER,LOCK,8.
€ 2.00
11
6974047011
ref: 11
69740-470V0
TANK ASSEMBLY,RESERVOIR
€ 41.00
12
5966933603
ref: 12
59669-07D00
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
€ 8.50
15
0940251601
ref: 15
09402-51602
CLAMP
€ 6.50
16
0110706168
ref: 16
01500-06167
BOLT, UPPER
€ 3.00
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
6973145300
ref: 18
HOSE,RESERVOIR TANK
€ 3.50
19
6973534200
ref: 19
CLAMP
€ 4.50
20
6948045300
ref: 20
HOSE,REAR BRAKE
€ 40.00
21
6924345300
ref: 21
GUIDE,BRAKE HOSE
€ 0.00
22
5924436200
ref: 22
GROMMET,BRAKE HOSE GUIDE
€ 4.00
23
0936010007
ref: 23
09360-10017
BOLT,UNION
€ 6.50
24
0916110005
ref: 24
09161-10009
WASHER
€ 2.00
