FRONT BRAKE HOSE
GS1000 1980 (T) USA (E03)

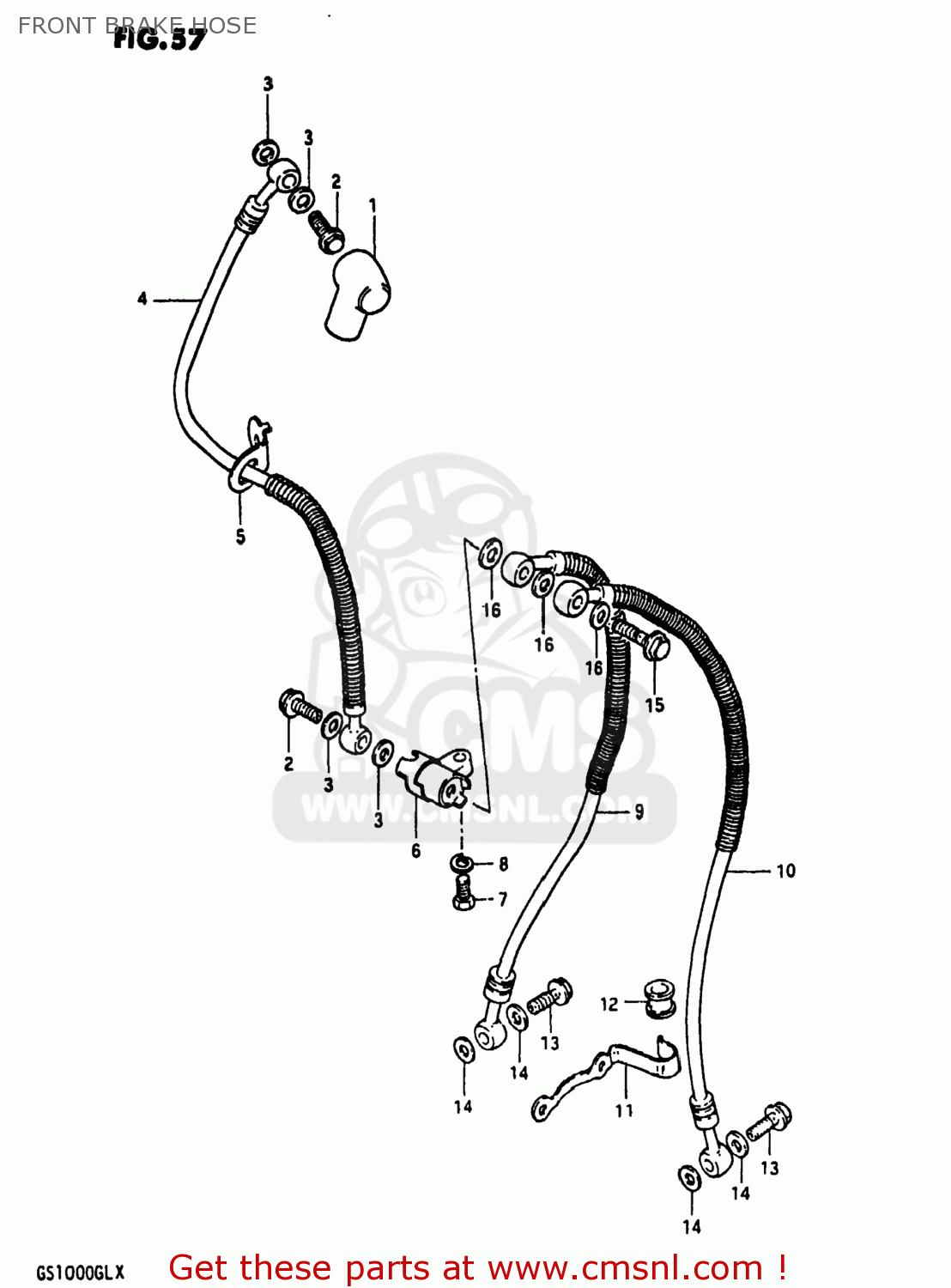

Front brake hose diagram GS1000 1980 (T) USA (E03)
FRONT BRAKE HOSE GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5971118400
ref: 1
59711-49001
BOOT,MASTER CYLINDER
€ 8.50
2
0936010007
ref: 2
09360-10017
BOLT,UNION
€ 6.50
3
0916110005
ref: 3
09161-10009
WASHER
€ 2.00
4
5948047052
ref: 4
HOSE,FRONT BRAKE NO.1
€ 38.50
5
5924345010
ref: 5
GUIDE,BRAKE HOSE
€ 8.50
6
5949145000
ref: 6
59491-45001
JOINT,BRAKE HOSE
€ 29.00
7
0110706208
ref: 7
01500-06207
BOLT
€ 2.00
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
5924047051
ref: 9
HOSE,FR BRAKE NO.2,L
€ 59.50
10
5924047051
ref: 10
HOSE,FR BRAKE NO.2,L
€ 59.50
11
5926849001
ref: 11
GUIDE,BRAKE HOSE NO.2
€ 7.00
12
5924449000
ref: 12
BUSH,BRAKE HOSE GUIDE,NO.2
€ 4.50
13
0936010007
ref: 13
09360-10017
BOLT,UNION
€ 6.50
14
0916110005
ref: 14
09161-10009
WASHER
€ 2.00
15
0936010008
ref: 15
09360-10018
BOLT,UNION
€ 7.00
16
0916110005
ref: 16
09161-10009
WASHER
€ 2.00
