GS1000 1980 (T) USA (E03)

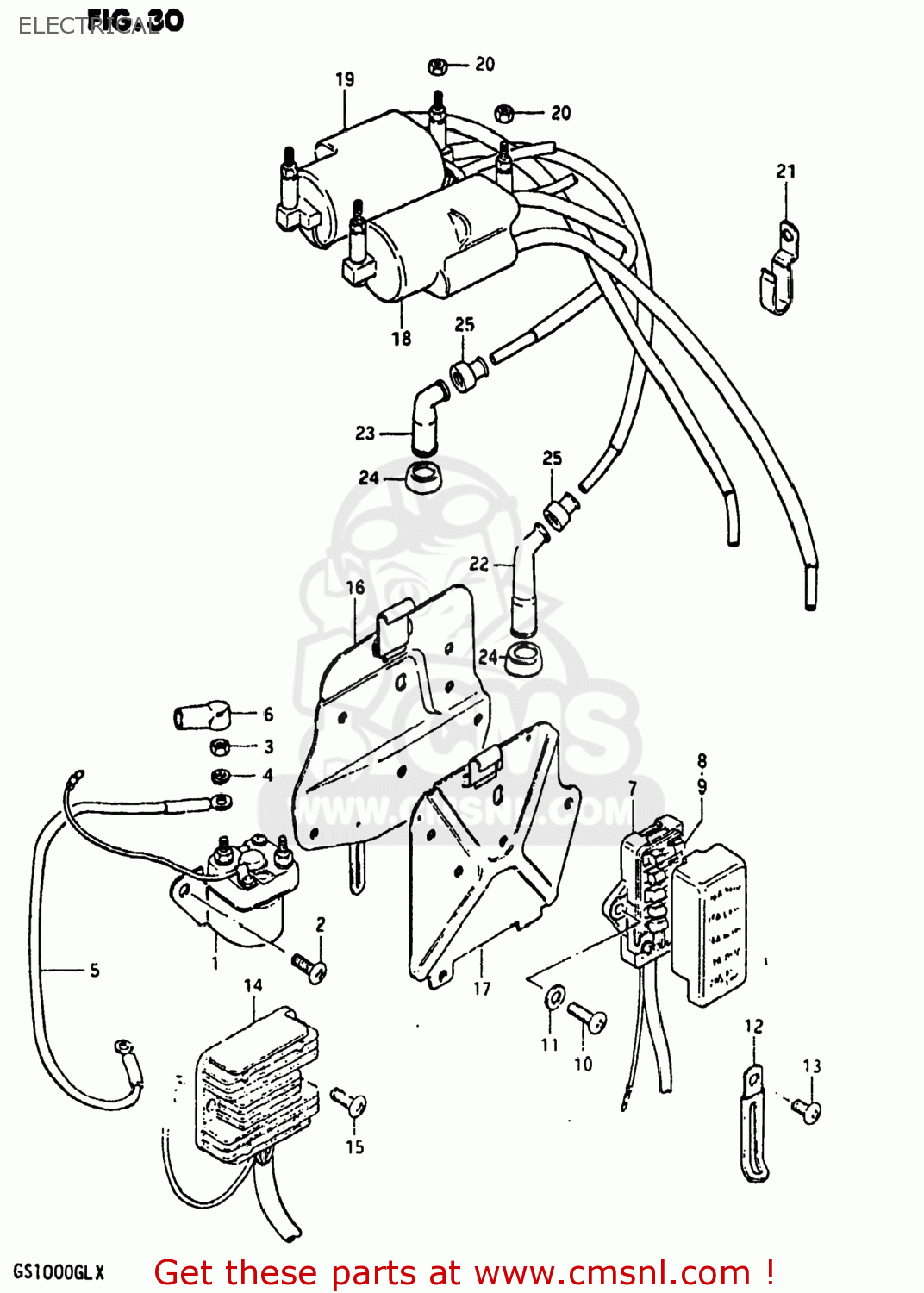

Electrical diagram GS1000 1980 (T) USA (E03)
ELECTRICAL GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206108
ref: 2
02112-06107
SCREW
€ 1.50
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
3385010300
ref: 5
33850-00A01
WIRE,STARTER MOTOR LEAD
€ 24.00
6
3186135100
ref: 6
31861-48B10
CAP,STARTER RELAY
€ 4.50
7-1
3674049200
ref: 7-1
36740-49X02
BOX ASSEMBLY,FUSE
€ 94.00
7-2
3674049100
ref: 7-2
36740-49X01
BOX ASSEMBLY,FUSE
€ 39.00
8
0948110001
ref: 8
FUSE(10A)
€ 2.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10-1
0211206168
ref: 10-1
02112-06167
SCREW
€ 2.50
10-2
0211206128
ref: 10-2
02112-06127
SCREW 6X12
€ 2.00
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
0940406401
ref: 12
09404-06432
CLAMP L:35
€ 2.50
13
0211206088
ref: 13
02112-06087
SCREW
€ 2.00
14-1
3280045240
ref: 14-1
32800-47121
RECTIFIER ASSEMBLY
€ 248.00
14-2
3280049140
ref: 14-2
32800-49X50
RECTIFIER ASSEMBLY
€ 397.00
15
0211206128
ref: 15
02112-06127
SCREW 6X12
€ 2.00
16
4741045101
ref: 16
HOLDER COMP,ELECTRONIC PARTS
€ 0.00
17
4741045300
ref: 17
HOLDER COMP,ELECTRONIC PARTS
€ 7.00
18
3341045110
ref: 18
33410-45112
COIL ASSEMBLY,IGNITION
€ 133.50
19
3342045110
ref: 19
33410-45112
COIL ASSEMBLY,IGNITION
€ 133.50
20
0831011068
ref: 20
08310-00067
NUT
€ 2.50
21
0940306307
ref: 21
CLAMP
€ 4.50
22
3351045010
ref: 22
CAP ASSY,SPARK PLUG
€ 23.00
23
3351043010
ref: 23
CAP,SPARK PLUG
€ 11.50
24
3354169010
ref: 24
SEAL,SPARK PLUG
€ 5.00
25
3354298000
ref: 25
33542-38B00
SEAL,SPARK PLU
€ 4.50
