REAR WHEEL (MODEL T)
GS1000 1980 (T) USA (E03)

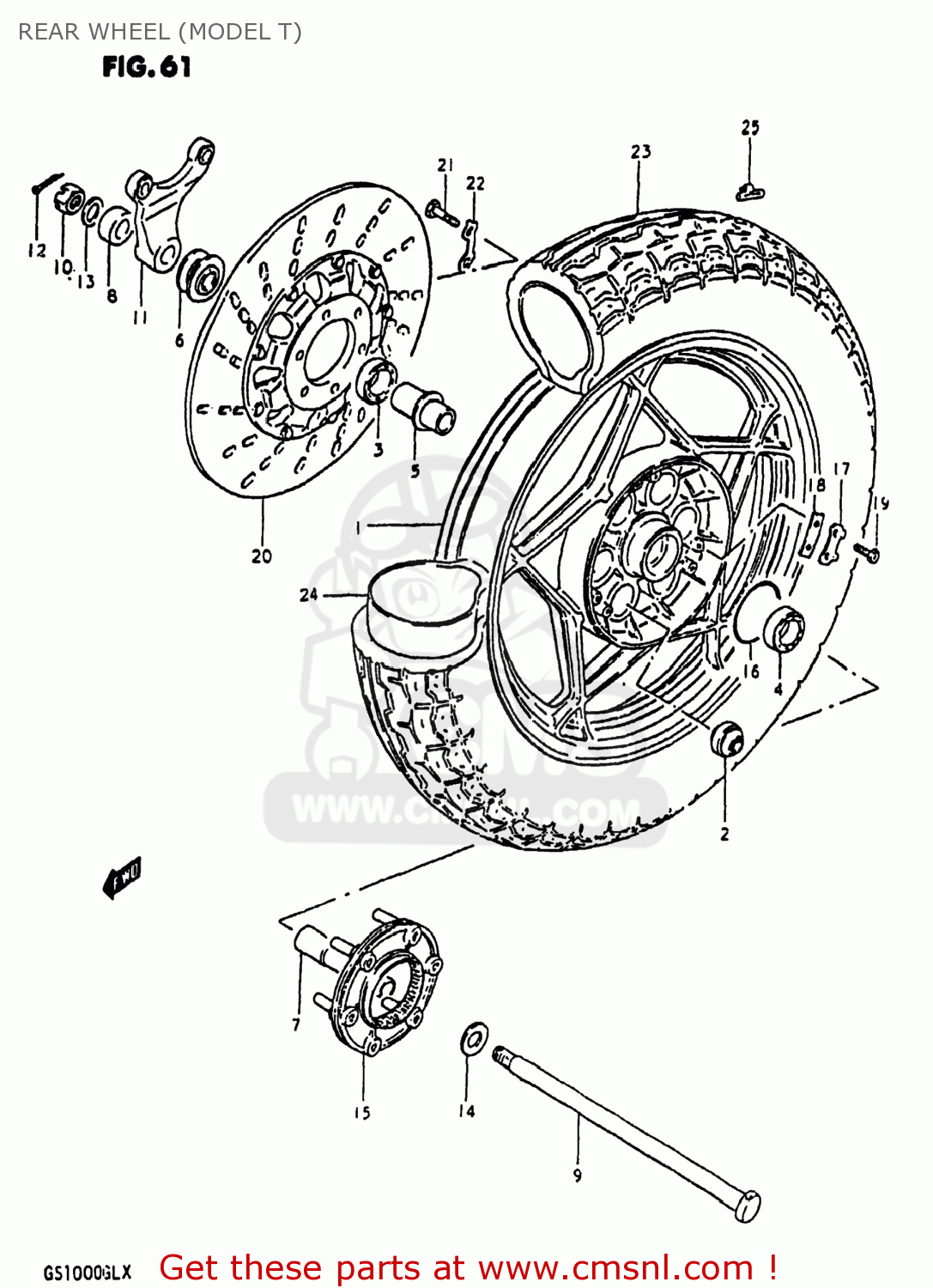

Rear wheel (model t) diagram GS1000 1980 (T) USA (E03)
REAR WHEEL (MODEL T) GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
641004581012U
ref: 1
CASTING WHEEL,REAR 2.50
€ 627.00
2
0931912019
ref: 2
BUSH
€ 10.50
3
0812363037
ref: 3
BEARING
€ 16.00
4
0814363037
ref: 4
BEARING
€ 23.00
5
6473045100
ref: 5
SPACER,REAR HUB BEARING
€ 14.00
6
6474047001
ref: 6
64740-47002
SPACER,REAR AXLE
€ 12.50
7
6477245100
ref: 7
64772-45101
SPACER,REAR AXLE,LEFT
€ 17.50
8
0918017053
ref: 8
SPACER (17X33X15.2)
€ 3.50
9
6471145100
ref: 9
AXLE,REAR
€ 40.00
10
0914116001
ref: 10
NUT
€ 6.50
11
6972147001
ref: 11
BRACKET,RR,CALIPER
€ 27.50
12
0411140308
ref: 12
04111-4030A
PIN,COTTER
€ 1.50
13
0832211168
ref: 13
08322-01167
WASHER
€ 2.00
14
0916017018
ref: 14
WASHER (17.5X36X3.2)
€ 2.00
15
6468045112
ref: 15
64680-45113
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
16
0928065003
ref: 16
O RING(D:2.1,ID:65)
€ 2.50
17-1
6467645112
ref: 17-1
09169-06030
WASHER (T:1.6)
€ 2.00
17-1
6467645112
ref: 17-1
09169-06030
WASHER (T:1.6)
€ 2.00
17-2
6467645114
ref: 17-2
09169-06030
WASHER (T:1.0)
€ 2.00
18
6467745110
ref: 18
WASHER,THRUST(T:1.6)
€ 2.50
18
6467745110
ref: 18
WASHER,THRUST(T:1.6)
€ 2.50
19
0912806005
ref: 19
02162-0616B
SCREW
€ 2.50
20
5921018450
ref: 20
DISC,RR BRAKE
€ 446.00
21
0910008094
ref: 21
BOLT(8X30)
€ 2.50
22
0916908016
ref: 22
WASHER
€ 3.50
23
6510045116
ref: 23
TIRE 4.50H17
€ 102.00
24
6520049010
ref: 24
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
25-1
5541145100
ref: 25-1
55412-17G00
BALANCER,WHEEL
€ 7.00
25-2
5541245100
ref: 25-2
BALANCER,WHEEL
€ 4.00
