STARTING MOTOR
GS1000 1980 (T) USA (E03)

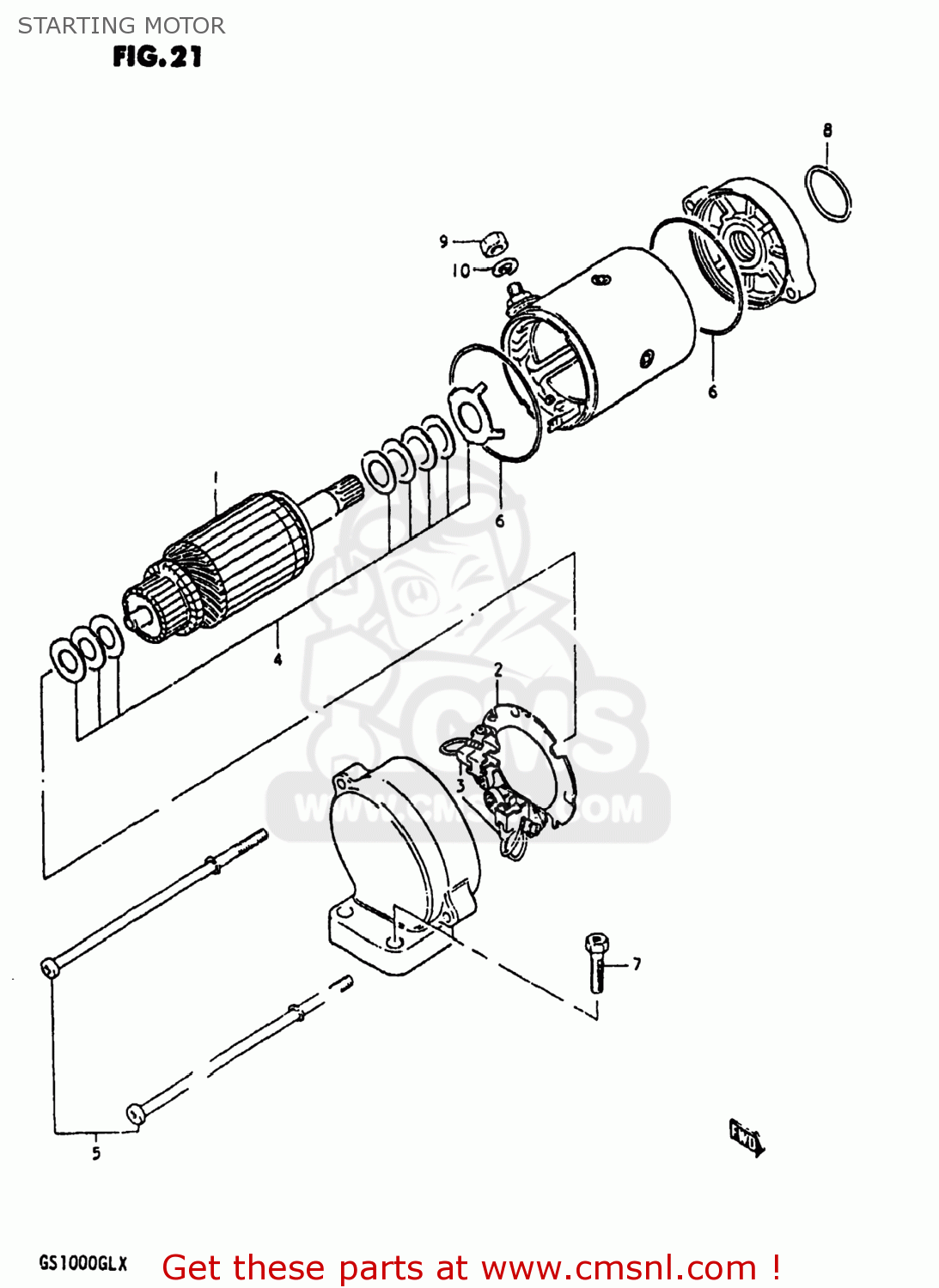

Starting motor diagram GS1000 1980 (T) USA (E03)
STARTING MOTOR GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
3110045040
ref: 0
31100-49050
MOTOR ASSEMBLY,STARTING
€ 873.50
1
3131131040
ref: 1
ARMATURE
€ 150.50
2
3117331040
ref: 2
HOLDER ASSY
€ 25.50
3
3113131040
ref: 3
BRUSH SET
€ 17.00
4
3136131040
ref: 4
SHIM SET
€ 22.50
5
3128131040
ref: 5
31280-26D00
BOLT,STARTING MOTOR HOUSING
€ 12.50
6
3126431040
ref: 6
O RING
€ 8.50
7
0912806024
ref: 7
09103-06212
SCREW (6X25)
€ 2.50
8
0928024001
ref: 8
O RING(D:2,ID:24.5)
€ 2.00
9
0831022068
ref: 9
08310-00067
NUT 6MM
€ 2.50
10
0832121068
ref: 10
08321-01067
LOCK WASHER
€ 2.50
