FRAME COVER (MODEL T)

GS1000 1980 (T) USA (E03)

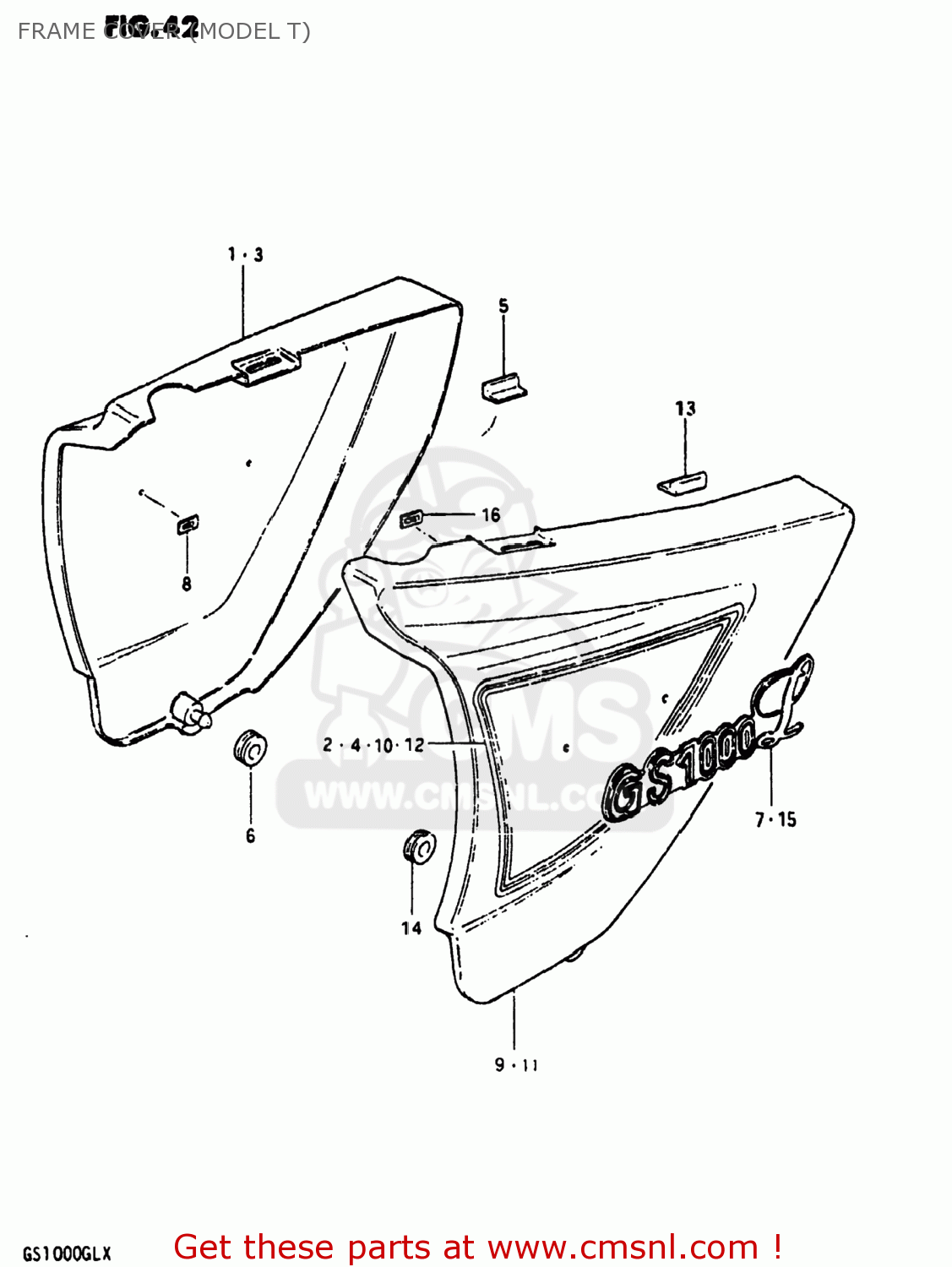

Frame cover (model t) diagram GS1000 1980 (T) USA (E03)

FRAME COVER (MODEL T) GS1000 1980 (T) USA (E03)

FRAME COVER (MODEL T) GS1000 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

471004581000J
ref: 1
47111-45300

COVER ASSEMBLY,FRAME,RIGHT

€ 49.50

2

681304530071P
ref: 2

TAPE SET,FRAME COVER

€ 19.50

3

471004581008E
ref: 3
47111-45300

COVER ASSEMBLY,FRAME,RIGHT

€ 49.50

4

681304530067M
ref: 4

TAPE SET,FRAME COVER

€ 17.00

5

4711745000
ref: 5

CUSHION,FRAME COVER

€ 1.50

6

0932008018
ref: 6

CUSHION

€ 4.00

7

6813149100
ref: 7

EMBLEM,FRAME COVER

€ 26.50

8

0914803002
ref: 8

NUT

€ 3.00

9

472004581000J
ref: 9
47211-45300

COVER ASSEMBLY,FRAME,LEFT

€ 49.00

10

681404530071P
ref: 10

TAPE SET,FRAME COVER

€ 9.50

11

472004581008E
ref: 11
47211-45300

COVER ASSEMBLY,FRAME,LEFT

€ 49.00

12

681404530067M
ref: 12

TAPE SET,FRAME COVER

€ 18.50

13

4711745000
ref: 13

CUSHION,FRAME COVER

€ 1.50

14

0932008018
ref: 14

CUSHION

€ 4.00

15

6813149100
ref: 15

EMBLEM,FRAME COVER

€ 26.50

16

0914803002
ref: 16

NUT

€ 3.00
