CAM CHAIN
GS1000 1980 (T) USA (E03)

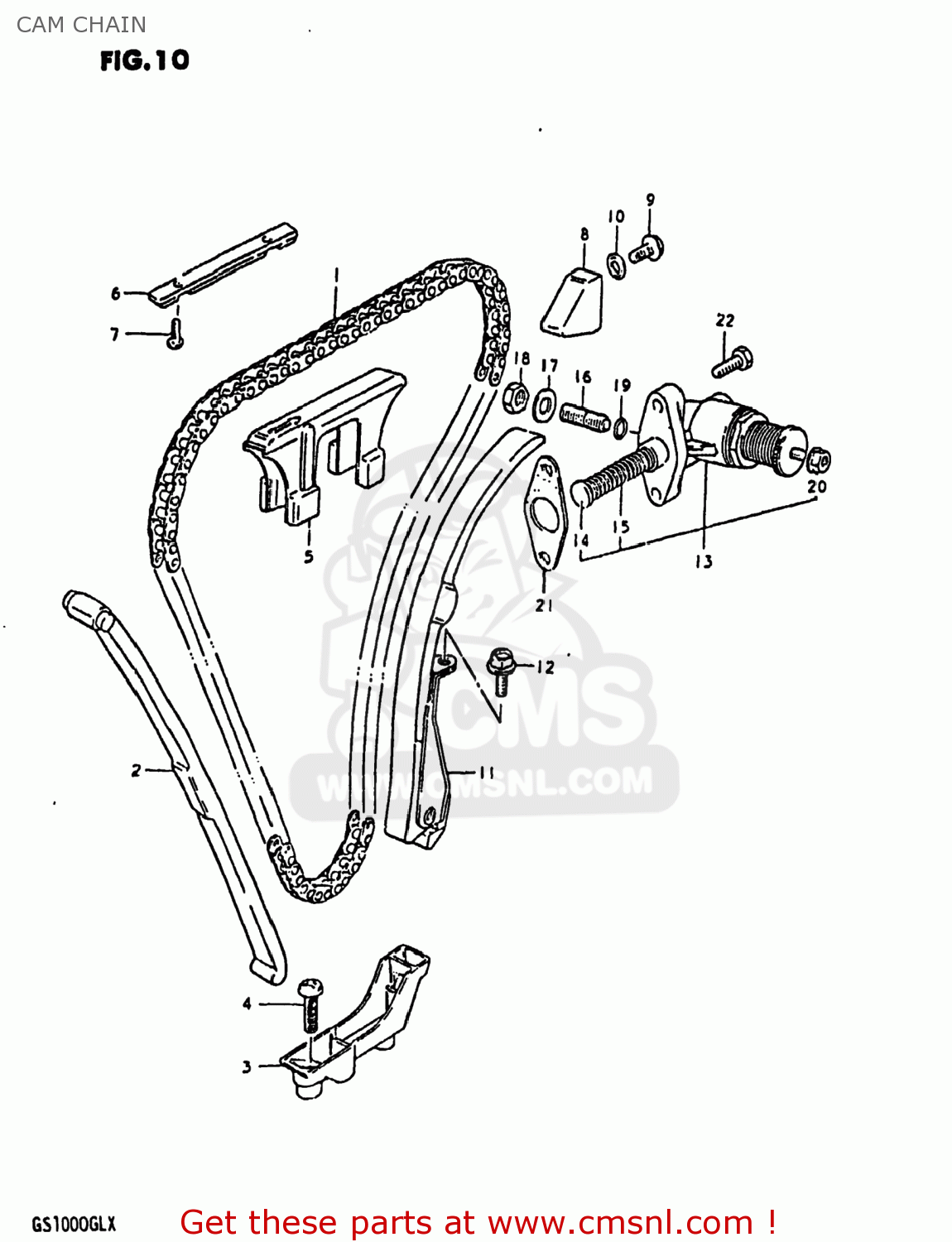

Cam chain diagram GS1000 1980 (T) USA (E03)
CAM CHAIN GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276049010
ref: 1
12760-45040
CHAIN,CAMSHAFT DRIVE
€ 112.00
2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
€ 33.50
3
1277649010
ref: 3
HOLDER,CAM CHAIN GUIDE
€ 9.50
4
0211206208
ref: 4
02112-06207
SCREW
€ 2.00
5
1278147042
ref: 5
GUIDE,CAM CHAIN NO.2
€ 136.50
6
1278249140
ref: 6
12782-33200
GUIDE,CAM CHAIN
€ 37.50
7
0211205108
ref: 7
02112-05107
SCREW
€ 2.00
8
1279145040
ref: 8
GUIDE,CAM CHAIN
€ 8.50
9
0151706128
ref: 9
01550-06127
BOLT
€ 2.50
10
0916806009
ref: 10
09168-06023
GASKET (NAS)
€ 2.00
11
1281049051
ref: 11
TENSIONER,CAM CHAIN
€ 92.00
12
0151708168
ref: 12
01550-08167
BOLT
€ 3.00
13
1283047001
ref: 13
12830-0930V
ADJUSTER ASSEMBLY,TENSIONER
€ 167.00
14
1283347001
ref: 14
ROD,PUSH
€ 25.00
15
0944012017
ref: 15
SPRING
€ 2.50
16
1283845001
ref: 16
SCREW
€ 6.00
17
0832211088
ref: 17
08322-01087
WASHER
€ 2.00
18
0831012088
ref: 18
08310-00087
NUT
€ 2.00
19
0928006003
ref: 19
09280-06005
O-RING
€ 2.50
20
0915906017
ref: 20
08319-31067
NUT
€ 2.50
21
1283747000
ref: 21
12837-47010
GASKET,TENSIONER ADJUSTER (MCA)
€ 7.50
22
0912806024
ref: 22
09103-06212
SCREW (6X25)
€ 2.50
