REAR COMBINATION LAMP
GS1000 1980 (T) USA (E03)

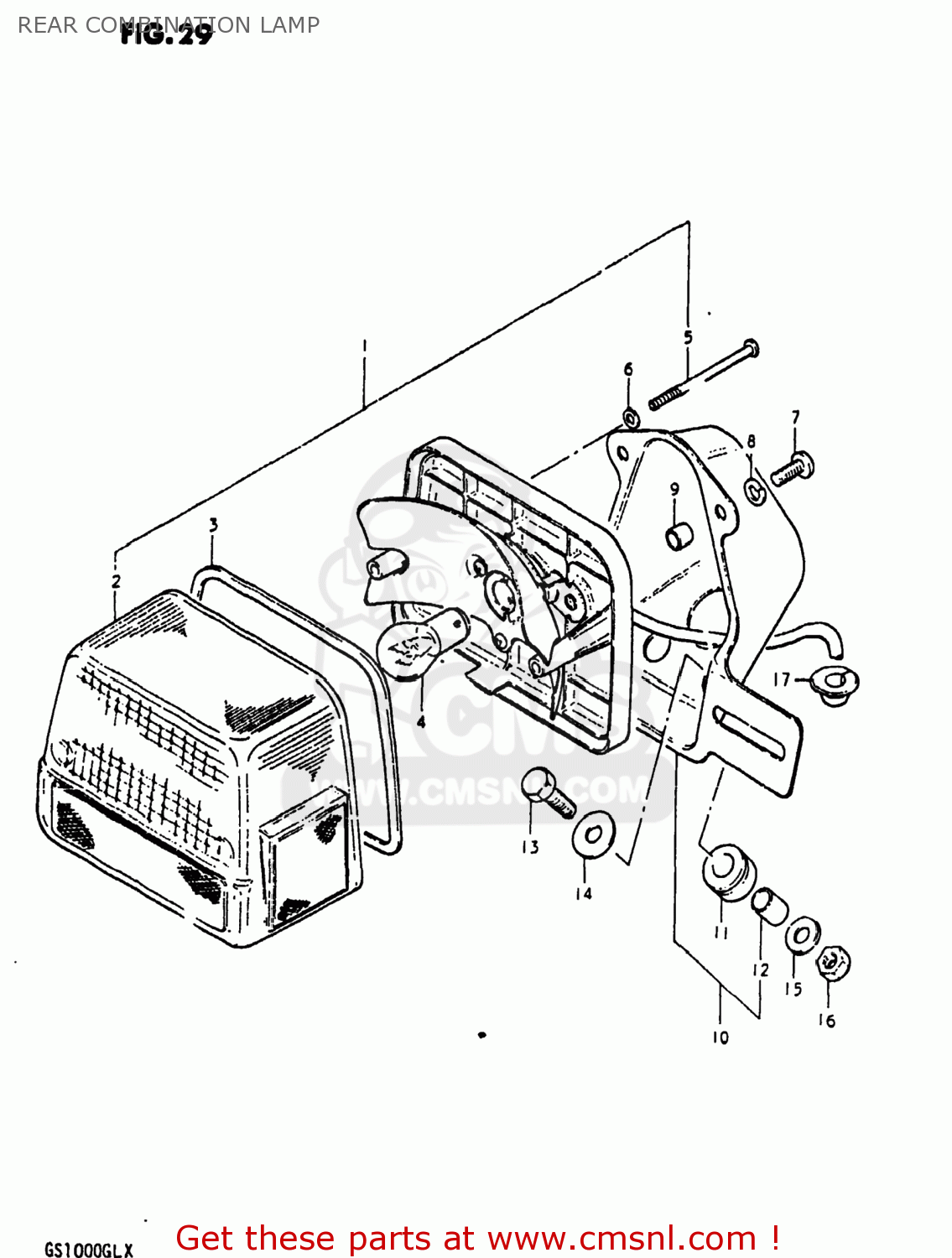

Rear combination lamp diagram GS1000 1980 (T) USA (E03)
REAR COMBINATION LAMP GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3572049130
ref: 1
35720-49130-999
LAMP UNIT,REAR COMBINATION
€ 130.50
2
3571249130
ref: 2
LENS
€ 49.00
3
3571349130
ref: 3
GASKET (NAS)
€ 5.50
4
0947112035
ref: 4
BULB(12V23W)
€ 5.50
5
3572344130
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0211205168
ref: 7
02112-05167
SCREW
€ 2.50
8
0832121058
ref: 8
08321-0105A
LOCK WASHER
€ 2.00
9
3576639210
ref: 9
SPACER
€ 0.00
10
3573049130
ref: 10
BRACKET UNIT,TAIL LAMP
€ 0.00
11
3576522210
ref: 11
CUSHION
€ 4.00
12
3576637120
ref: 12
SPACER
€ 2.50
13
0110706258
ref: 13
01500-06257
BOLT
€ 2.00
14
0916006027
ref: 14
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0831011068
ref: 16
08310-00067
NUT
€ 2.50
17
0930807004
ref: 17
GROMMET
€ 2.50
