REAR SWINGING ARM (MODEL T)
GS1000 1980 (T) USA (E03)

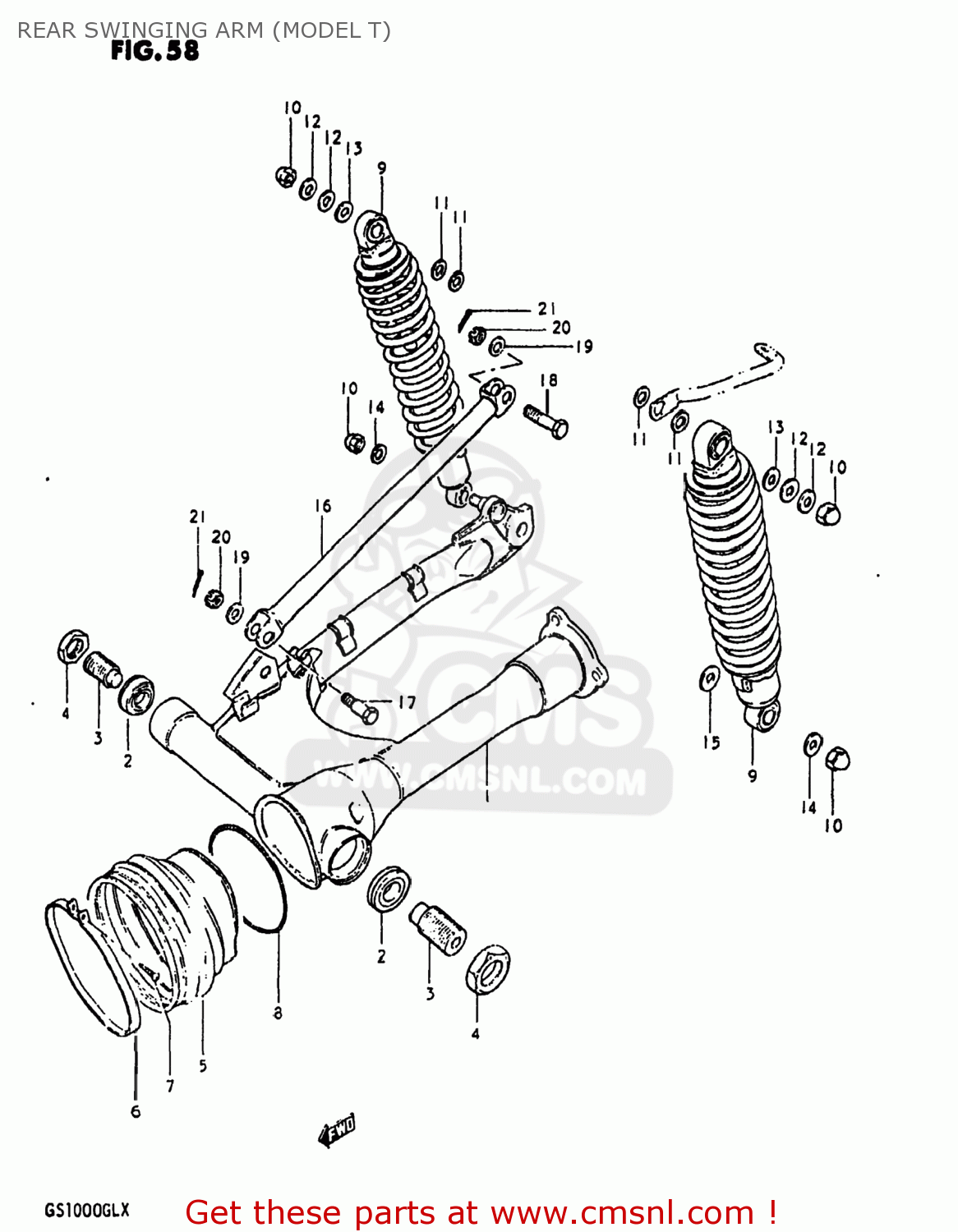

Rear swinging arm (model t) diagram GS1000 1980 (T) USA (E03)
REAR SWINGING ARM (MODEL T) GS1000 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110045821019
ref: 1
SWING ARM ASSEMBLY,REAR
€ 0.00
2
0926517012
ref: 2
BEARING(17X40X13.25)
€ 35.00
3
6121345101
ref: 3
BOLT,REAR SWING ARM PIVOT
€ 16.00
4
0914024007
ref: 4
NUT
€ 4.50
5
6137245102
ref: 5
BOOT,PROPELLER SHAFT
€ 23.00
6
0940200304
ref: 6
09402-00303
CLAMP
€ 5.00
7
0321104255
ref: 7
03211-0425B
SCREW 4X25
€ 2.00
8
6137345100
ref: 8
61373-4510V
SPRING,PROPELLER SHAFT
€ 9.00
9
6210045120
ref: 9
62100-45301
ABSORBER ASSEMBLY,REAR SHOCK
€ 372.50
10
0831311108
ref: 10
08313-10107
NUT, LOWER LH
€ 2.50
11
0832211128
ref: 11
08322-01127
WASHER
€ 2.00
12
0916010001
ref: 12
09160-10093
WASHER
€ 2.00
13
0916010033
ref: 13
09160-10128-XC0
WASHER(10.5X24X3.2)
€ 2.00
14
0916010001
ref: 14
09160-10093
WASHER
€ 2.00
15
0832211128
ref: 15
08322-01127
WASHER
€ 2.00
16
6431045100019
ref: 16
LINK,REAR TORQUE
€ 29.00
17
0911110020
ref: 17
BOLT
€ 0.00
18
0910110017
ref: 18
BOLT(10X39)
€ 5.00
19
0832211108
ref: 19
08322-01107
WASHER
€ 2.50
20
0831441108
ref: 20
08314-4010B
NUT
€ 2.50
21
0411120208
ref: 21
04111-2020A
PIN 20X20
€ 1.50
