CARBURETOR
GS1100G 1982 (Z) GENERAL EXPORT (E01)

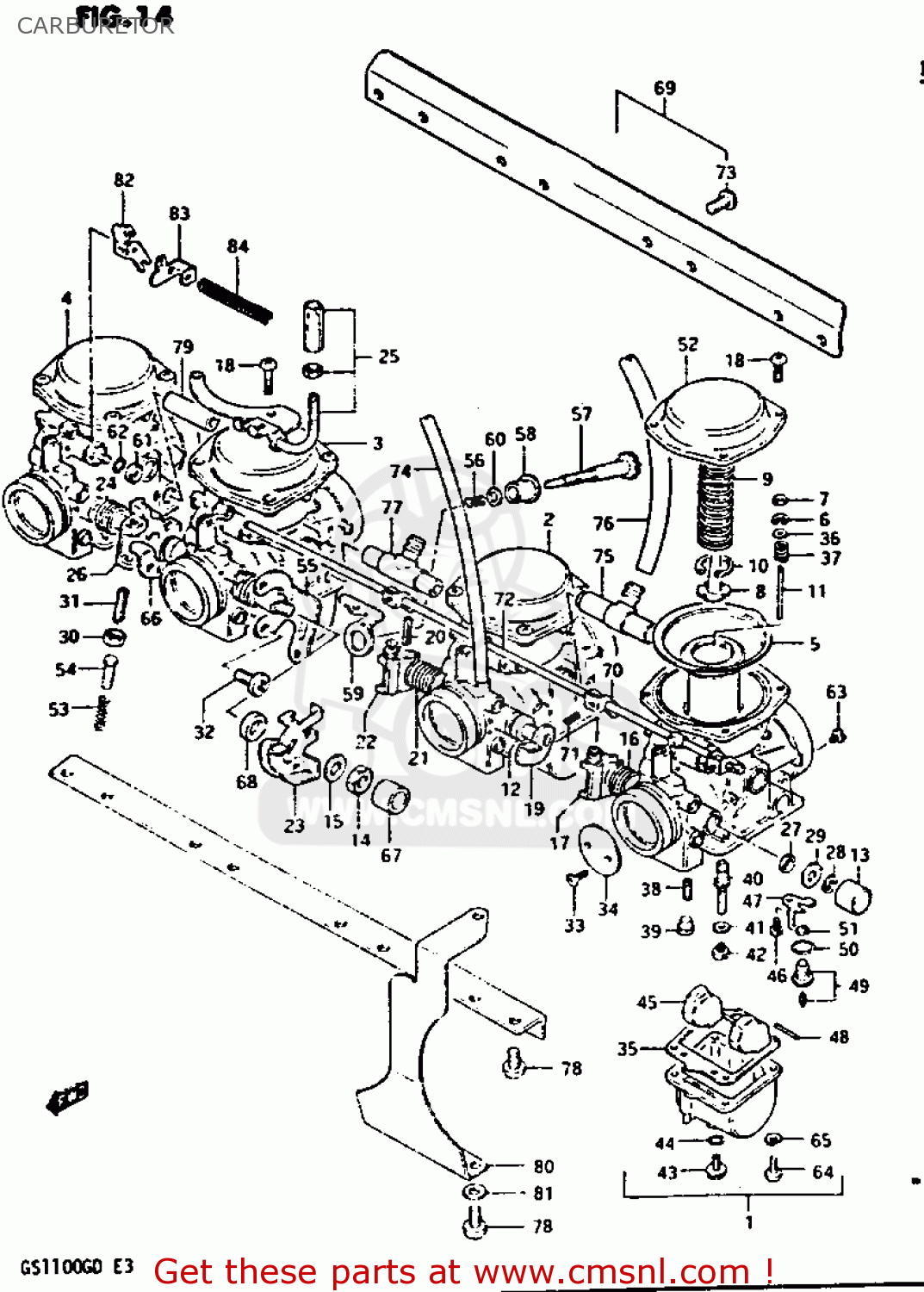

Carburetor diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)
CARBURETOR GS1100G 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1320149400
ref: 1
LH
CARBURETOR ASSEMBLY
€ 0.00
2
1320249400
ref: 2
ML
CARBURETOR ASSEMBLY
€ 0.00
3
1320349400
ref: 3
MR
CARBURETOR ASSEMBLY
€ 0.00
4
1320449400
ref: 4
RH
CARBURETOR ASSEMBLY
€ 0.00
5
1350038310
ref: 5
DIAPHRAGM ASSY
€ 168.00
6
1339431210
ref: 6
CLIP,NEEDLE
€ 3.50
7
1338744030
ref: 7
RING
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350344080
ref: 9
SPRING
€ 11.50
10
1358144030
ref: 10
E RING
€ 6.50
11
1338349200
ref: 11
NEEDLE,JET
€ 0.00
12
1355749200
ref: 12
ML,MR
GASKET
€ 7.00
13
1357847070
ref: 13
RH,LH
CAP
€ 5.50
14
0831000087
ref: 14
MR
NUT
€ 2.00
15
1360647070
ref: 15
MR
WASHER
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
€ 6.00
17
1355049200
ref: 17
LH
SHAFT,THROTTLE
€ 0.00
18
0211205168
ref: 18
SCREW
€ 2.50
19
1355049210
ref: 19
ML
SHAFT,THROTTLE
€ 0.00
20
1356347070
ref: 20
LH,ML,RH
PIN,THROTTLE SHAFT
€ 0.00
21
1357345110
ref: 21
ML
SPRING,THROTTLE SHAFT
€ 0.00
22
1355347070
ref: 22
ML
LEVER,THROTTLE SHAFT
€ 0.00
23
1355547070
ref: 23
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
24
1357347080
ref: 24
MR,RH
SPRING,THROTTLE SHAFT
€ 0.00
25
1362149220
ref: 25
RH
BRACKET,THROTTLE CABLE
€ 13.50
26
1355049200
ref: 26
RH
SHAFT,THROTTLE
€ 0.00
27
1365151010
ref: 27
SEAL
€ 4.00
28
1361744080
ref: 28
LH,RH
E RING
€ 3.50
29
1355747070
ref: 29
LH,RH
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
30
1360747070
ref: 30
LH,ML,RH
NUT
€ 4.00
31
1360547080
ref: 31
LH,ML,RH
SCREW
€ 7.00
32
1360545420
ref: 32
MR
SCREW
€ 2.00
33
1360444080
ref: 33
SCREW
€ 3.50
34
1355149150
ref: 34
VALVE,THROTTLE
€ 0.00
35
1325144080
ref: 35
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
36
1338244030
ref: 36
WASHER
€ 3.50
37
1338844030
ref: 37
SPRING
€ 6.00
38
0949240007
ref: 38
JET,PILOT
€ 17.50
39
1335744080
ref: 39
PLUG,NEEDLE JET
€ 4.50
40
0949400358
ref: 40
JET,NEEDLE
€ 0.00
41
1333244080
ref: 41
WASHER,NEEDLE NOZZLE
€ 2.50
42
0949123011
ref: 42
JET,MAIN(115)
€ 10.50
43
1324744080
ref: 43
PLUG,DRAIN
€ 9.50
44
1324644080
ref: 44
GASKET (NAS)
€ 3.50
45
1325044080
ref: 45
FLOAT
€ 31.00
46
0211204068
ref: 46
SCREW 4X6
€ 2.00
47
1337311400
ref: 47
PLATE,NEEDLE VALVE FITING
€ 7.00
48
1325492311
ref: 48
PIN,FLOAT
€ 2.00
49
1337044500
ref: 49
VALVE ASSY,NEEDLE
€ 40.50
50
1337444080
ref: 50
O-RING,NEEDLE VALVE
€ 6.00
51
1337684110
ref: 51
FILTER
€ 6.50
52
1350249250
ref: 52
COVER,DIAPHRAGM
€ 24.50
53
1326844010
ref: 53
LH,ML,RH
SPRING,THROTTLE SCREW
€ 3.00
54
1357547070
ref: 54
LH,ML,RH
PIN,THROTTLE LEVER
€ 2.50
55
1362745110
ref: 55
MR
BRACKET,THROTTLE ADJUST
€ 0.00
56
1327193011
ref: 56
MR
SPRING
€ 4.50
57
1326747070
ref: 57
MR
SCREW
€ 21.00
58
1327631210
ref: 58
MR
BUSH
€ 4.00
59
1362744090
ref: 59
MR
BRACKET,THROTTLE ADJUST
€ 0.00
60
1343247090
ref: 60
MR
WASHER
€ 2.50
61
1368231210
ref: 61
CAP,STARTER VALVE
€ 5.00
62
1327847090
ref: 62
O RING
€ 2.00
63
0949334001
ref: 63
JET,AIR
€ 6.50
64
0211205168
ref: 64
SCREW
€ 2.50
65
0832121057
ref: 65
LOCK WASHER
€ 2.00
66
1355049230
ref: 66
MR
SHAFT,THROTTLE
€ 0.00
67
1357449200
ref: 67
ML
RING
€ 0.00
68
1357445120
ref: 68
MR
RING
€ 2.50
69
1321049410
ref: 69
CARBURETOR ASSEMBLY
€ 0.00
70
1342244080
ref: 70
LEVER
€ 10.00
71
1360548B00
ref: 71
SCREW
€ 5.50
72
1341049200
ref: 72
SHAFT,STARTER
€ 29.00
73
0214205128
ref: 73
SCREW
€ 1.50
74
1368345110
ref: 74
HOSE
€ 14.00
75
1368549210
ref: 75
NIPPLE
€ 16.50
76
1368349160
ref: 76
HOSE,CARBURETOR
€ 26.00
77
1368549200
ref: 77
NIPPLE
€ 26.50
78
0211206167
ref: 78
SCREW
€ 2.50
79
1368547070
ref: 79
NIPPLE
€ 25.00
80
1361949160
ref: 80
CLAMP
€ 0.00
81
1361549200
ref: 81
WASHER
€ 0.00
82
1342149220
ref: 82
PLATE,CHOKE CABLE
€ 3.00
83
1341349220
ref: 83
LEVER,CHOKE CABLE
€ 4.00
84
1343749220
ref: 84
SPRING,CHOKE CABLE
€ 0.00
