STEERING STEM (MODEL D)

GS1100G 1982 (Z) GENERAL EXPORT (E01)

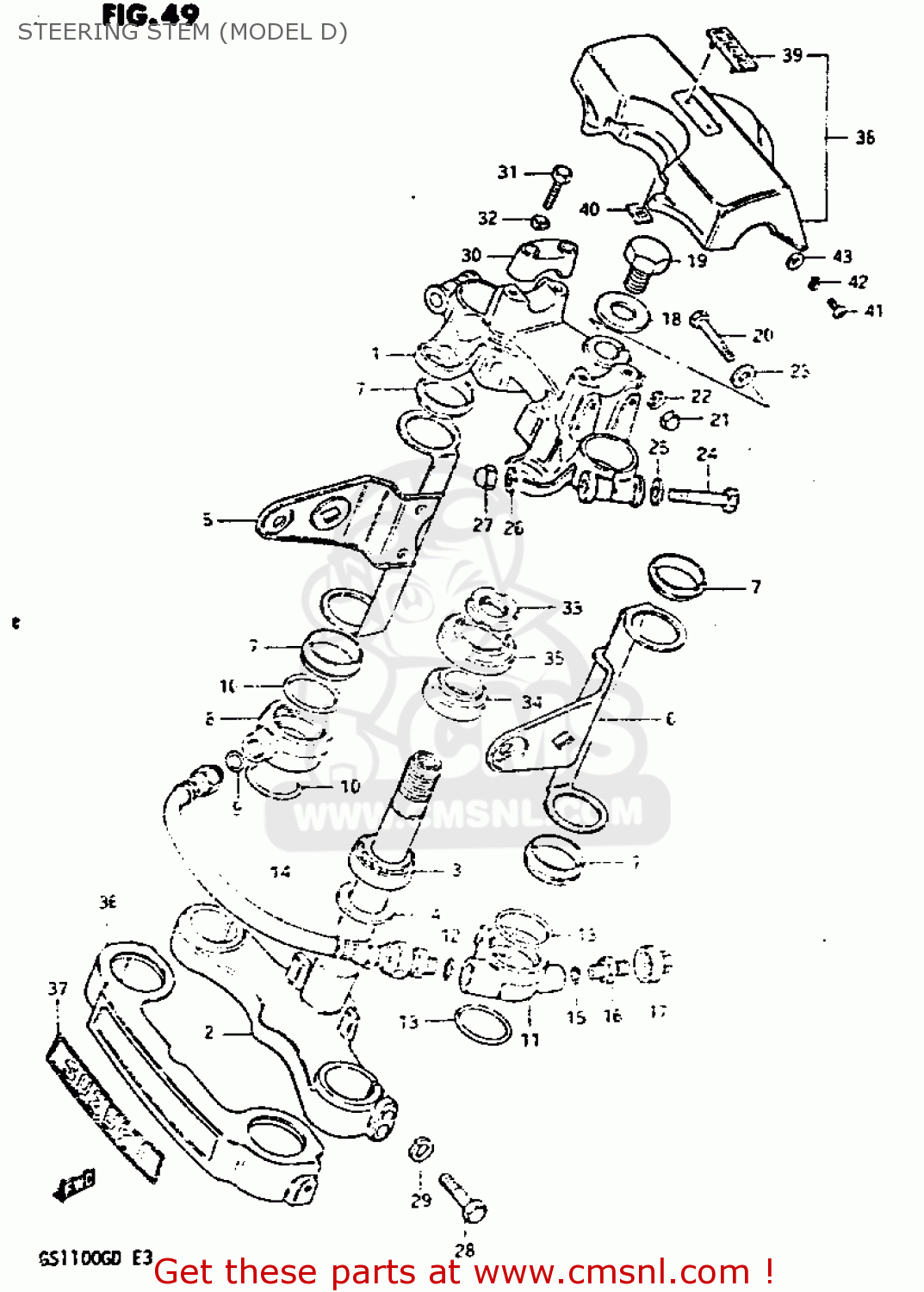

Steering stem (model d) diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)

STEERING STEM (MODEL D) GS1100G 1982 (Z) GENERAL EXPORT (E01)
STEERING STEM (MODEL D) GS1100G 1982 (Z) GENERAL EXPORT (E01)
STEERING STEM (MODEL D) GS1100G 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5131149400291
ref: 1
HEAD,STEERING STEM
€ 198.50
2
5141049430291
ref: 2
STEM,STEERING
€ 249.00
3
0926530009
ref: 3
BEARING(30X55X17)
0926530009
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153049470
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 0.00
6
5154049470
ref: 6
BRACKET,HEADLAMP,LEFT
€ 0.00
7
5155349000
ref: 7
CUSHION,HEADLAMP BRACKET
5155349000
€ 4.50
8
5143149470
ref: 8
JOINT,AIR,RIGHT
€ 0.00
9
5111714210
ref: 9
O-RING
5111714210
€ 2.50
10
5135634370
ref: 10
O RING
5135634370
€ 5.00
11
5143249470
ref: 11
JOINT,AIR,LEFT
€ 0.00
12
5111714210
ref: 12
O-RING
5111714210
€ 2.50
13
5135634370
ref: 13
O RING
5135634370
€ 5.00
14
5143349471
ref: 14
HOSE
€ 0.00
15
5111714210
ref: 15
O-RING
5111714210
€ 2.50
16
5129349470
ref: 16
VALVE,FRONT FORK AIR
€ 8.50
17
5129449000
ref: 17
CAP,VALVE
5129449000
€ 22.50
18
5135649400
ref: 18
WASHER,STEERING STEM
€ 4.00
19
5135345380
ref: 19
NUT,STEM HEAD
€ 8.50
20
0110708508
ref: 20
BOLT 8X50
€ 3.00
21
0831311088
ref: 21
NUT
0831311088
€ 2.50
22
0832121088
ref: 22
LOCK WASHER
0832121088
€ 2.00
23
0832221088
ref: 23
WASHER
0832221088
€ 2.00
24
0110710558
ref: 24
BOLT 10X55
0110710558
€ 3.50
25
0832221108
ref: 25
WASHER
0832221108
€ 2.50
26
0832121107
ref: 26
WASHER,LOCK,10
0832121107
€ 2.00
27
0831310107
ref: 27
NUT
0831310107
€ 2.50
28
0110708358
ref: 28
BOLT
0110708358
€ 3.50
29
0832121088
ref: 29
LOCK WASHER
0832121088
€ 2.00
30
5621129320291
ref: 30
HOLDER,HANDLE(BLACK)
5621129320291
€ 12.00
31
0110708358
ref: 31
BOLT
0110708358
€ 3.50
32
0832121088
ref: 32
LOCK WASHER
0832121088
€ 2.00
33
5163134200
ref: 33
NUT,STEERING STEM
5163134200
€ 23.00
34
0926525008
ref: 34
TAPER,ROLLER BEARING
0926525008
€ 48.50
35
5164340502
ref: 35
DUST SEAL,STEERING UPR
5164340502
€ 8.00
36
5187045700
ref: 36
COVER,FRONT FORK
€ 0.00
37
6821149420
ref: 37
EMBLEM,FRONT FORK COVER
6821149420
€ 16.50
38
5617049400
ref: 38
PAD,HANDLEBAR
5617049400
€ 36.00
39
6828145100
ref: 39
EMBLEM,HANDLE COVER PAD
6828145100
€ 14.00
40
0914803002
ref: 40
NUT
0914803002
€ 3.00
41
0211205107
ref: 41
SCREW
0211205107
€ 2.00
42
0832121057
ref: 42
LOCK WASHER
0832121057
€ 2.00
43
0832221057
ref: 43
WASHER
0832221057
€ 2.50
