GS1100G 1982 (Z) GENERAL EXPORT (E01)

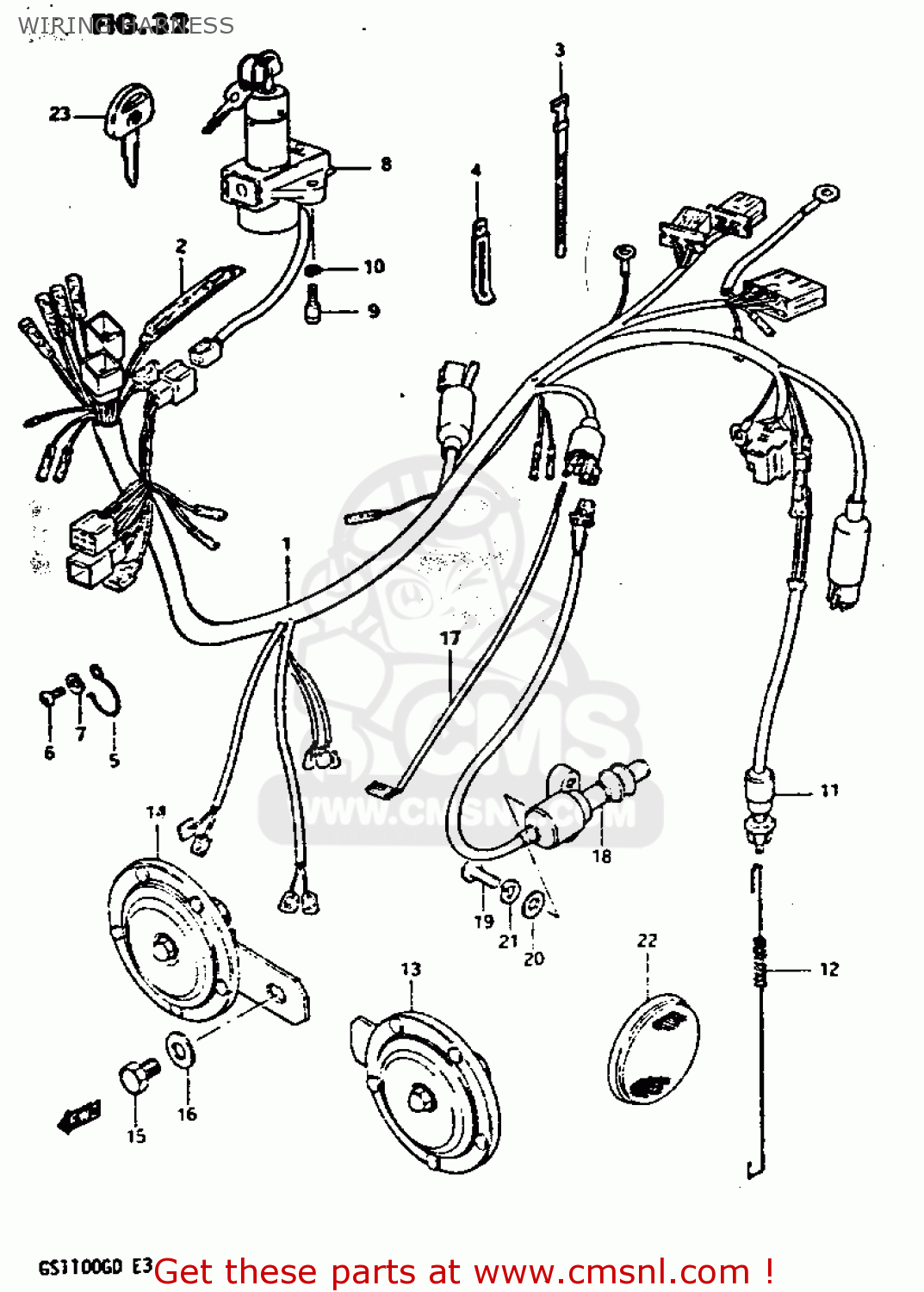

Wiring harness diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)
WIRING HARNESS GS1100G 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661049420
ref: 1-1
MODEL Z
HARNESS,WIRING
€ 149.50
1-2
3661049250
ref: 1-2
MODEL D
HARNESS,WIRING
€ 87.00
2
3661102100
ref: 2
DIODE
€ 6.00
3
0940712402
ref: 3
CLAMP(L:120)
€ 3.00
4-1
0940406415
ref: 4-1
CLAMP
€ 3.00
4-2
0940406415
ref: 4-2
CLAMP
€ 3.00
4-3
0940406419
ref: 4-3
CLAMP
€ 2.50
5
3661944002
ref: 5
CLIP,WIRING HARNESS
€ 2.50
6
0211206128
ref: 6
SCREW 6X12
€ 2.00
7
0832201067
ref: 7
WASHER
€ 2.00
8
3710049201
ref: 8
SWITCH ASSY,IGNITION
€ 141.00
9
0711006165
ref: 9
BOLT
€ 3.00
10
0832101067
ref: 10
WASHER,LOCK
€ 2.50
11
3774048071
ref: 11
SWITCH ASSY,STOP LAMP
€ 22.00
12
0944306018
ref: 12
SPRING
€ 4.50
13
3850249420
ref: 13
HORN ASSEMBLY,LOW PITCH
€ 52.50
14
3850149410
ref: 14
HORN ASSEMBLY,HIGH PITCH
€ 52.50
15
0110708168
ref: 15
BOLT
€ 2.00
16
0832211088
ref: 16
WASHER
€ 2.00
17
3685345001
ref: 17
WIRE,OIL PRESSURE SWITCH LEAD
€ 9.50
18
3784014A01
ref: 18
SWITCH ASSY,SIDE STAND WARN
€ 75.00
19
0110705167
ref: 19
BOLT
€ 1.50
20
0832221057
ref: 20
WASHER
€ 2.50
21
0832121057
ref: 21
LOCK WASHER
€ 2.00
22
3595049080
ref: 22
REFLEX REFLECTOR,RR
€ 17.50
23
3714647010
ref: 23
OPT
KEY,BLANK
€ 15.00
