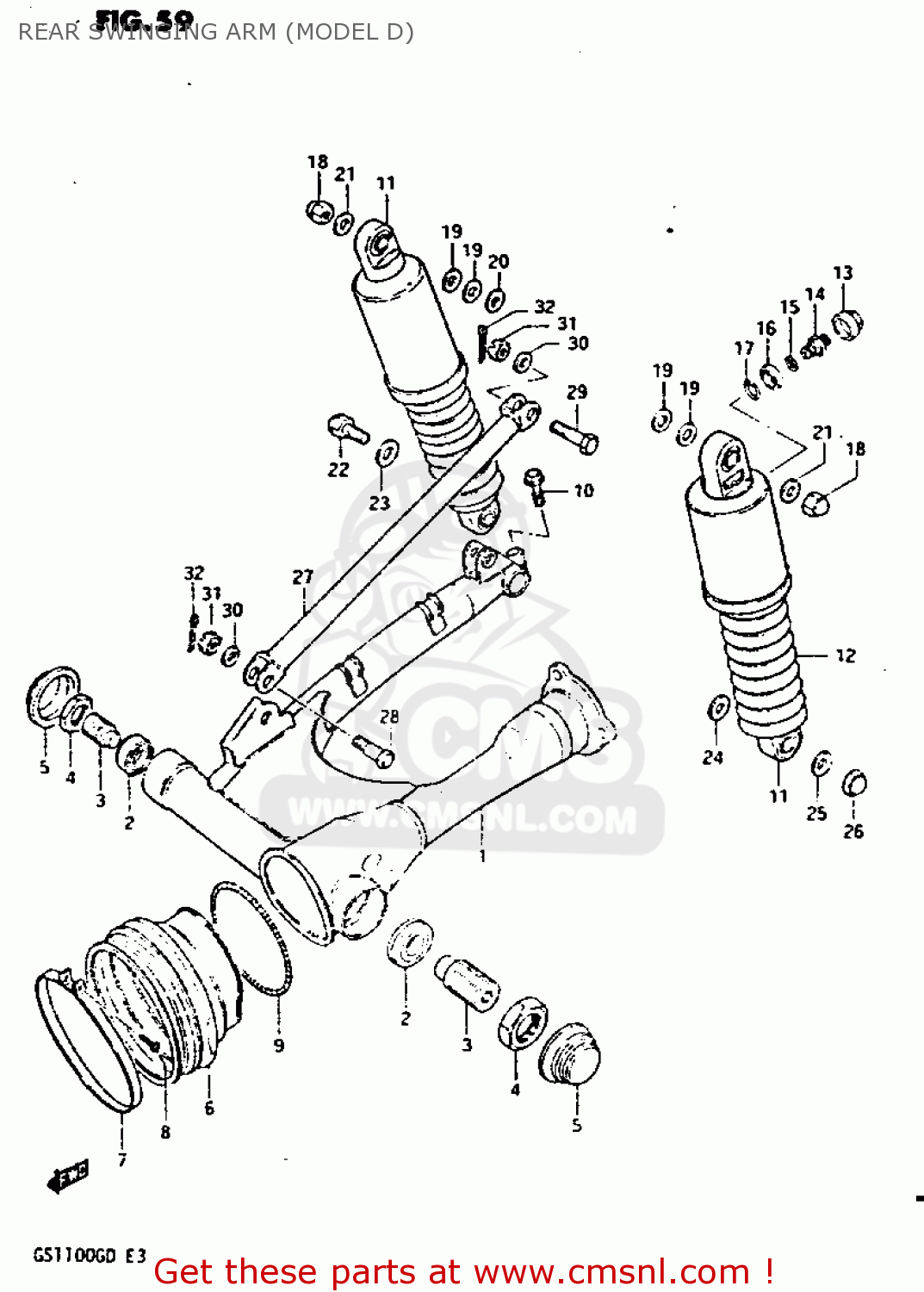

REAR SWINGING ARM (MODEL D)

ref

part #

description

quantity

1

6110045870019
ref: 1

SWING ARM SET,REAR (B

€ 413.50

2

0926517012
ref: 2

BEARING(17X40X13.25)

€ 35.00

3

6121345101
ref: 3

BOLT,REAR SWING ARM PIVOT

€ 16.00

4

0914024007
ref: 4

NUT

€ 4.50

5

6122245100
ref: 5

CAP,REAR SWING ARM PIVOT

€ 9.50

6

6137245300
ref: 6

BOOT,PROPELLER SHAFT

€ 25.50

7

0940200304
ref: 7

CLAMP

€ 5.00

8

0321104255
ref: 8

SCREW 4X25

€ 2.00

9

6137334300
ref: 9

SPRING,PROPELLER SHAFT

€ 6.50

10

0151708258
ref: 10

BOLT

€ 2.50

11

6210049460
ref: 11

ABSORBER ASSEMBLY,REAR SHOCK

€ 0.00

12

6233349420
ref: 12

BOOT,RR SHOCK

€ 26.50

13

5129449000
ref: 13

CAP,VALVE

€ 22.50

14

5129349470
ref: 14

VALVE,FRONT FORK AIR

€ 8.50

15

5111714210
ref: 15

O-RING

€ 2.50

16

6217749420
ref: 16

SPACER,REAR SHOCK ABSORBER

€ 0.00

17

6217849420
ref: 17

O RING,RR SHOCK

€ 2.50

18

0914510001
ref: 18

NUT

€ 2.50

19

0832211128
ref: 19

WASHER

€ 2.00

20

0916012012
ref: 20

WASHER (12.5X24X3.2)

€ 2.50

21

0916010001
ref: 21

WASHER

€ 2.00

22

0910412014
ref: 22

BOLT 12X33

€ 4.00

23

0916012004
ref: 23

WASHER (12.5X24X1.6)

€ 2.00

24

0832211128
ref: 24

WASHER

€ 2.00

25

0916010001
ref: 25

WASHER

€ 2.00

26

0831310107
ref: 26

NUT

€ 2.50

27

6431045300019
ref: 27

TORQUE LINK,REAR

€ 16.50

28

0911110011
ref: 28

BOLT

€ 8.00

29

0910110017
ref: 29

BOLT(10X39)

€ 5.00

30

0832201107
ref: 30

WASHER

€ 2.50

31

0831441108
ref: 31

NUT

€ 2.50

32

0411120208
ref: 32

PIN 20X20

€ 1.50
