HEADLAMP

GS1100G 1982 (Z) GENERAL EXPORT (E01)

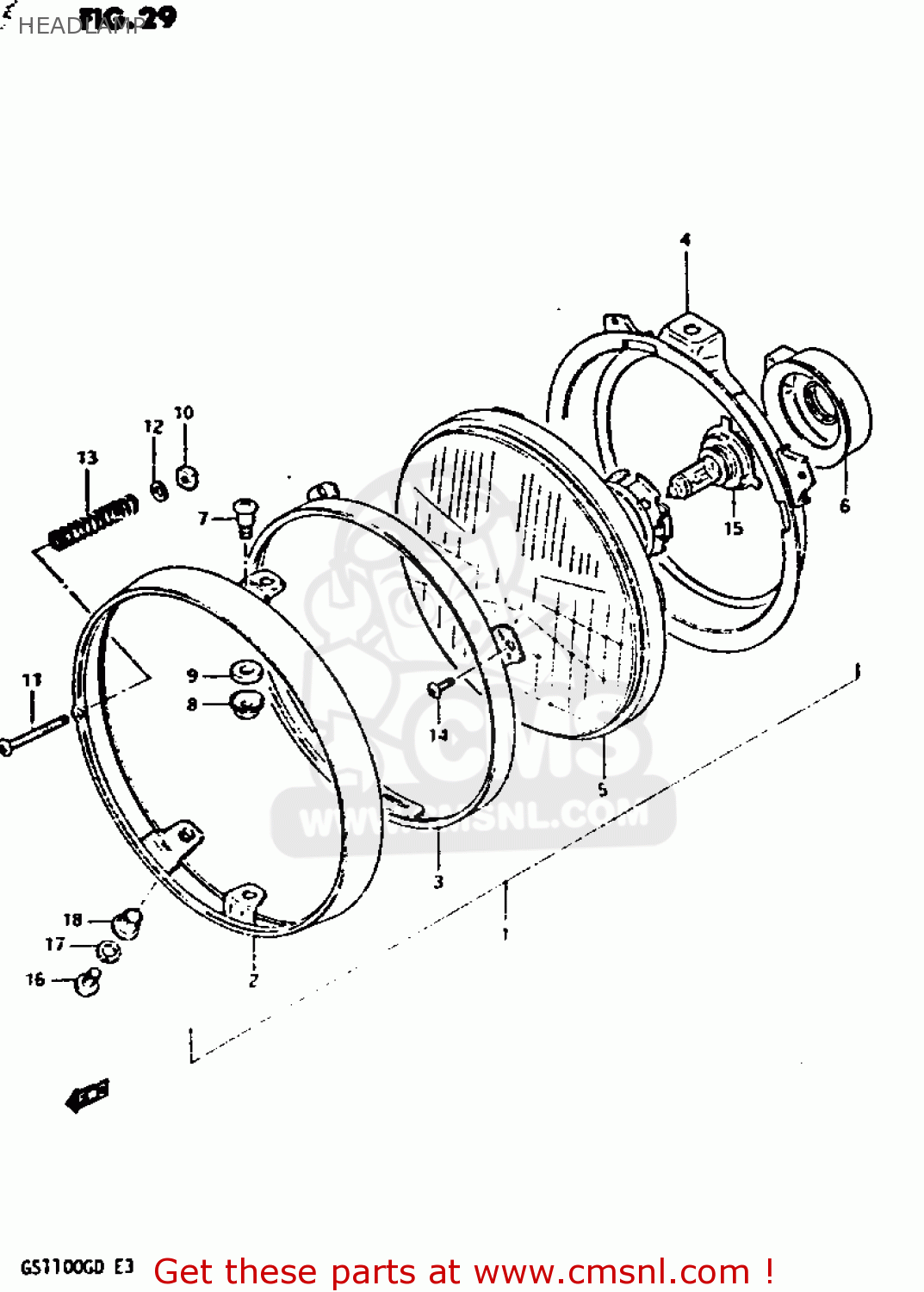

Headlamp diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)

HEADLAMP GS1100G 1982 (Z) GENERAL EXPORT (E01)

HEADLAMP GS1100G 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3510049010999
ref: 1

HEADLAMP ASSEMBLY

€ 88.00

2

3511145600
ref: 2

RIM

€ 57.50

3

3512745600
ref: 3

RETAINER

€ 39.00

4

3513045600
ref: 4

RING,HEADLAMP UNIT

€ 35.00

5

3512149010
ref: 5

LAMP UNIT

€ 136.00

6

3517349020
ref: 6

COVER,HEADLAMP SOCKET

€ 14.00

7

3513625611
ref: 7

SCREW

€ 4.00

8

3513525611
ref: 8

NUT,ADJUSTING

€ 2.50

9

3513345600
ref: 9

SPACER

€ 3.50

10

3513545600
ref: 10

NUT

€ 3.00

11

3515145230
ref: 11

SCREW

€ 3.50

12

3515727630
ref: 12

WASHER

€ 2.50

13

3515445600
ref: 13

SPRING,HEADLAMP ADJUST

€ 3.50

14

0211203087
ref: 14

SCREW

€ 1.50

15

0947112060
ref: 15
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

16

0912505022
ref: 16

SCREW

€ 3.50

17

0916205003
ref: 17

WASHER,LOCK

€ 2.00

18

0916906021
ref: 18

WASHER

€ 2.50
