FOOTREST (MODEL Z)

GS1100G 1982 (Z) GENERAL EXPORT (E01)

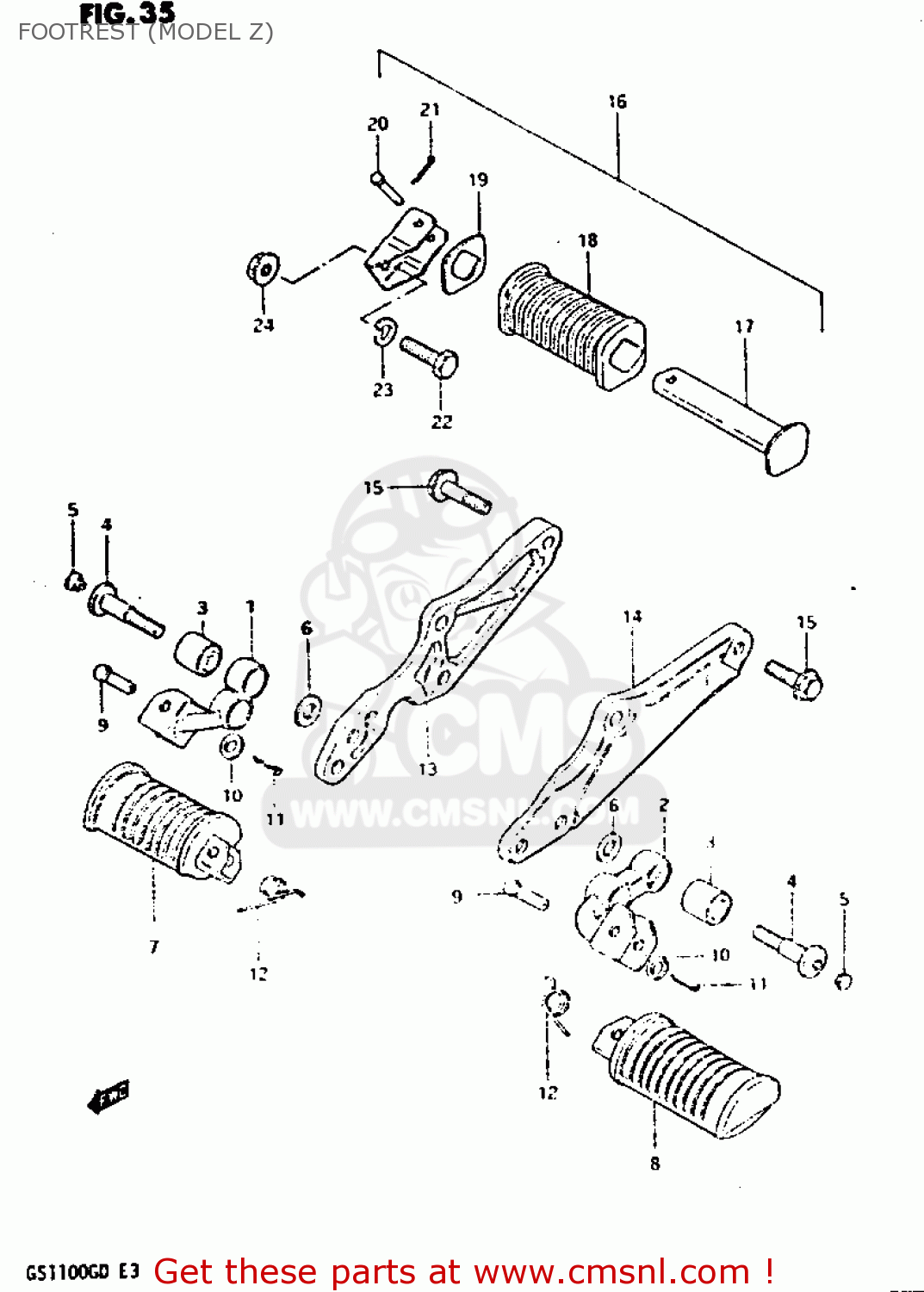

Footrest (model z) diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)

FOOTREST (MODEL Z) GS1100G 1982 (Z) GENERAL EXPORT (E01)
FOOTREST (MODEL Z) GS1100G 1982 (Z) GENERAL EXPORT (E01)
FOOTREST (MODEL Z) GS1100G 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
4351049401
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 36.50
2
4352049401
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 38.00
3
0931910008
ref: 3
BUSH
0931910008
€ 8.00
4
0910610010
ref: 4
BOLT(10X50)
0910610010
€ 44.00
5
4357534500
ref: 5
CAP
4357534500
€ 1.50
6
0916010005
ref: 6
WASHER(10.5X20X3.2)
0916010005
€ 2.00
7
4355037301
ref: 7
RUBBER,PILLION FOOTREST,R
4355037301
€ 22.50
8
4356037301
ref: 8
RUBBER,PILLION FOOTREST,L
4356037301
€ 22.50
9
0920008002
ref: 9
PIN
0920008002
€ 2.00
10
0832211088
ref: 10
WASHER
0832211088
€ 2.00
11
0411120208
ref: 11
PIN 20X20
0411120208
€ 1.50
12
0944814012
ref: 12
SPRING
0944814012
€ 3.00
13
4381149400
ref: 13
BRACKET,MUFFLER,RIGHT
4381149400
€ 84.00
14
4382149400
ref: 14
BRACKET,MUFFLER,LEFT
€ 84.00
15
0151710257
ref: 15
BOLT
0151710257
€ 3.00
16-1
4360049402
ref: 16-1
FOOTREST ASSEMBLY,REAR,RIGHT
4360049402
€ 27.50
16-2
4370049402
ref: 16-2
FOOTREST ASSEMBLY,REAR,LEFT
4370049402
€ 23.00
17-1
4361049401
ref: 17-1
BAR,REAR FOOTREST,RIGHT
4361049401
€ 8.50
17-2
4362049401
ref: 17-2
BAR,REAR FOOTREST,LEFT
4362049401
€ 8.50
18
4361249402
ref: 18
RUBBER,RR FOOTREST
4361249402
€ 14.50
19
4363149401
ref: 19
WASHER,RR FOOTREST RUBBER
4363149401
€ 3.00
20
0920006010
ref: 20
PIN
0920006010
€ 2.50
21
0411120208
ref: 21
PIN 20X20
0411120208
€ 1.50
22
0110710358
ref: 22
BOLT,M10X1.25X
0110710358
€ 2.50
23
0832121107
ref: 23
WASHER,LOCK,10
0832121107
€ 2.00
24
0831616108
ref: 24
NUT
0831616108
€ 2.00
