CYLINDER HEAD COVER (MODEL Z)

GS1100G 1982 (Z) GENERAL EXPORT (E01)

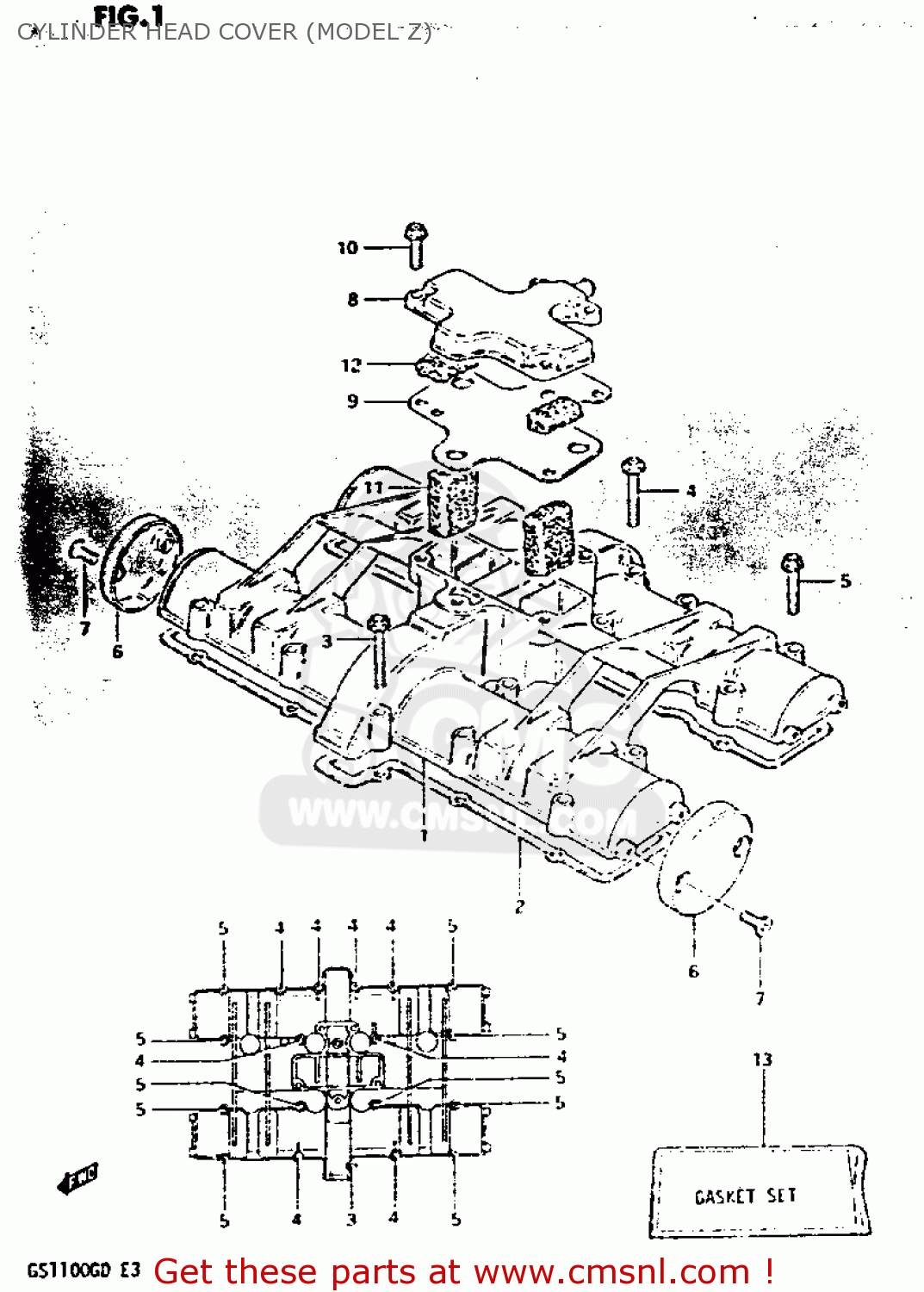

Cylinder head cover (model z) diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)

CYLINDER HEAD COVER (MODEL Z) GS1100G 1982 (Z) GENERAL EXPORT (E01)

CYLINDER HEAD COVER (MODEL Z) GS1100G 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1117149020
ref: 1

COVER,CYLINDER HEAD

€ 146.50

2

1117349022
ref: 2

GASKET,CYL HEAD COVER (NAS)

€ 49.00

3

0151706458
ref: 3

BOLT,UNDER

€ 2.50

4

0151706408
ref: 4

BOLT

€ 2.50

5

0151706358
ref: 5

BOLT 6X35

€ 2.50

6

1117449000
ref: 6

CAP,CYLINDER HEAD COVER

€ 38.00

7

0912705013
ref: 7

SCREW(5X12)

€ 2.50

8

1117647012
ref: 8

COVER,BREATHER

€ 32.50

9

1117747001
ref: 9

GASKET (MCA)

€ 19.50

10

0151706257
ref: 10

BOLT 6X25

€ 2.50

11

1118645000
ref: 11

COVER,BREATHER

€ 5.50

12

1118745001
ref: 12

SEPARATOR,OIL BREATHER

€ 6.50

13

1140149878
ref: 13
OPT

GASKET SET

€ 248.50
