CYLINDER HEAD
GS1100G 1982 (Z) GENERAL EXPORT (E01)

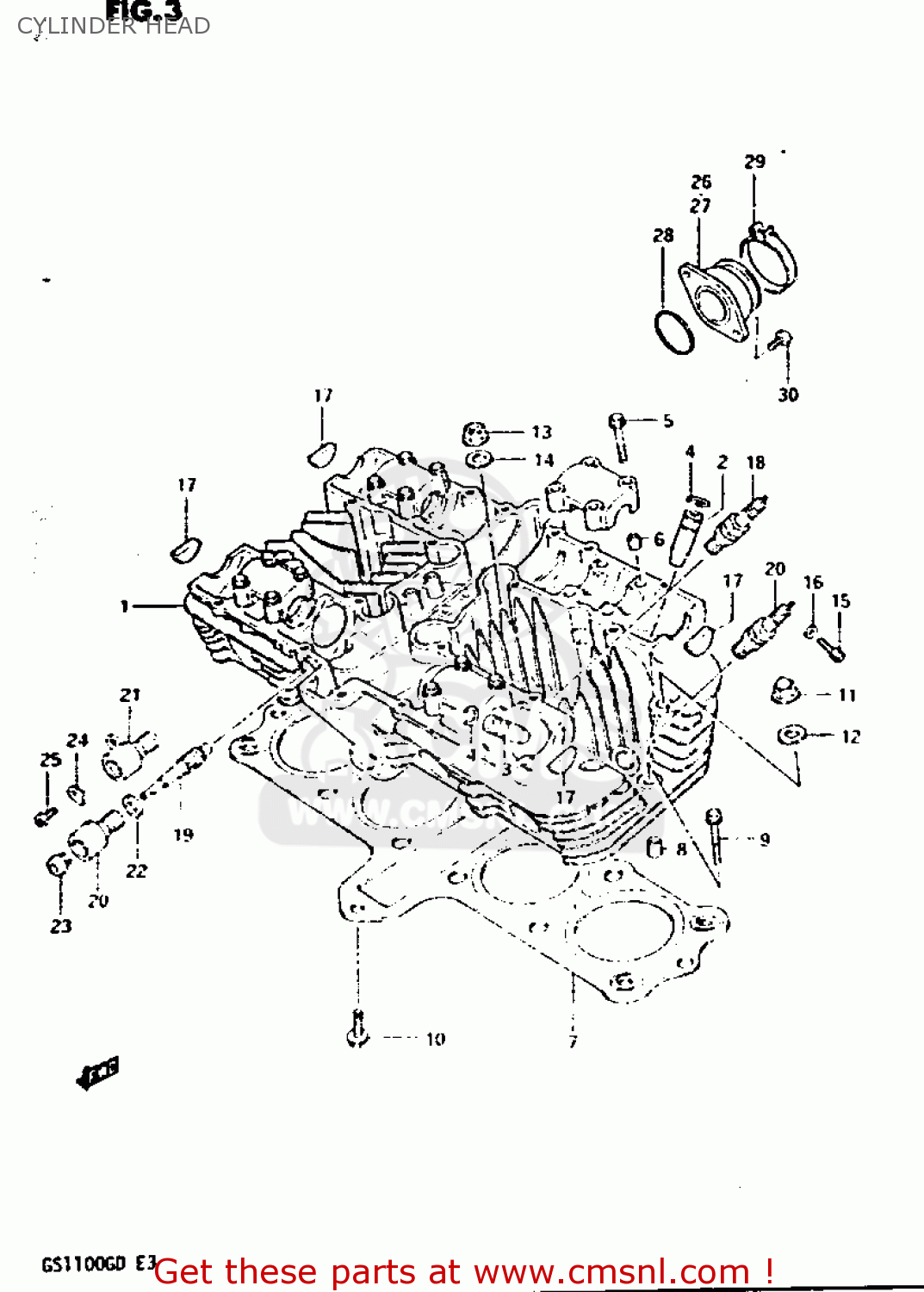

Cylinder head diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)
CYLINDER HEAD GS1100G 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110049021
ref: 1-1
MODEL Z
HEAD ASSEMBLY,CYLINDER
€ 679.50
1-2
1110049060
ref: 1-2
MODEL D
HEAD ASSEMBLY,CYLINDER
€ 569.00
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111645740
ref: 3
GUIDE,EXHAUST VALVE
€ 27.00
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7-1
1114149410
ref: 7-1
MODEL Z
GASKET,CYLINDER HEAD (NAS)
€ 102.50
7-2
1114149410
ref: 7-2
MODEL D
GASKET,CYLINDER HEAD (NAS)
€ 102.50
8
0421111189
ref: 8
PIN
€ 2.00
9-1
0151706458
ref: 9-1
MODEL Z
BOLT,UNDER
€ 2.50
9-2
0151706455
ref: 9-2
MODEL D
BOLT (6X45)
€ 2.50
10-1
0151706307
ref: 10-1
MODEL Z
BOLT
€ 2.00
10-2
0151706305
ref: 10-2
MODEL D
BOLT 6X30
€ 2.50
11
0915910026
ref: 11
NUT
€ 6.00
12
0916810017
ref: 12
GASKET(10.5X22X2) (NAS)
€ 3.50
13
0831616108
ref: 13
NUT
€ 2.00
14
0916010039
ref: 14
WASHER(10.5X22X2.3)
€ 2.50
15
0711005106
ref: 15
SCREW (5X10)
€ 2.00
16
0916805010
ref: 16
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
17
0924123002
ref: 17
PLUG
€ 8.50
18-1
0948200091
ref: 18-1
PLUG,SPARK
€ 3.00
18-2
0948200196
ref: 18-2
SPARK PLUG W24ES-U
€ 3.50
19
2643145002
ref: 19
GEAR,TACHOMETER DRIVEN
€ 43.00
20
2644149000
ref: 20
MODEL Z
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
21
2644149000
ref: 21
MODEL D
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
22
2645145000A
ref: 22
SEAL,TACHOMETER DRIVEN
€ 4.50
23
0928905002
ref: 23
SEAL,OIL(5X12X8)
€ 11.00
24
2644933000
ref: 24
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
25
0912805101
ref: 25
SCREW(5X12)
€ 1.50
26
1311049100
ref: 26
PIPE,INTAKE,R
€ 42.00
27
1312049100
ref: 27
PIPE,INTAKE,L
€ 39.50
28
0928040003
ref: 28
O-RING (D:2.4 ID:39.7)
€ 3.50
29
0940254303
ref: 29
CLAMP
€ 4.00
30-1
0211206167
ref: 30-1
MODEL Z
SCREW
€ 2.50
30-2
0211206164
ref: 30-2
MODEL D
SCREW
€ 2.00
