FRONT MASTER CYLINDER

GS1100G 1982 (Z) GENERAL EXPORT (E01)

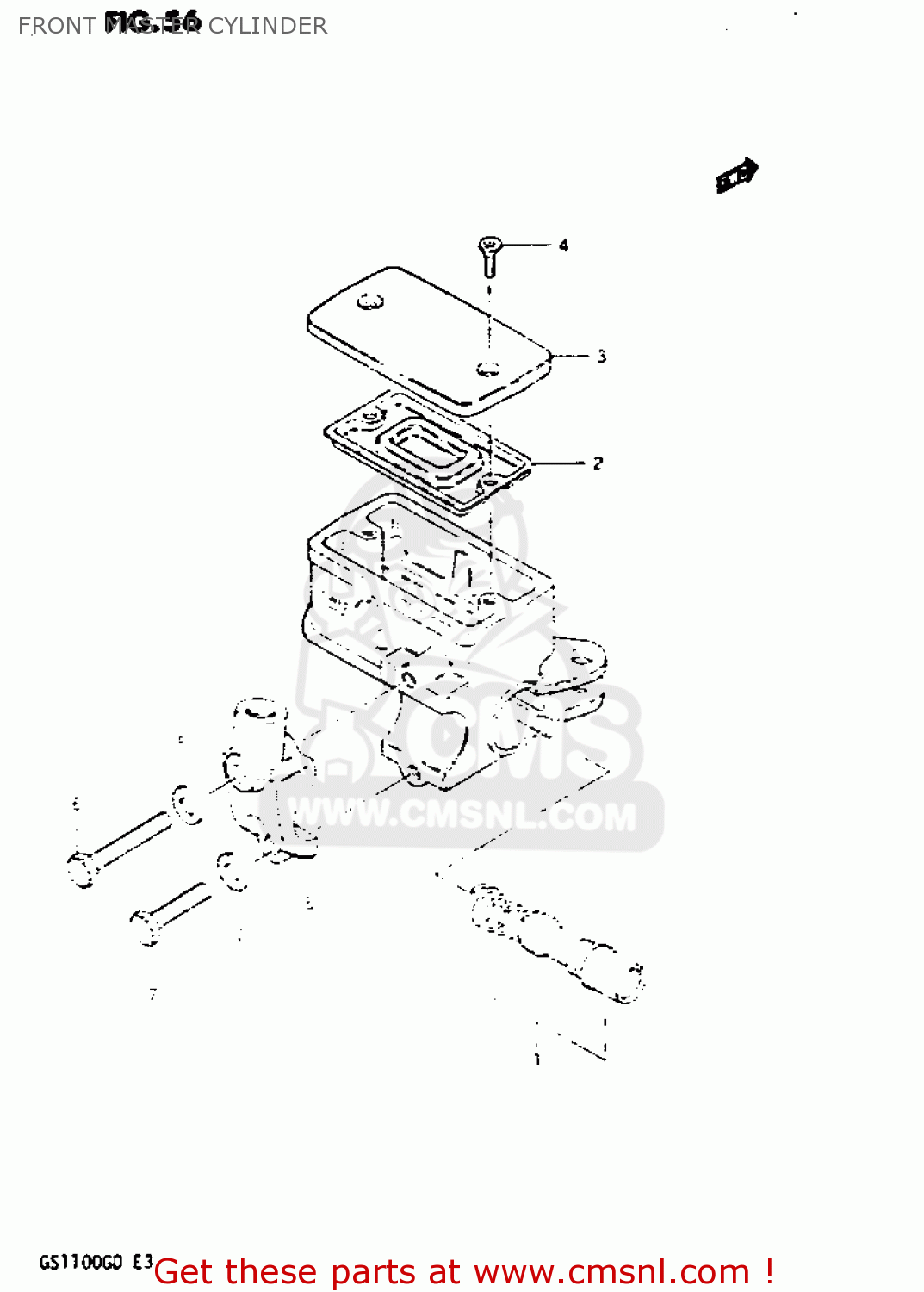

Front master cylinder diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5960049431
ref: 0
MODEL Z

CYLINDER ASSEMBLY,MASTER

€ 256.00

5960049431
ref: 0
MODEL D

CYLINDER ASSEMBLY,MASTER

€ 256.00

5960045831
ref: 1

PISTON & CUP SET

€ 41.50

5966749460
ref: 2

5966749460

5966904A10
ref: 3

CAP

€ 30.00

6968949300
ref: 4

SCREW

€ 1.50

5967144300
ref: 5

HOLDER

€ 14.50

0110706408
ref: 6

BOLT 6X40

€ 2.00

0150006257
ref: 7

BOLT

€ 2.00

0832201067
ref: 8

WASHER

€ 2.00
