STARTING MOTOR

GS1100G 1982 (Z) GENERAL EXPORT (E01)

Starting motor diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)

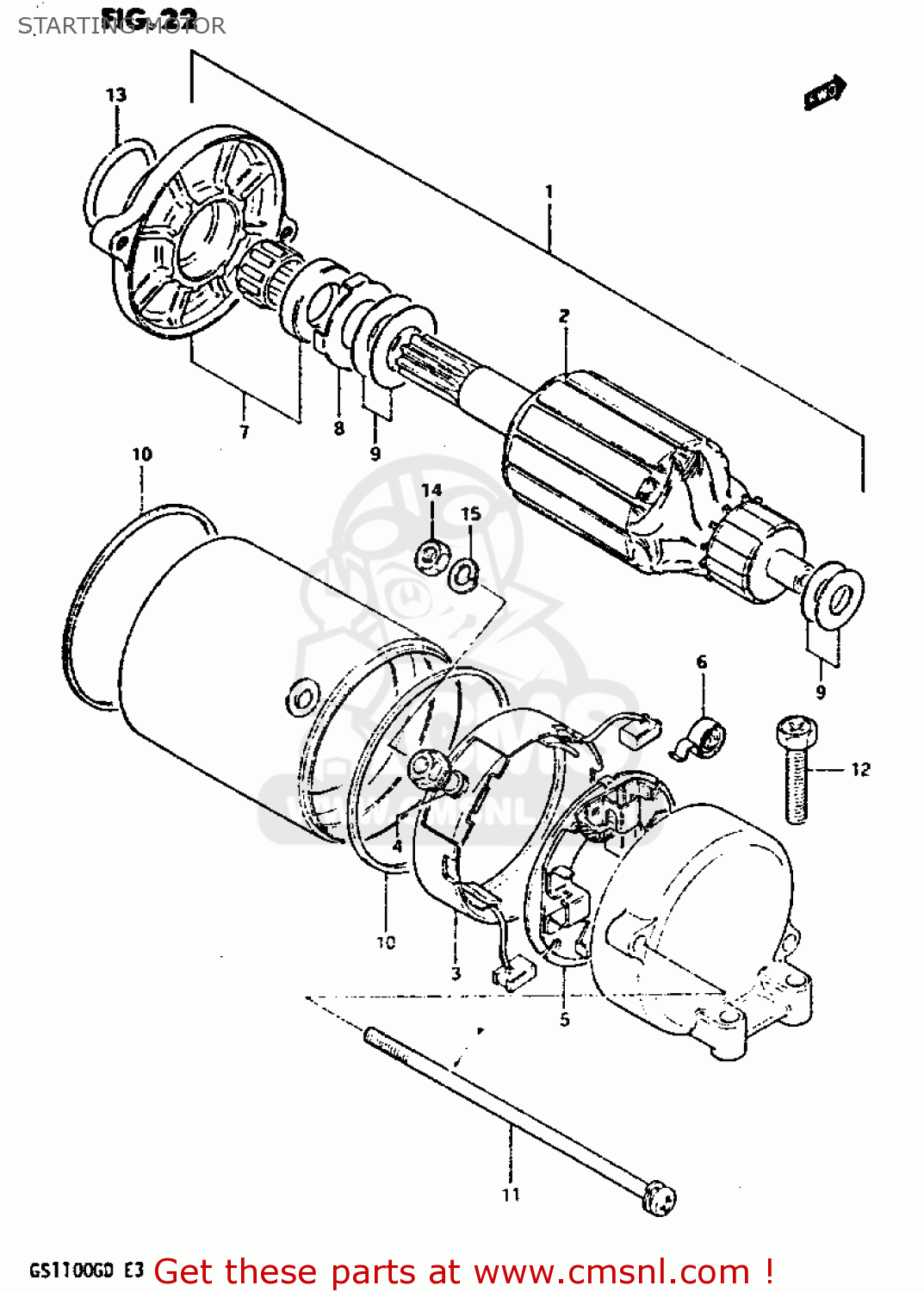

STARTING MOTOR GS1100G 1982 (Z) GENERAL EXPORT (E01)

STARTING MOTOR GS1100G 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3110049050
ref: 1

MOTOR ASSY,STARTING

€ 873.50

2

3131149040
ref: 2

ARMATURE

€ 118.50

3

3113005A00
ref: 3

BRUSH TERMINAL SET

€ 54.00

4

3114349040
ref: 4

O RING

€ 3.00

5

3113205A00
ref: 5

HOLDER,BRUSH

€ 35.50

6

3113549040
ref: 6

SPRING,BRUSH

€ 5.00

7

3110049810
ref: 7

HOUSING SET,STARTING MOTOR

€ 80.50

8

3136049240
ref: 8

SHIM SET

€ 10.50

9

3136049040
ref: 9

SHIM SET

€ 10.50

10

3126449040
ref: 10

SEAL,RING

€ 7.50

11

3128149040
ref: 11

BOLT,STARTING MOTOR HOUSING

€ 7.00

12

0912806024
ref: 12

SCREW (6X25)

€ 2.50

13-1

0928024003
ref: 13-1
MODEL Z

O RING(D:3,ID:24.5)

€ 2.00

13-2

0928024003
ref: 13-2
MODEL D

O RING(D:3,ID:24.5)

€ 2.00

14

0831022067
ref: 14

NUT 6MM

€ 2.50

15

0832101067
ref: 15

WASHER,LOCK

€ 2.50
