MUFFLER
GS1100G 1982 (Z) GENERAL EXPORT (E01)

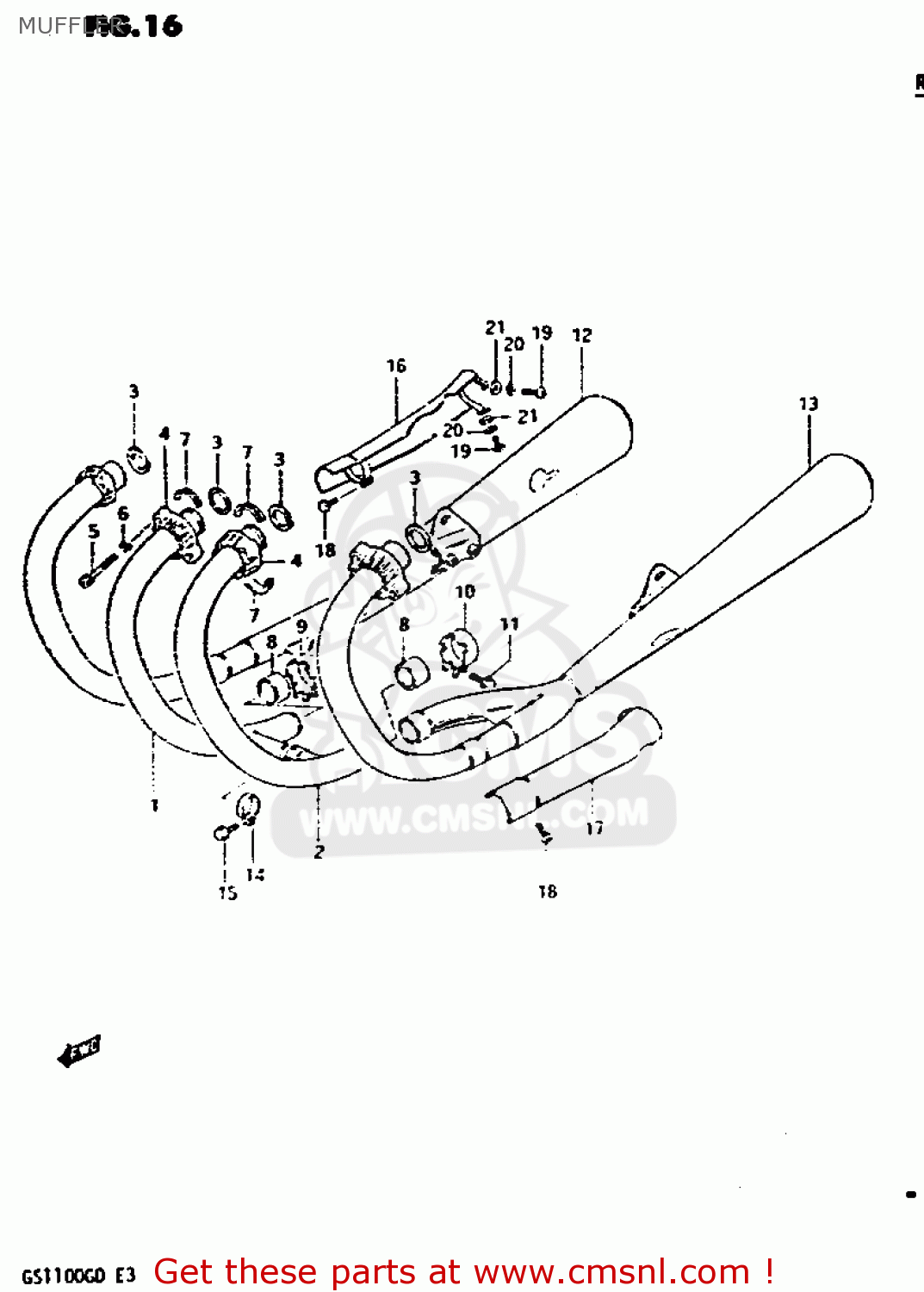

Muffler diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)
MUFFLER GS1100G 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1417049400H01
ref: 1-1
MODEL Z
PIPE,EXHAUST,CENTER,RIGHT
€ 109.00
1-2
1417049400H01
ref: 1-2
MODEL D
PIPE,EXHAUST,CENTER,RIGHT
€ 109.00
2-1
1418049400H01
ref: 2-1
MODEL Z
PIPE,EXHAUST,CENTER,LEFT
€ 123.00
2-2
1418049400H01
ref: 2-2
MODEL D
PIPE,EXHAUST,CENTER,LEFT
€ 123.00
3
1418101D00
ref: 3
GASKET,EXHAUST PIPE (NAS)
€ 8.00
4-1
1418249011
ref: 4-1
CLAMP(H:21)
€ 49.00
4-2
1418249011
ref: 4-2
CLAMP(H:21)
€ 49.00
5-1
0711008455
ref: 5-1
BOLT 8X45
€ 3.00
5-2
0711008407
ref: 5-2
BOLT
€ 3.50
6
0832121088
ref: 6
LOCK WASHER
€ 2.00
7
1415549000A
ref: 7
PLATE,EXHAUST P
€ 9.50
8
1477149010
ref: 8
CONNECTOR,MUFFLER
€ 26.00
9
1445949000
ref: 9
CLAMP,MUFFLER CONNECTOR,R
€ 25.50
10
1446949000
ref: 10
CLAMP,MUFFLER CONNECTOR,L
€ 25.50
11
0151708258
ref: 11
BOLT
€ 2.50
12-1
1430149400H01
ref: 12-1
Model Z
MUFFLER,R
€ 499.50
12-2
1430149440H01
ref: 12-2
Model D
MUFFLER ASSEMBLY
€ 0.00
13-1
1430249400H01
ref: 13-1
Model Z
MUFFLER,L
€ 322.50
13-2
1430249440H01
ref: 13-2
Model D
MUFFLER ASSEMBLY
€ 0.00
14
0940237601
ref: 14
CLAMP
€ 5.50
15
0151706257
ref: 15
BOLT 6X25
€ 2.50
16
1478049400
ref: 16
COVER,MUFFLER,RIGHT
€ 44.00
17
1479049400
ref: 17
COVER,MUFFLER,LEFT
€ 31.50
18
0211205168
ref: 18
SCREW
€ 2.50
19
0211206107
ref: 19
SCREW
€ 1.50
20
0832101067
ref: 20
WASHER,LOCK
€ 2.50
21
0832201067
ref: 21
WASHER
€ 2.00
