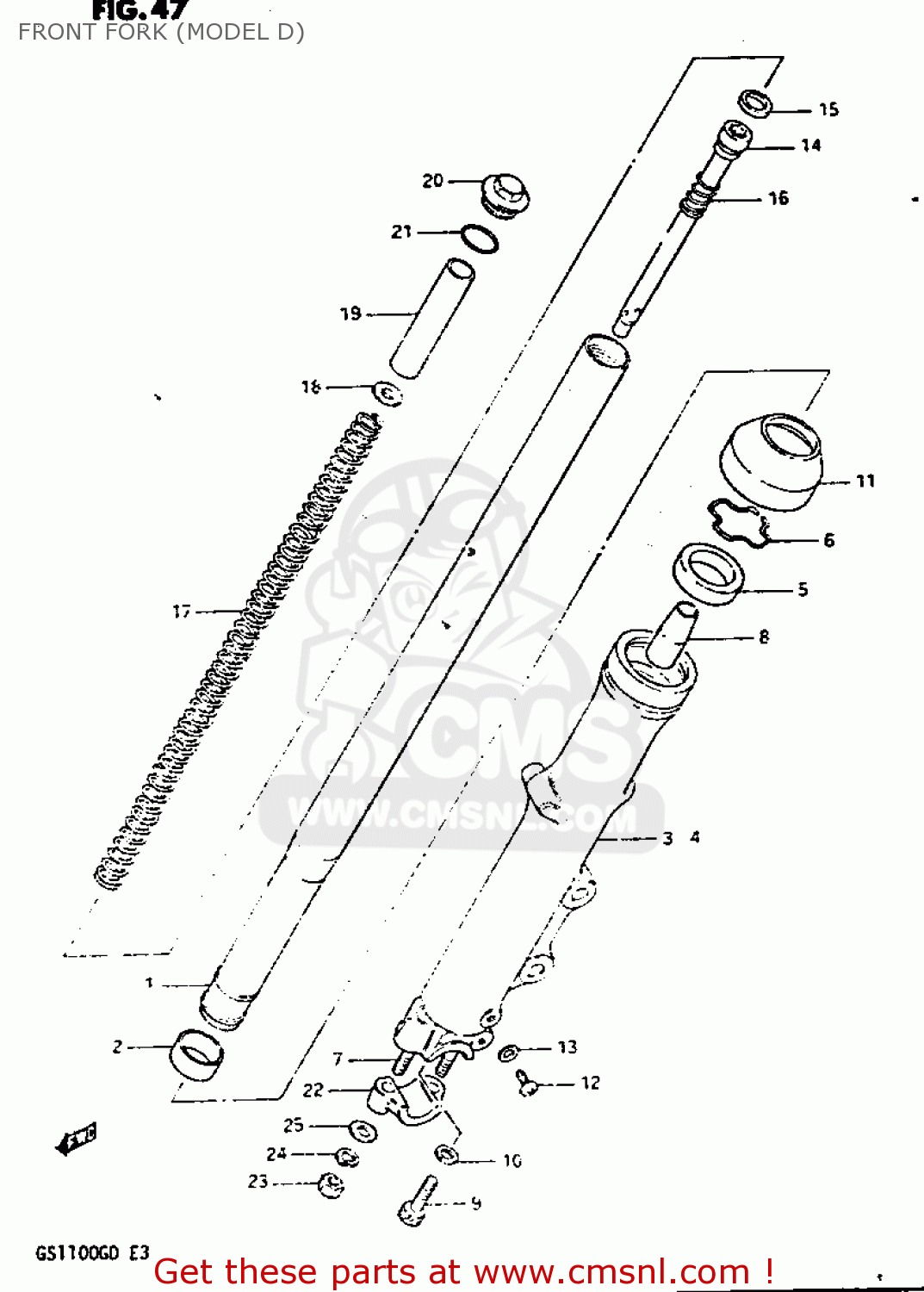

FRONT FORK (MODEL D)

ref

part #

description

quantity

0

5110349470
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 0.00

0

5110449470
ref: 0

DAMPER ASSEMBLY,LEFT

€ 0.00

1

5111049470
ref: 1

TUBE,FORK,INNER

€ 172.50

2

5112149200
ref: 2

PISTON

€ 18.00

3

5113049400
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 218.00

4

5114049400
ref: 4

TUBE,FORK,LEFT,OUTER

€ 239.50

5

5115349001
ref: 5

OIL SEAL,FRONT FORK

€ 16.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

0141108308
ref: 7

STUD 8X30

€ 2.00

8

5119549071
ref: 8

PIECE,OIL LOCK

€ 12.00

9

5114716510
ref: 9

BOLT,FORK CYLINDER(10X25)

€ 3.50

10

5114841310
ref: 10

GASKET (NAS)

€ 2.50

11

5117349002
ref: 11

SEAL,DUST

€ 13.00

12

0211204087
ref: 12

SCREW

€ 1.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

5114649000
ref: 14

CYLINDER,FRONT FORK

€ 78.00

15

5119649000
ref: 15

RING,PISTON

€ 9.00

16

5117749000
ref: 16

SPRING,REBOUND

€ 7.50

17

5117149470
ref: 17

SPRING,FRONT FORK

€ 0.00

18

5117238010
ref: 18

GUIDE,FRONT FORK SPRING C

€ 9.50

19

5117649470
ref: 19

SPACER,SPRING

€ 0.00

20

5135149470
ref: 20

CAP,FORK INNER TUBE

€ 0.00

21

5111716310
ref: 21

O RING

€ 4.50

22

5113249000
ref: 22

HOLDER,AXLE

€ 30.00

23

0914008005
ref: 23

NUT (8MM)

€ 1.50

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0832221088
ref: 25

WASHER

€ 2.00

all assemblies
