SEAT (MODEL D)

GS1100G 1982 (Z) GENERAL EXPORT (E01)

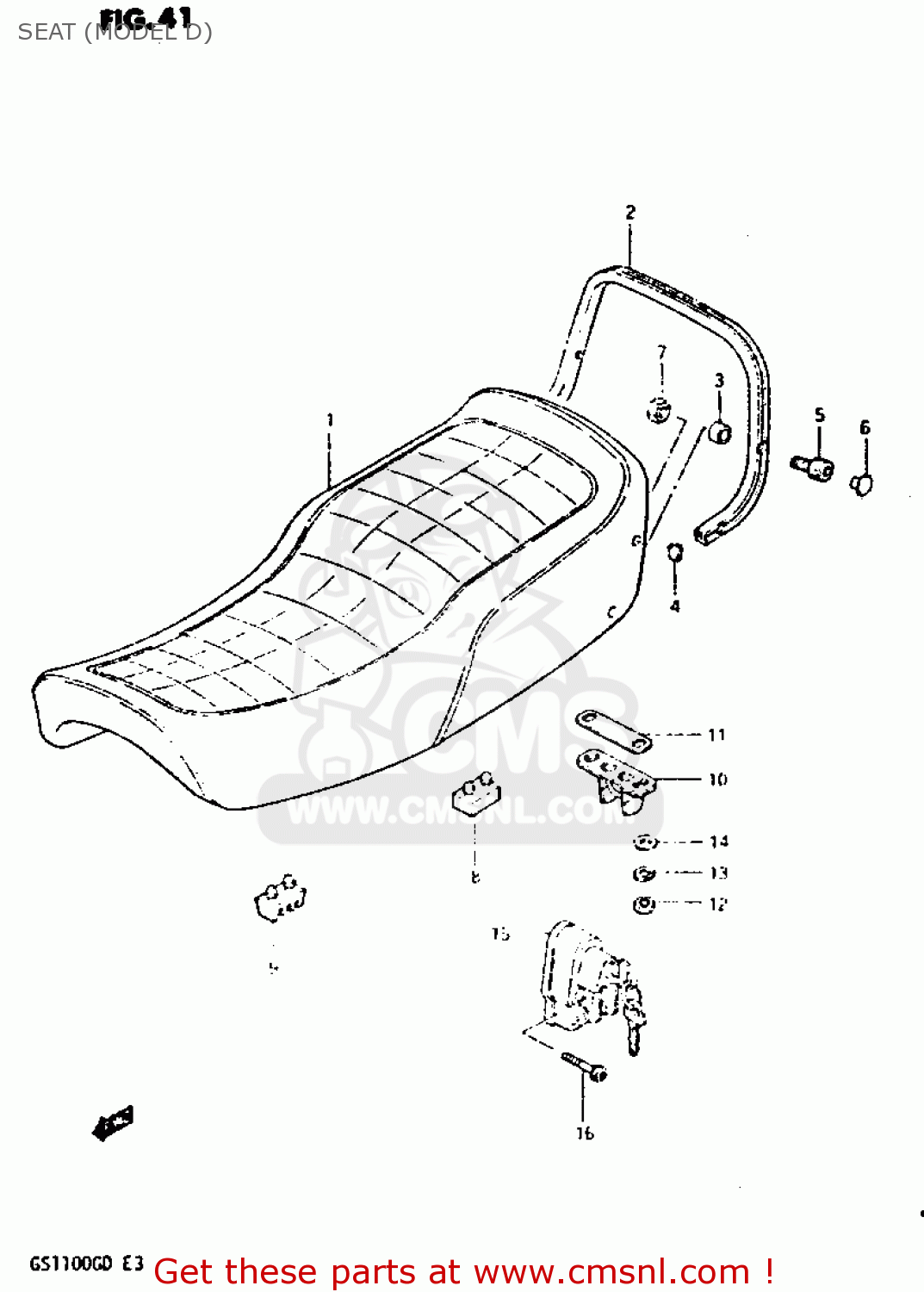

Seat (model d) diagram GS1100G 1982 (Z) GENERAL EXPORT (E01)

SEAT (MODEL D) GS1100G 1982 (Z) GENERAL EXPORT (E01)

SEAT (MODEL D) GS1100G 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

451004943048H
ref: 1

SEAT ASSEMBLY

€ 0.00

2

4621149430
ref: 2

HANDLE,PILLION RIDER

€ 170.50

3

4621849430
ref: 3

SPACER,REAR

€ 5.00

4

4621349431
ref: 4

END,PILLION RIDER HAND

€ 5.00

5

0711008305
ref: 5

BOLT, REAR (8X30)

€ 3.00

6

0925006004
ref: 6

CAP(OD:14.5)

€ 1.50

7

0831626088
ref: 7

NUT

€ 3.00

8

0932108006
ref: 8

CUSHION

€ 3.00

9

4514945330
ref: 9

CUSHION,SUPPORT(50X25X32)

€ 2.00

10

4521044101
ref: 10

STRIKER,SEAT LOCK

€ 32.50

11

4521744100
ref: 11

SHIM,SEAT LOCK STRIKER

€ 4.50

12

0831022067
ref: 12

NUT 6MM

€ 2.50

13

0832101067
ref: 13

WASHER,LOCK

€ 2.50

14

0832201067
ref: 14

WASHER

€ 2.00

15

9570034210
ref: 15

LOCK ASSY,HELMET

€ 59.00

16

0711005258
ref: 16

BOLT

€ 2.00
