CLUTCH
GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

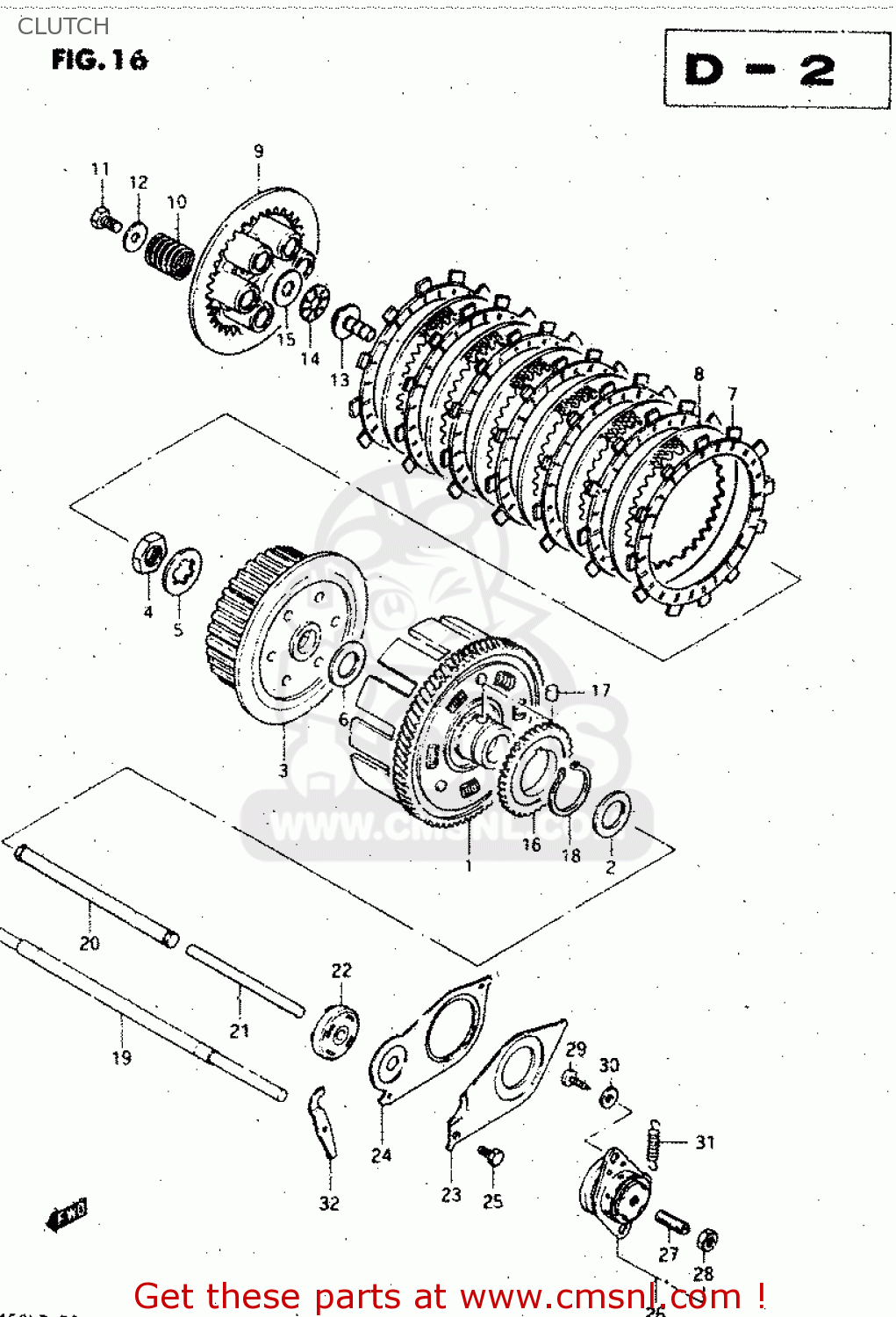

Clutch diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
CLUTCH GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
×
prices are in EUR
ref
part #
description
quantity
1
2120044100
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 333.00
2
0821125381
ref: 2
WASHER
€ 3.00
3
2141144100
ref: 3
HUB,CLUTCH SLEEVE
€ 56.50
4
0914020002
ref: 4
NUT (20MM)
€ 3.50
5
0916720006
ref: 5
WASHER,LOCK
€ 3.00
6
0916020015
ref: 6
WASHER(20X44X3)
€ 4.50
7
2144140402
ref: 7
PLATE,CLUTCH DRIVE (MCA)
€ 20.50
8
2145145000
ref: 8
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
9
2146216501
ref: 9
DISC,CLUTCH PRESSURE
€ 51.00
10
0944019013
ref: 10
FROM 09440-19003
SPRING
€ 5.50
11
0110706168
ref: 11
BOLT, UPPER
€ 3.00
12
0916006020
ref: 12
WASHER
€ 2.00
13
2312144100
ref: 13
PIECE,CLUTCH PUSH
€ 21.50
14
0926315003
ref: 14
BEARING(15X28X2)
€ 7.00
15
0916015015
ref: 15
WASHER
€ 4.00
16
1632144001
ref: 16
GEAR,OIL PUMP DRIVE
€ 26.00
17
0926106002
ref: 17
PIN(6X6)
€ 1.50
18
0833131389
ref: 18
CIRCLIP
€ 2.50
19
2310044101
ref: 19
~E.NO.162952
ROD,CLUTCH PUSH
€ 18.50
20
2311044110
ref: 20
E.NO.162953~
ROD,CLUTCH PUSH
€ 13.00
21
2311144110
ref: 21
E.NO.162953~
ROD,CLUTCH PUSH
€ 13.50
22-1
0928306002
ref: 22-1
FLANGED TYPE
SEAL,OIL(6X34X8)
€ 7.00
22-2
0928506011
ref: 22-2
WITH HOLDER
SEAL,OIL(6X34X10)
€ 9.50
23
2311744100
ref: 23
FOR 09283-06002
PLATE,CLUTCH PUSH ROD
€ 6.00
24
2311744101
ref: 24
FOR 09285-06011
PLATE,CLUTCH PUSH ROD
€ 6.50
25
0110706128
ref: 25
BOLT
€ 2.00
26
2320044101
ref: 26
SCREW ASSY,CLUTCH RELEASE
€ 63.00
27
0913406001
ref: 27
SCREW
€ 3.00
28
0831022068
ref: 28
NUT 6MM
€ 2.50
29
0311106128
ref: 29
SCREW
€ 1.50
30
0832221068
ref: 30
WASHER
€ 2.00
31
0944308001
ref: 31
SPRING
€ 3.00
32
2312144990
ref: 32
MODEL T
GUIDE,PUSH ROD OIL SEAL
€ 12.50
