FOOTREST
GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

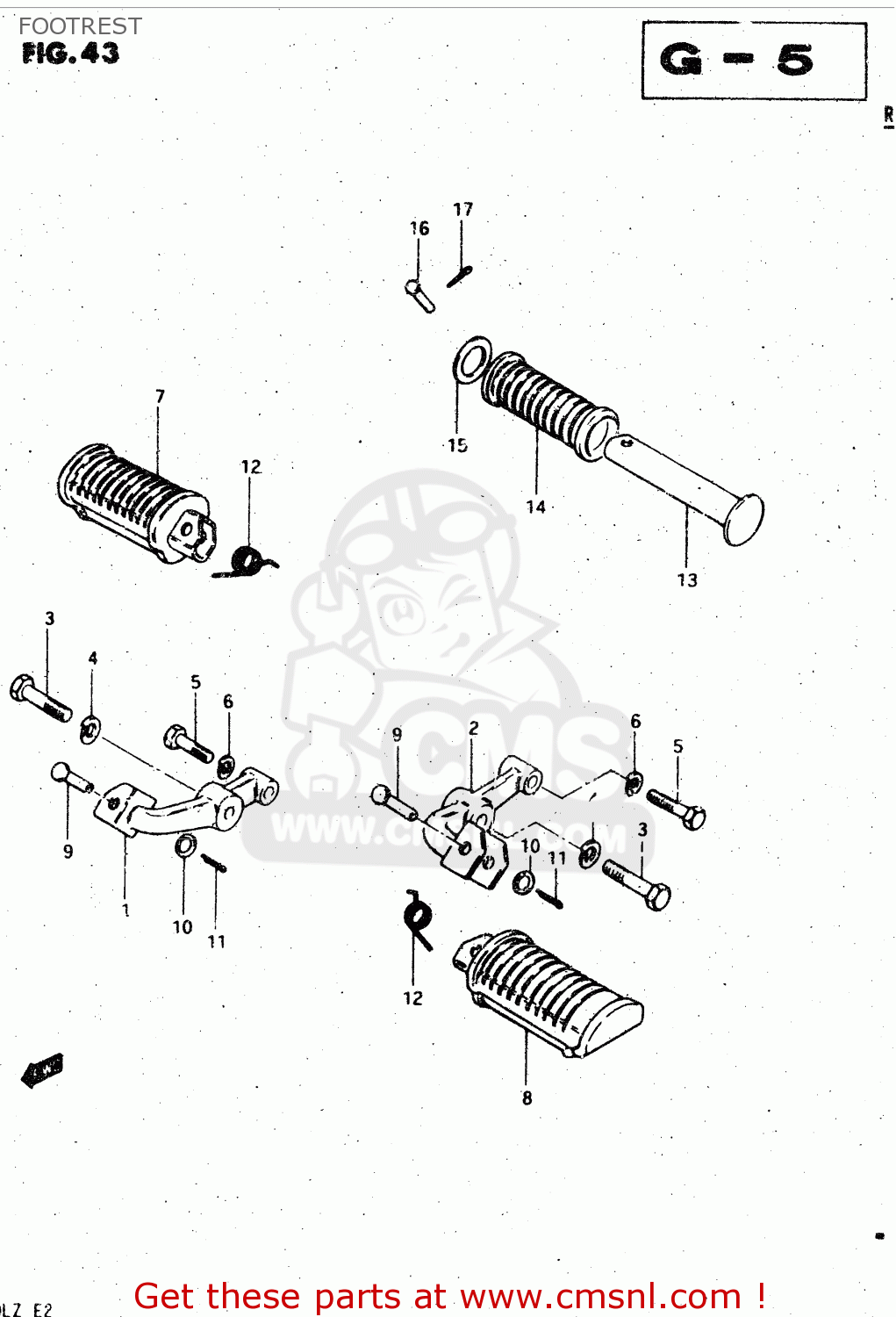

Footrest diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
FOOTREST GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
×
prices are in EUR
ref
part #
description
quantity
1
4351044200019
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 35.00
2
4352044010019
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 32.50
3
0910010117
ref: 3
BOLT
€ 2.50
4
0832121108
ref: 4
LOCK WASHER
€ 2.00
5
0110708408
ref: 5
BOLT 8X40
€ 3.00
6
0832121088
ref: 6
LOCK WASHER
€ 2.00
7
4355049002
ref: 7
RUBBER,FRONT FOOTREST
€ 22.50
8
4356049002
ref: 8
FOOTREST
€ 22.50
9
0920008002
ref: 9
PIN
€ 2.00
10
0832211088
ref: 10
WASHER
€ 2.00
11
0411120158
ref: 11
PIN
€ 1.50
12
0944814013
ref: 12
SPRING
€ 3.00
13
4361044000
ref: 13
BAR,PILLION FOOTREST
€ 14.50
14
4361203001
ref: 14
RUBBER,PILLION FOOTREST
€ 3.50
15
0916019006
ref: 15
WASHER (19.5X32X2)
€ 2.00
16
0920006010
ref: 16
PIN
€ 2.50
17
0411120158
ref: 17
PIN
€ 1.50
