REAR COMBINATION LAMP (E34)

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

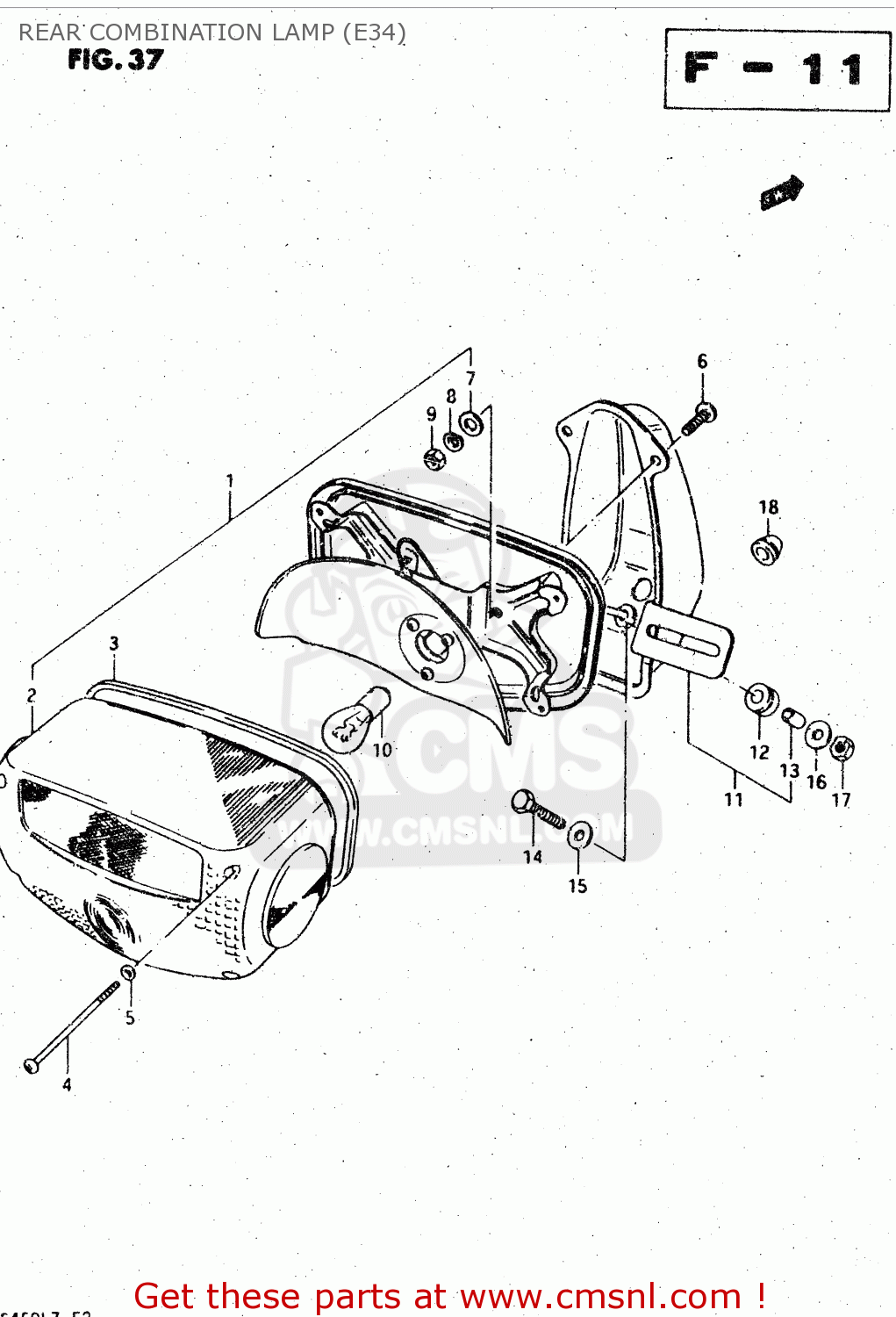

Rear combination lamp (e34) diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

REAR COMBINATION LAMP (E34) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
REAR COMBINATION LAMP (E34) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
REAR COMBINATION LAMP (E34) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3572045260999
ref: 1
LAMP UNIT, TAIL
€ 0.00
2
3571245642
ref: 2
LENS
€ 41.50
3
3571345010
ref: 3
GASKET (NAS)
3571345010
€ 9.00
4
0912504002
ref: 4
SCREW (4X55)
0912504002
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0211206128
ref: 6
SCREW 6X12
0211206128
€ 2.00
7
0832221068
ref: 7
WASHER
0832221068
€ 2.00
8
0832121068
ref: 8
LOCK WASHER
0832121068
€ 2.50
9
0831011068
ref: 9
NUT
0831011068
€ 2.50
10
0947112046
ref: 10
EXECUTED LOCALLY
BULB(12V21/5W)
0947112046
€ 1.50
11
3573045220
ref: 11
BRACKET ASSY
€ 49.50
12
3576522210
ref: 12
CUSHION
3576522210
€ 4.00
13
3576637120
ref: 13
FROM 35766-22210
SPACER
3576637120
€ 2.50
14
0110706258
ref: 14
BOLT
€ 2.00
15
0916006027
ref: 15
WASHER (6.5X20X1.2)
0916006027
€ 2.00
16
0832221068
ref: 16
WASHER
0832221068
€ 2.00
17
0831011068
ref: 17
NUT
0831011068
€ 2.50
18
0930807004
ref: 18
GROMMET
0930807004
€ 2.50
