FRAME COVER (MODEL T)

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

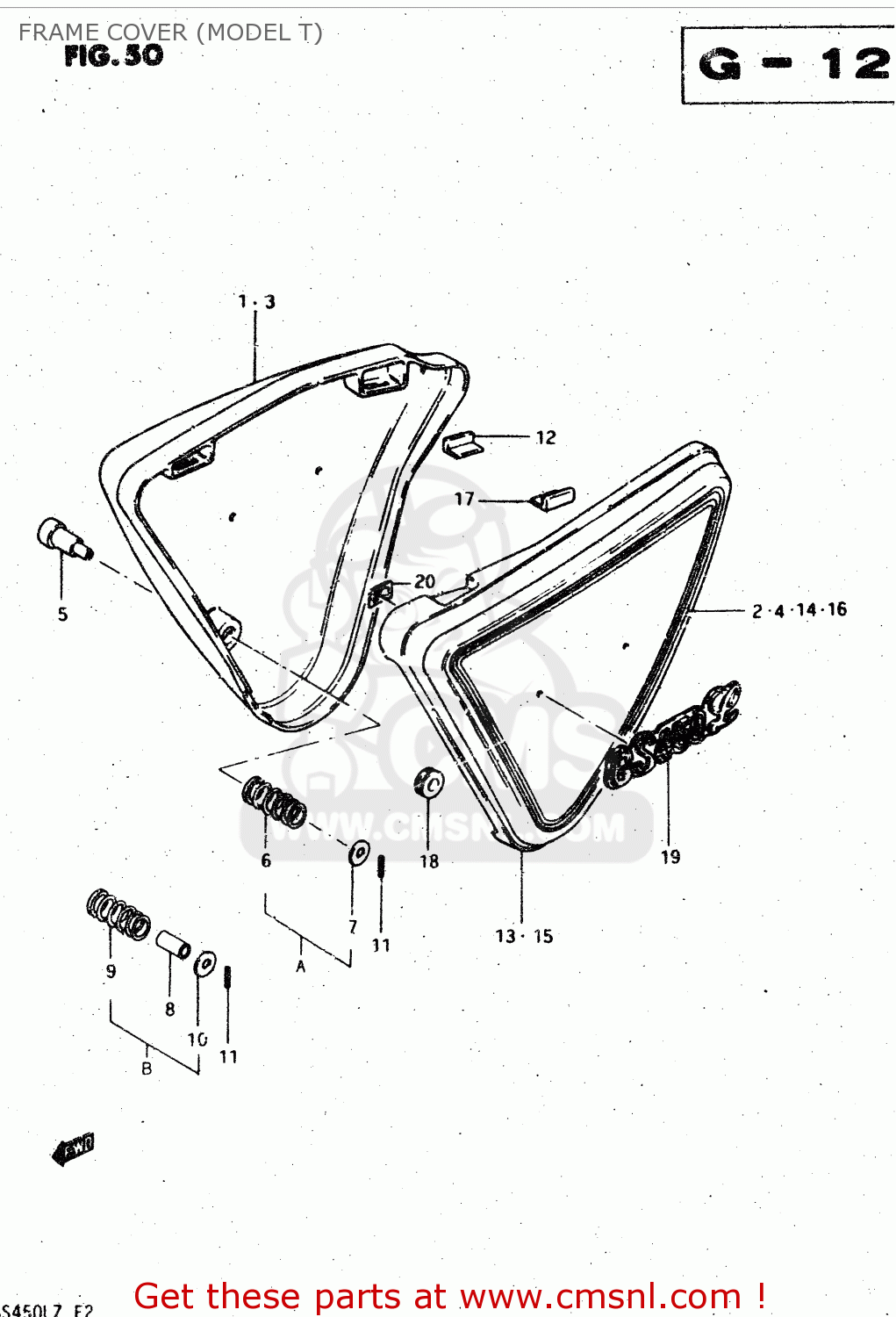

Frame cover (model t) diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

FRAME COVER (MODEL T) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

FRAME COVER (MODEL T) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

4711144210019
ref: 1

COVER,FRAME,RIGHT

€ 58.00

2

681304421066Y
ref: 2

TAPE SET,FRAME COVER

€ 13.50

3

471114421000J
ref: 3

COVER,FRAME,RIGHT

€ 52.00

4

681304421071P
ref: 4

TAPE SET,FRAME COVER,RIGHT

€ 17.00

5

4713044200
ref: 5

KNOB,FRAME COVER,R

€ 8.50

6

0944017004
ref: 6
A TYPE

SPRING

€ 2.50

7

0916006020
ref: 7
A TYPE

WASHER

€ 2.00

8

0918014009
ref: 8
B TYPE

SPACER(14.9X17.3X13.5)

€ 5.50

9

0944020009
ref: 9
B TYPE

SPRING

€ 2.50

10

0916006004
ref: 10
B TYPE

WASHER (6.5X24X1.6)

€ 1.50

11

0920502011
ref: 11

PIN,SPRING(2.5X18)

€ 1.50

12

4711745000
ref: 12

CUSHION,FRAME COVER

€ 1.50

13

4721144210019
ref: 13

COVER,FRAME,LEFT

€ 52.00

14

681404421066Y
ref: 14

TAPE SET,FRAME COVER

€ 15.00

15

472114421000J
ref: 15

COVER,FRAME,LEFT

€ 52.00

16

681404421071P
ref: 16

TAPE SET,FRAME COVER,LEFT

€ 16.00

17

4711745000
ref: 17

CUSHION,FRAME COVER

€ 1.50

18

0932008018
ref: 18

CUSHION

€ 4.00

19

6813144220
ref: 19

EMBLEM

€ 25.00

20

0914803002
ref: 20

NUT

€ 3.00
