REAR COMBINATION LAMP (E22, E25)

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

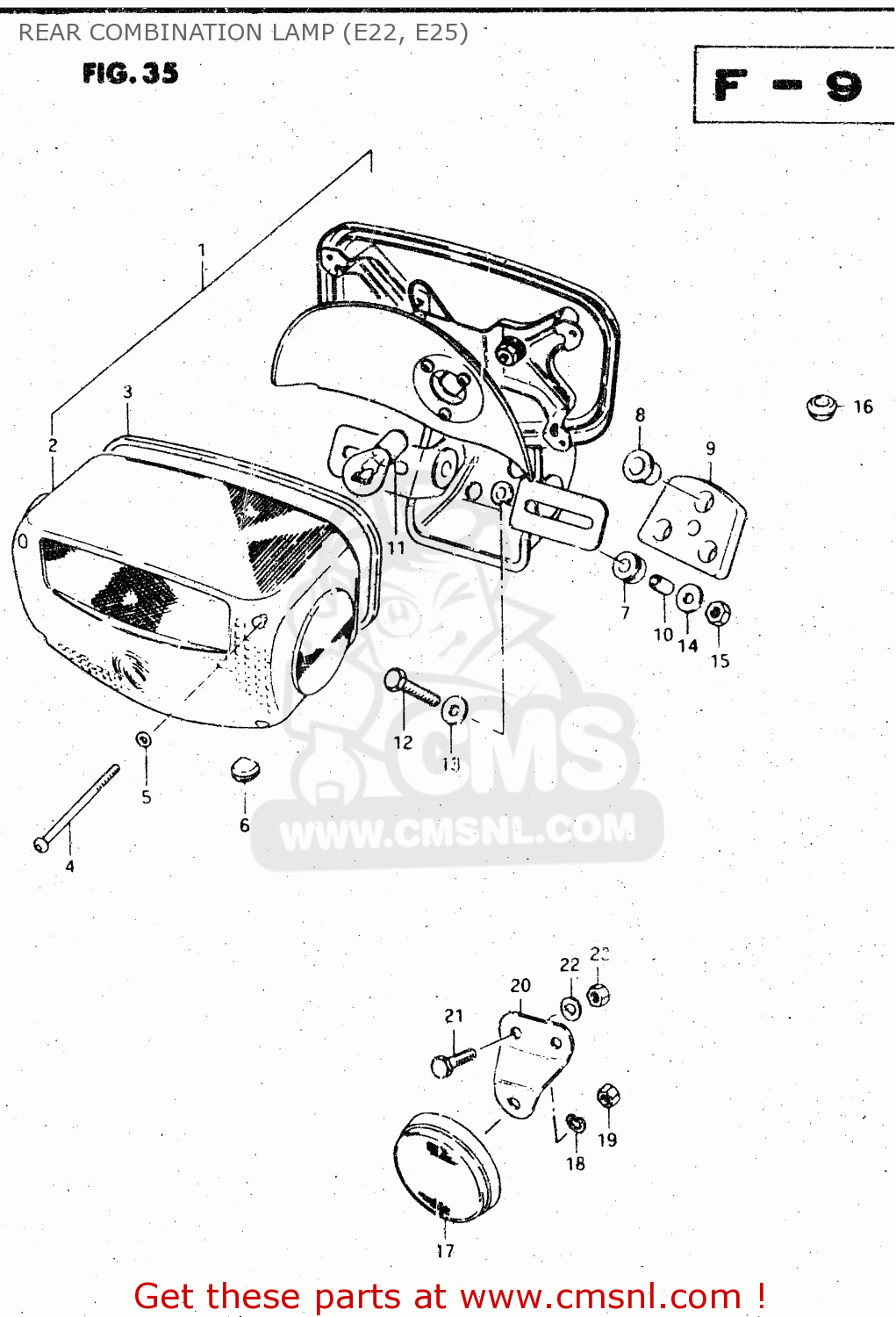

Rear combination lamp (e22, e25) diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

REAR COMBINATION LAMP (E22, E25) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

REAR COMBINATION LAMP (E22, E25) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3571047290999
ref: 1-1
MODEL T

LAMP ASSY, TAIL

€ 223.50

1-2

3571047291999
ref: 1-2
MODEL X,Z

LAMP ASSY,RR C

€ 223.50

2

3571245631
ref: 2

LENS,RR COMBIN

€ 41.00

3

3571345010
ref: 3

GASKET (NAS)

€ 9.00

4

0912504002
ref: 4

SCREW (4X55)

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3572845630
ref: 6

GROMMET

€ 0.00

7

3576522210
ref: 7

CUSHION

€ 4.00

8

3576447290
ref: 8

CUSHION

€ 2.00

9

3576547290
ref: 9

CUSHION

€ 0.00

10

3576637120
ref: 10

SPACER

€ 2.50

11

0947112046
ref: 11
EXECUTED LOCALLY

BULB(12V21/5W)

€ 1.50

12

0110706258
ref: 12

BOLT

€ 2.00

13

0916006027
ref: 13

WASHER (6.5X20X1.2)

€ 2.00

14

0832221068
ref: 14

WASHER

€ 2.00

15

0831011068
ref: 15

NUT

€ 2.50

16

0930807004
ref: 16

GROMMET

€ 2.50

17

3597049030
ref: 17

REFLEX REFLECTOR,RR

€ 27.00

18

0832121058
ref: 18

LOCK WASHER

€ 2.00

19

0831011058
ref: 19

NUT

€ 2.50

20

3597444290
ref: 20

BRACKET

€ 0.00

21

0110405108
ref: 21

BOLT

€ 1.50

22

0832221058
ref: 22

WASHER

€ 2.50

23

0831011058
ref: 23

NUT

€ 2.50
