FRAME

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

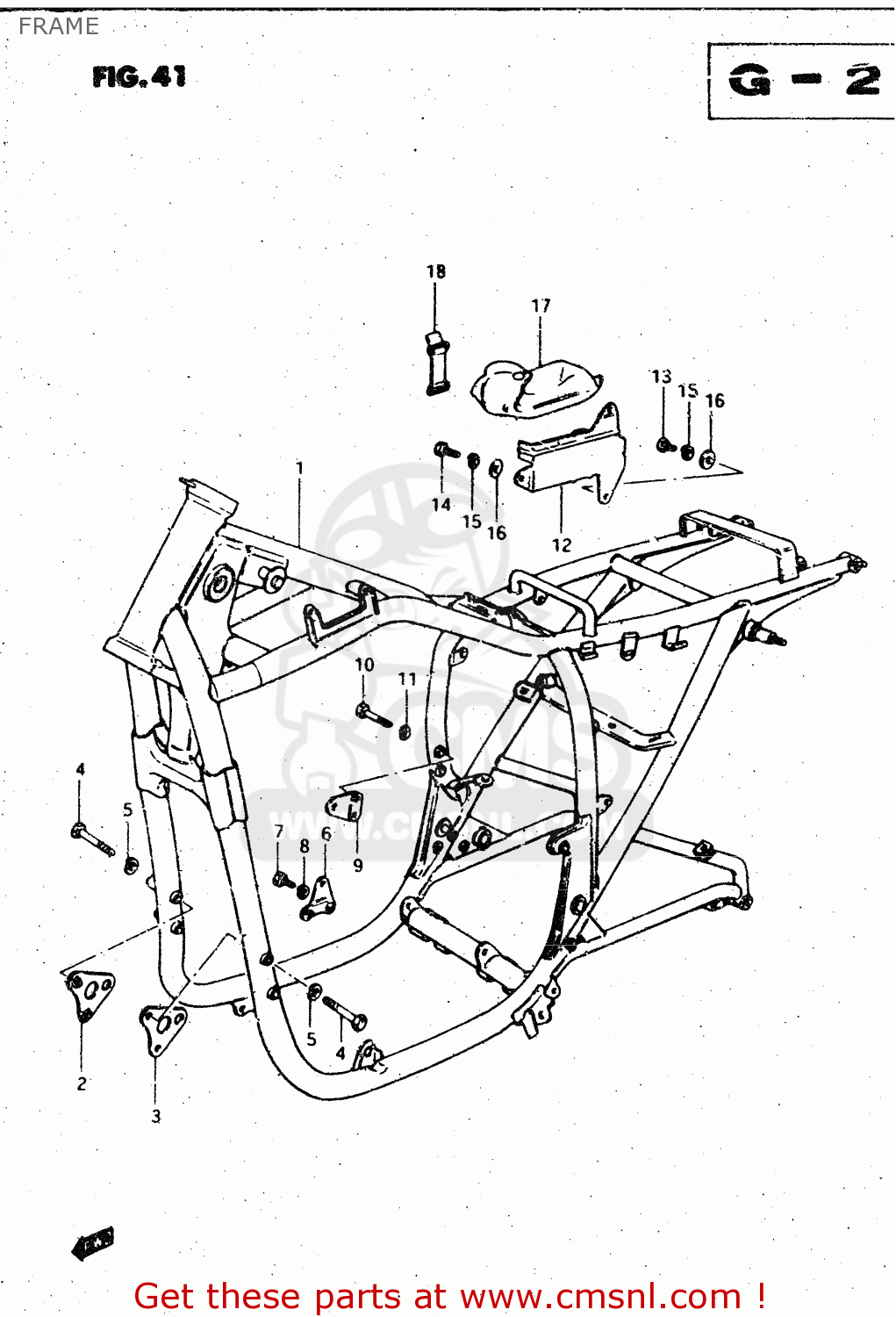

Frame diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

FRAME GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
FRAME GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
FRAME GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
4110044210019
ref: 1-1
FRAME
€ 411.50
1-2
4110044230019
ref: 1-2
MODEL T,X E15
FRAME (BLACK)
€ 0.00
1-3
4110044220019
ref: 1-3
MODEL T,X E22 MODEL
FRAME (BLACK)
€ 0.00
2
4193044000019
ref: 2
PLATE,ENGINE MOUNTING
€ 8.00
3
4194044000019
ref: 3
PLATE,ENGINE MOUNTING
€ 8.00
4
0110708608
ref: 4
BOLT
€ 2.50
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
4192044100019
ref: 6
PLATE,ENGINE MOUNTING
€ 0.00
7
0110708168
ref: 7
BOLT
€ 2.00
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
4191044000019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708458
ref: 10
BOLT 8X45
€ 2.50
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
4155144100
ref: 12
HOLDER,TOOL
€ 28.50
13
0211206128
ref: 13
SCREW 6X12
0211206128
€ 2.00
14
0211206208
ref: 14
SCREW
€ 2.00
15
0832121068
ref: 15
LOCK WASHER
0832121068
€ 2.50
16
0832221068
ref: 16
WASHER
0832221068
€ 2.00
17-1
0980000811
ref: 17-1
MODEL T,X
TOOL ASSY
€ 52.00
17-2
0980006800
ref: 17-2
MODEL Z
TOOL SET
€ 52.00
18
0946200072
ref: 18
BAND
0946200072
€ 3.50
