HEADLAMP

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

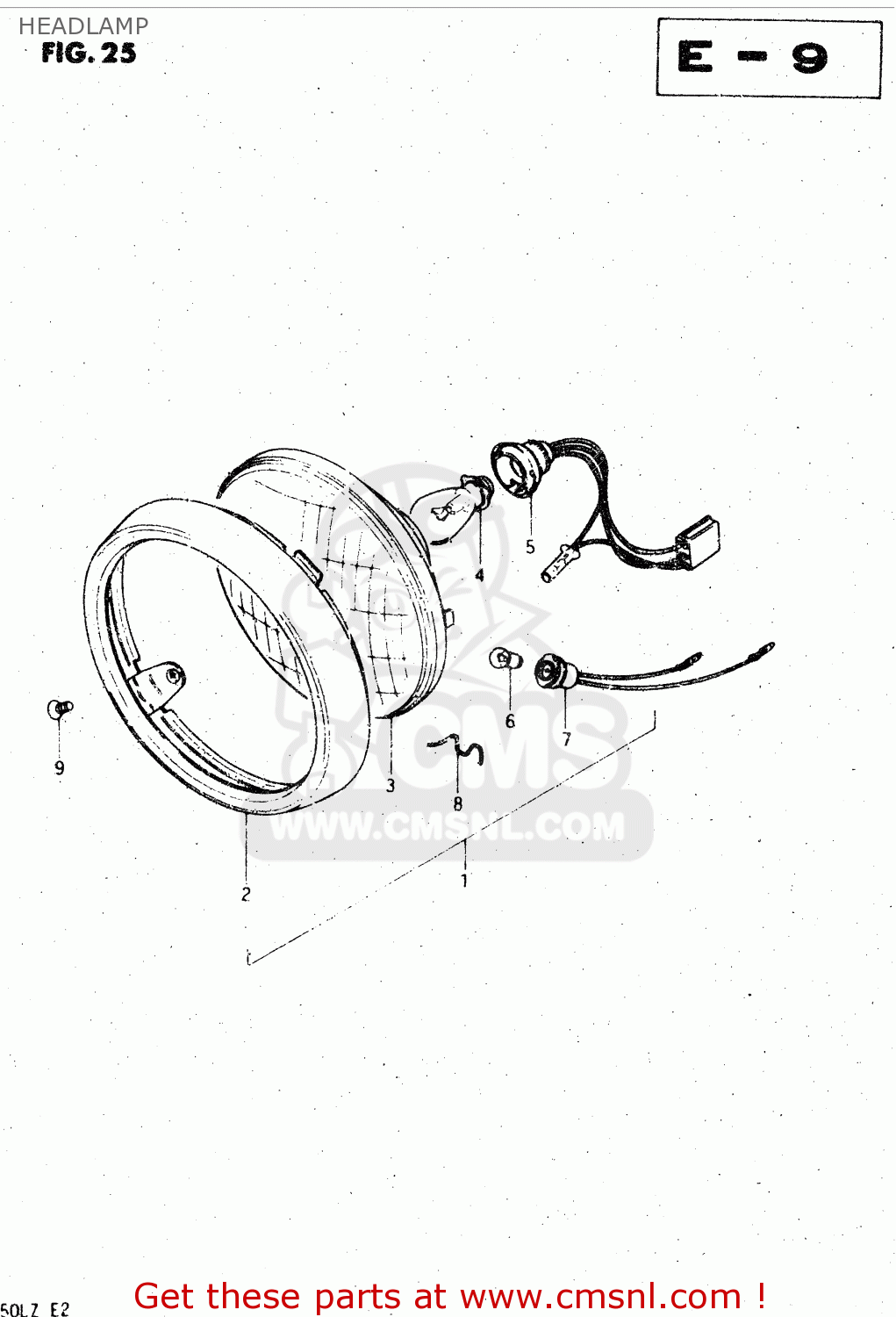

Headlamp diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

HEADLAMP GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

HEADLAMP GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3510044270
ref: 1

HEADLAMP ASSY

€ 144.50

2

3511137350
ref: 2

RIM

€ 42.00

3

3512144270
ref: 3

LAMP UNIT

€ 55.00

4

0947112044
ref: 4

BULB

€ 8.50

5

3517144270
ref: 5

SOCKET

€ 34.50

6

0947112001
ref: 6

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

7

3611830500
ref: 7

SOCKET

€ 10.00

8

3517233630
ref: 8

SPRING

€ 4.00

9

0912705013
ref: 9

SCREW(5X12)

€ 2.50
