REAR SWINGING ARM

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

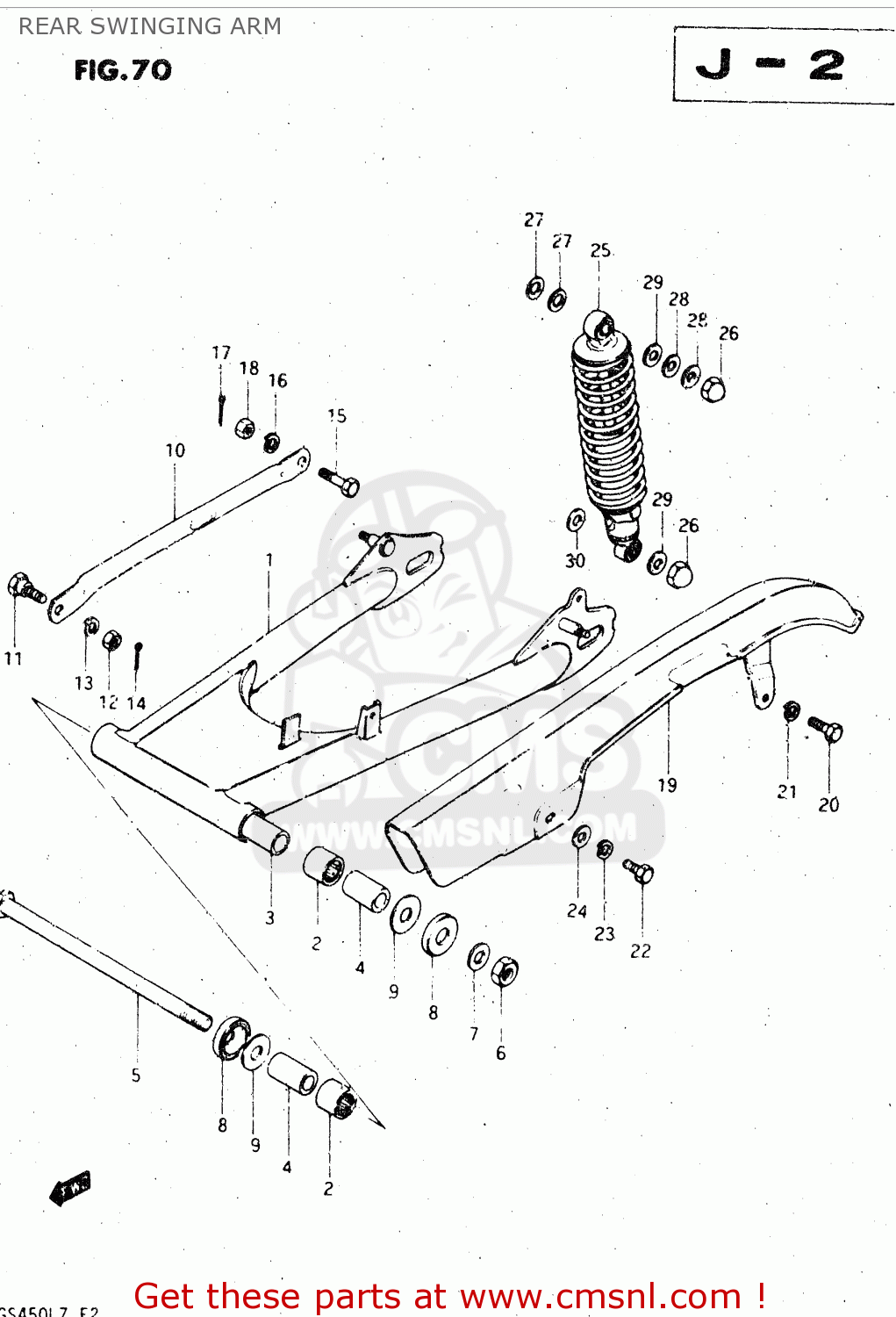

Rear swinging arm diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

REAR SWINGING ARM GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
REAR SWINGING ARM GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
REAR SWINGING ARM GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
6110044820019
ref: 1-1
MODEL T,X
SWING ARM ASSEMBLY,REAR
€ 180.00
1-2
6110044821019
ref: 1-2
MODEL Z
ARM,REAR SWING
6110044821019
€ 180.00
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
6128144001
ref: 3
SPACER,SWINGINGARM CTR
6128144001
€ 12.00
4
6125145001
ref: 4
SPACER,RR SWGARM PIVOT
6125145001
€ 12.50
5
6121133002
ref: 5
SHAFT,REAR SWING ARM
6121133002
€ 84.00
6
0831921148
ref: 6
NUT 14MM
0831921148
€ 3.00
7
0832211148
ref: 7
WASHER
0832211148
€ 2.00
8-1
6126245003
ref: 8-1
MODEL T
COVER,REAR SWING ARM DUST
€ 4.50
8-2
6126245002
ref: 8-2
MODEL X,Z
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
9
0916014020
ref: 9
WASHER(14.2X34X1)
0916014020
€ 2.50
10
6431144200019
ref: 10
LINK,REAR TORQUE
€ 13.00
11
0911110010
ref: 11
BOLT(10X24.5)
0911110010
€ 5.50
12
0831022108
ref: 12
NUT
0831022108
€ 2.50
13
0832121108
ref: 13
LOCK WASHER
0832121108
€ 2.00
14
0411120208
ref: 14
PIN 20X20
0411120208
€ 1.50
15
0910110003
ref: 15
BOLT(10X31)
0910110003
€ 4.00
16
0832121108
ref: 16
LOCK WASHER
0832121108
€ 2.00
17
0411120208
ref: 17
PIN 20X20
0411120208
€ 1.50
18
0831011108
ref: 18
NUT
0831011108
€ 2.50
19-1
6131047201
ref: 19-1
MODEL T
CASE,CHAIN
€ 70.50
19-2
6131047202
ref: 19-2
MODEL X
CASE,CHAIN
€ 70.50
19-3
6131047203
ref: 19-3
MODEL Z
CASE,CHAIN
6131047203
€ 70.50
20
0110706168
ref: 20
BOLT, UPPER
€ 3.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0110706108
ref: 22
BOLT
€ 2.00
23
0832121068
ref: 23
LOCK WASHER
0832121068
€ 2.50
24
0832221
ref: 24
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
25-1
6210044131
ref: 25-1
ABSORBER ASSEMBLY,REAR SHOCK
€ 197.50
25-2
6210044132
ref: 25-2
F.NO.701001~,MODEL T
ABSORBER ASSEMBLY,REAR SHOCK
€ 197.50
26
0831311108
ref: 26
NUT, LOWER LH
0831311108
€ 2.50
27
0832211128
ref: 27
WASHER
0832211128
€ 2.00
28
0916010001
ref: 28
WASHER
0916010001
€ 2.00
29
0916010033
ref: 29
WASHER(10.5X24X3.2)
0916010033
€ 2.00
30
0916012004
ref: 30
WASHER (12.5X24X1.6)
0916012004
€ 2.00
