CRANKSHAFT

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

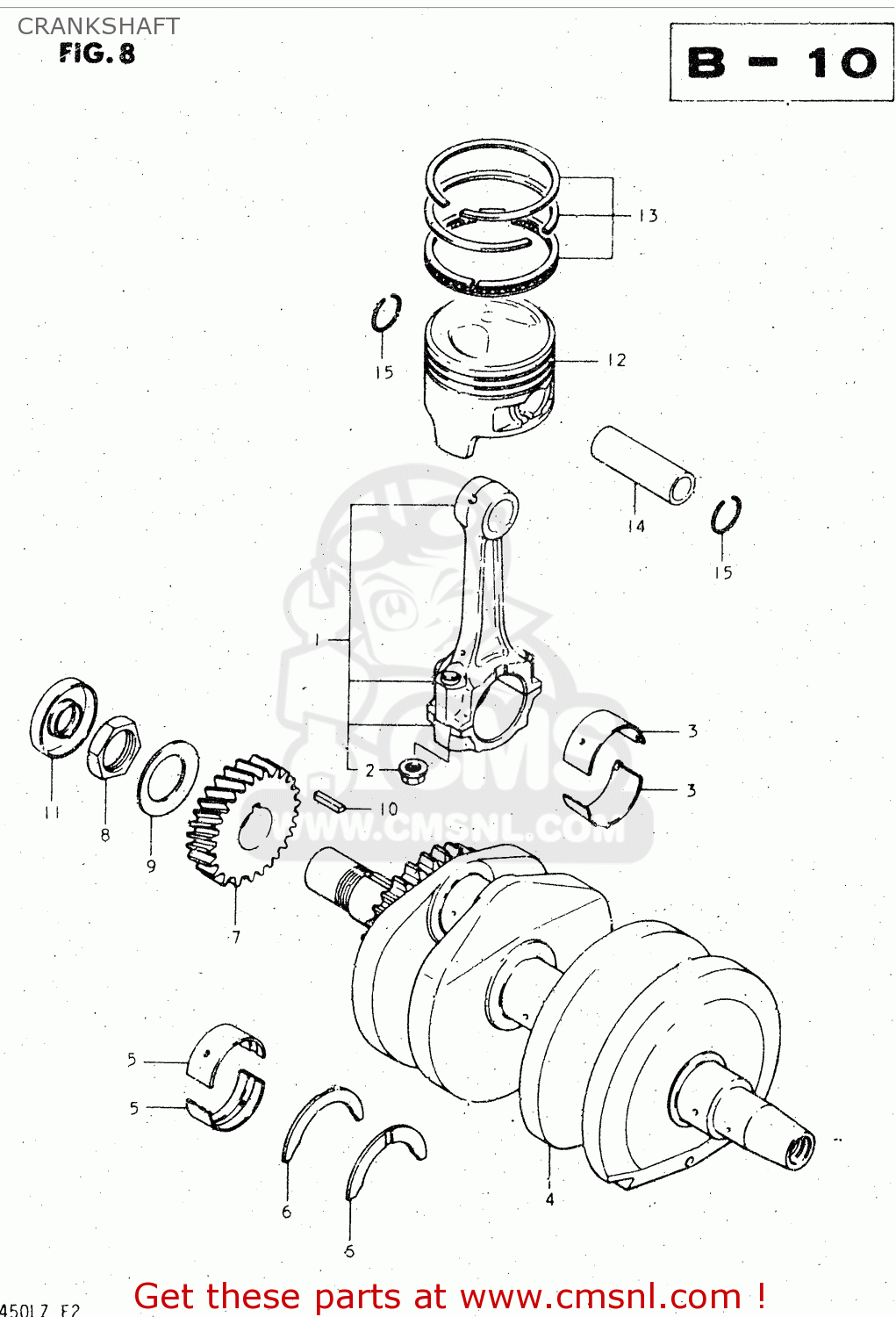

Crankshaft diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

CRANKSHAFT GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
CRANKSHAFT GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
CRANKSHAFT GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1216044100
ref: 1
ROD ASSEMBLY,CONNECTING
1216044100
€ 135.50
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216444100010
ref: 3-1
BEARING,CRANK PIN
1216444100010
€ 13.50
3-2
1216444100020
ref: 3-2
BEARING,CRANK PIN
1216444100020
€ 14.50
3-3
1216444100030
ref: 3-3
BEARING,CRANK PIN
1216444100030
€ 14.50
3-4
1216444100040
ref: 3-4
BEARING,CRANK PIN
1216444100040
€ 15.00
3-5
1216444100025
ref: 3-5
OPT
BEARING,CRANK PIN(US:0.25)
1216444100025
€ 15.50
3-6
1216444100050
ref: 3-6
OPT
BEARING,CRANK PIN(US:0.5)
1216444100050
€ 14.50
4-1
1222044100
ref: 4-1
MODEL T,X
CRANKSHAFT
€ 1,167.50
4-2
1222044101
ref: 4-2
MODEL Z
CRANKSHAFT
1222044101
€ 1,167.50
5-1
1222944100010
ref: 5-1
METAL CRANKSHAFT
1222944100010
€ 10.50
5-2
1222944100020
ref: 5-2
METAL CRANKSHAFT
1222944100020
€ 11.00
5-3
1222944100030
ref: 5-3
METAL CRANKSHAFT
1222944100030
€ 11.00
5-4
1222944100040
ref: 5-4
METAL CRANKSHAFT
1222944100040
€ 11.00
5-5
1222944100025
ref: 5-5
OPT
BEARING,CRANKSHAFT(US:0.25)
1222944100025
€ 21.50
5-6
1222944100050
ref: 5-6
OPT
BEARING,CRANKSHAFT(US:0.5)
1222944100050
€ 9.50
6
1222844106
ref: 6
BEARING,CRANK THRUST
1222844106
€ 8.50
7
2111144100
ref: 7
GEAR,PRIMARY DRIVE NO.28
2111144100
€ 57.50
8
0914024007
ref: 8
NUT
0914024007
€ 4.50
9
0916425001
ref: 9
WASHER
0916425001
€ 4.50
10
0834131059
ref: 10
KEY
0834131059
€ 3.00
11
0928322013
ref: 11
OIL SEAL
0928322013
€ 10.50
12-1
1211144100
ref: 12-1
STD
PISTON
1211144100
€ 69.00
12-2
1211144100050
ref: 12-2
OPT
PISTON
1211144100050
€ 116.50
12-3
1211144100100
ref: 12-3
OPT
PISTON
1211144100100
€ 86.00
13-1
1214044110
ref: 13-1
STD
RING SET,PISTON
1214044110
€ 61.50
13-2
1214044110050
ref: 13-2
OPT
RING SET,PISTON (OS:0.5)
1214044110050
€ 33.00
13-3
1214044110100
ref: 13-3
OPT
RING SET,PISTON (OS:1.0)
1214044110100
€ 36.00
14
1215192201
ref: 14
PIN,PISTON (18MM)
1215192201
€ 14.00
15
0938118002A
ref: 15
CIRCLIP,PISTON PIN
0938118002A
€ 1.50
