HEADLAMP HOUSING - FRONT FENDER

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

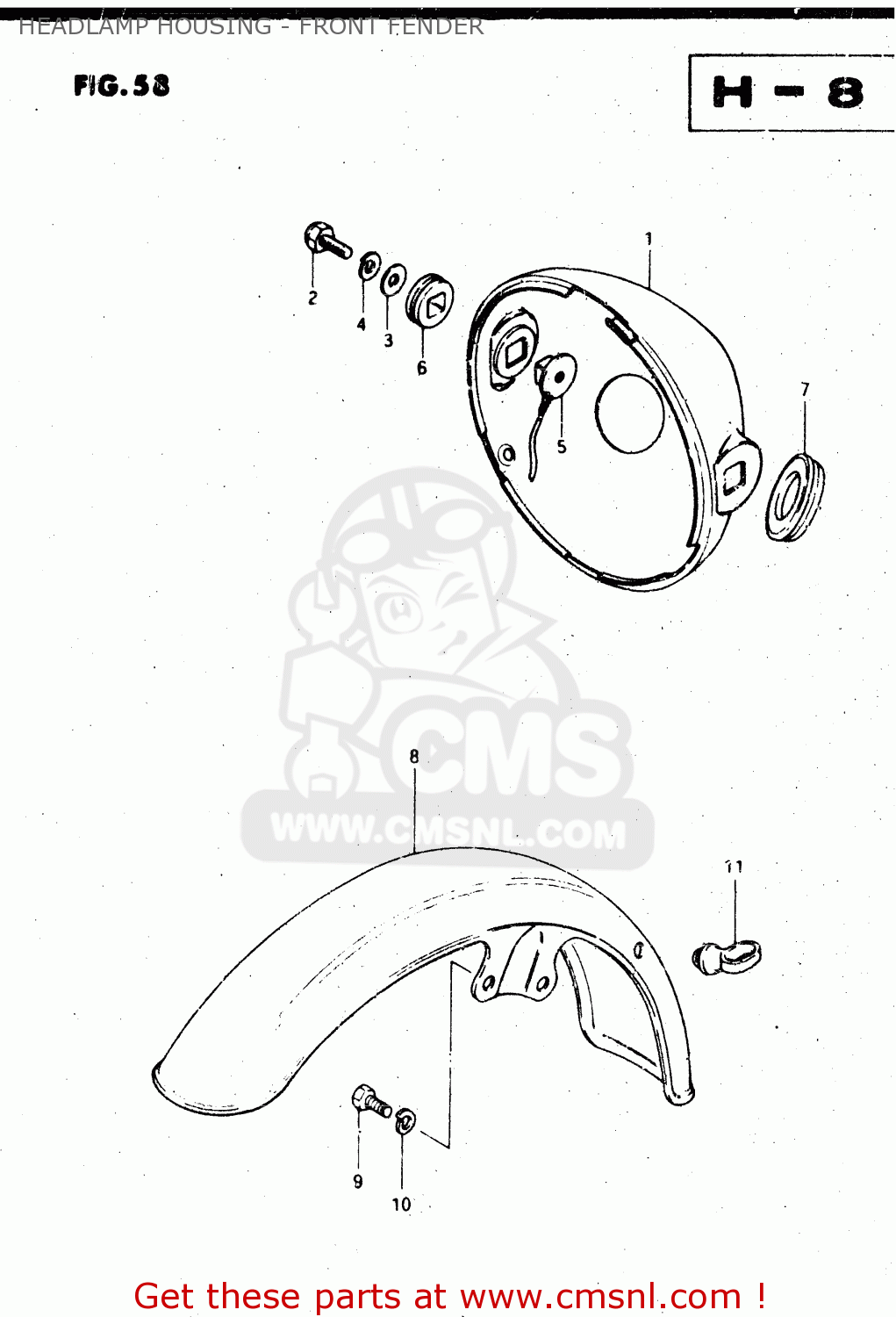

Headlamp housing - front fender diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

5181044200
ref: 1

HOUSING,HEADLAMP

€ 76.50

0120408207
ref: 2

BOLT

€ 3.00

0832211088
ref: 3

WASHER

€ 2.00

0832121088
ref: 4

LOCK WASHER

€ 2.00

5182136200
ref: 5

SPACER,HEADLAMP HOUSING

€ 7.50

5182727302
ref: 6

CUSHION,HEADLAMP HOUSING

€ 3.00

5184531031
ref: 7

GROMMET,HEADLAMP HOUSING

€ 4.00

5311044210
ref: 8

FENDER,FR

€ 228.50

0110708168
ref: 9

BOLT

€ 2.00

0832121088
ref: 10

LOCK WASHER

€ 2.00

5862121203A
ref: 11

GUIDE,CABLE

€ 7.50
