FRONT WHEEL (MODEL Z)

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

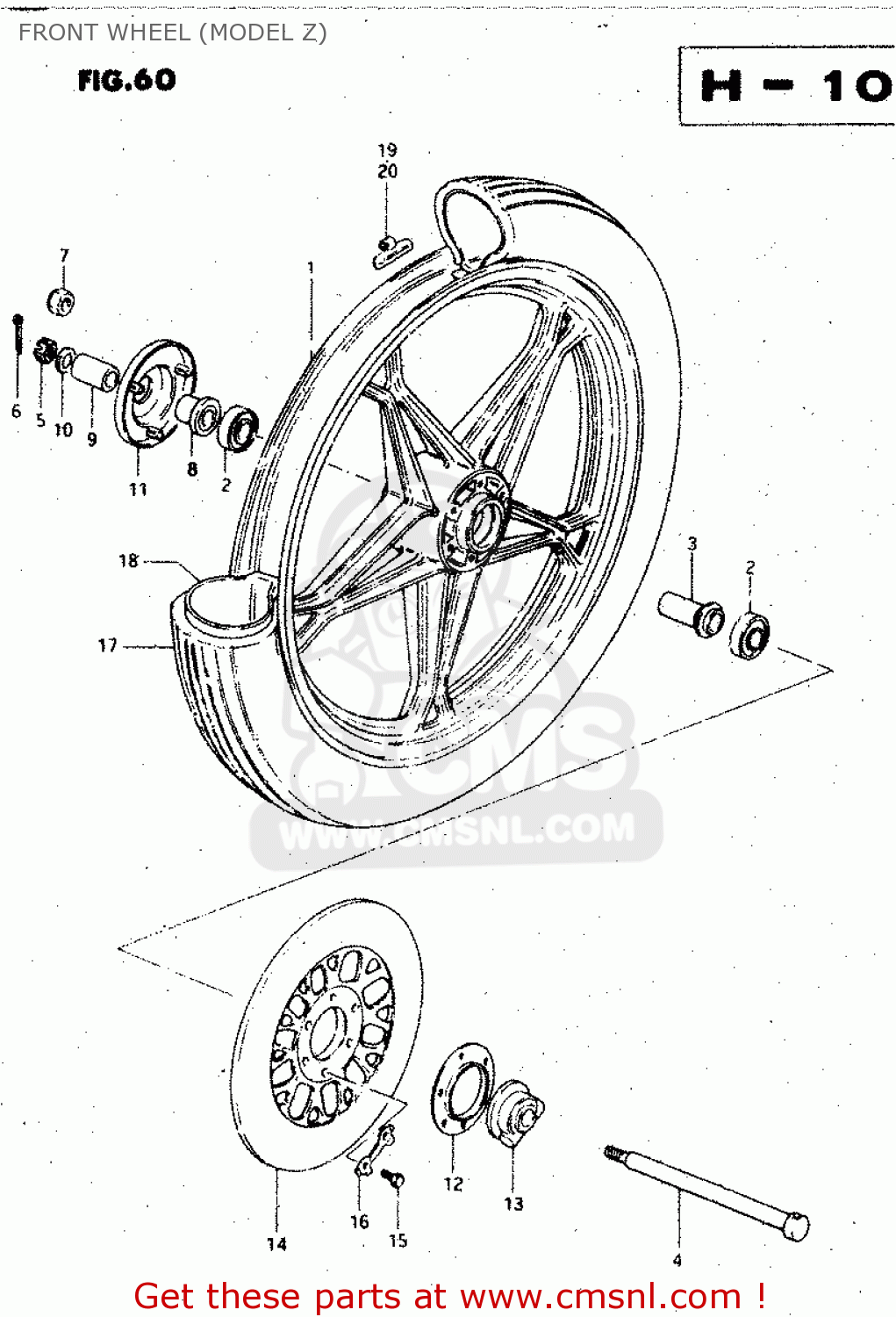

Front wheel (model z) diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

FRONT WHEEL (MODEL Z) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

FRONT WHEEL (MODEL Z) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

5411145300291
ref: 1
BLACK

CASTING WHEEL,FRONT 1.85

€ 518.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471133002
ref: 4

AXLE,FRONT

€ 41.00

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

0915912004
ref: 7
E25

NUT

€ 8.50

8

5474018410
ref: 8

SPACER,FR HUB BEARING,R

€ 17.00

9

0918015034
ref: 9

SPACER(15X22X30)

€ 7.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

5487145000
ref: 11

COVER,FR HUB,R

€ 6.00

12

5487145010
ref: 12

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

13

5460034001
ref: 13

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 96.50

14

5921145200
ref: 14

DISC,FR BRAKE

€ 144.00

15

0910008140
ref: 15

BOLT(8X25)

€ 2.00

16

0916908016
ref: 16

WASHER

€ 3.50

17-1

5510044210
ref: 17-1

TIRE,FRONT

€ 40.50

17-2

5510044230
ref: 17-2

TIRE,FRONT

€ 0.00

18

5520044220
ref: 18

TUBE,INNER

€ 0.00

19

5541145100
ref: 19

BALANCER,WHEEL

€ 7.00

20

5541245100
ref: 20

BALANCER,WHEEL

€ 4.00
