STEERING STEM (MODEL T, X)

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

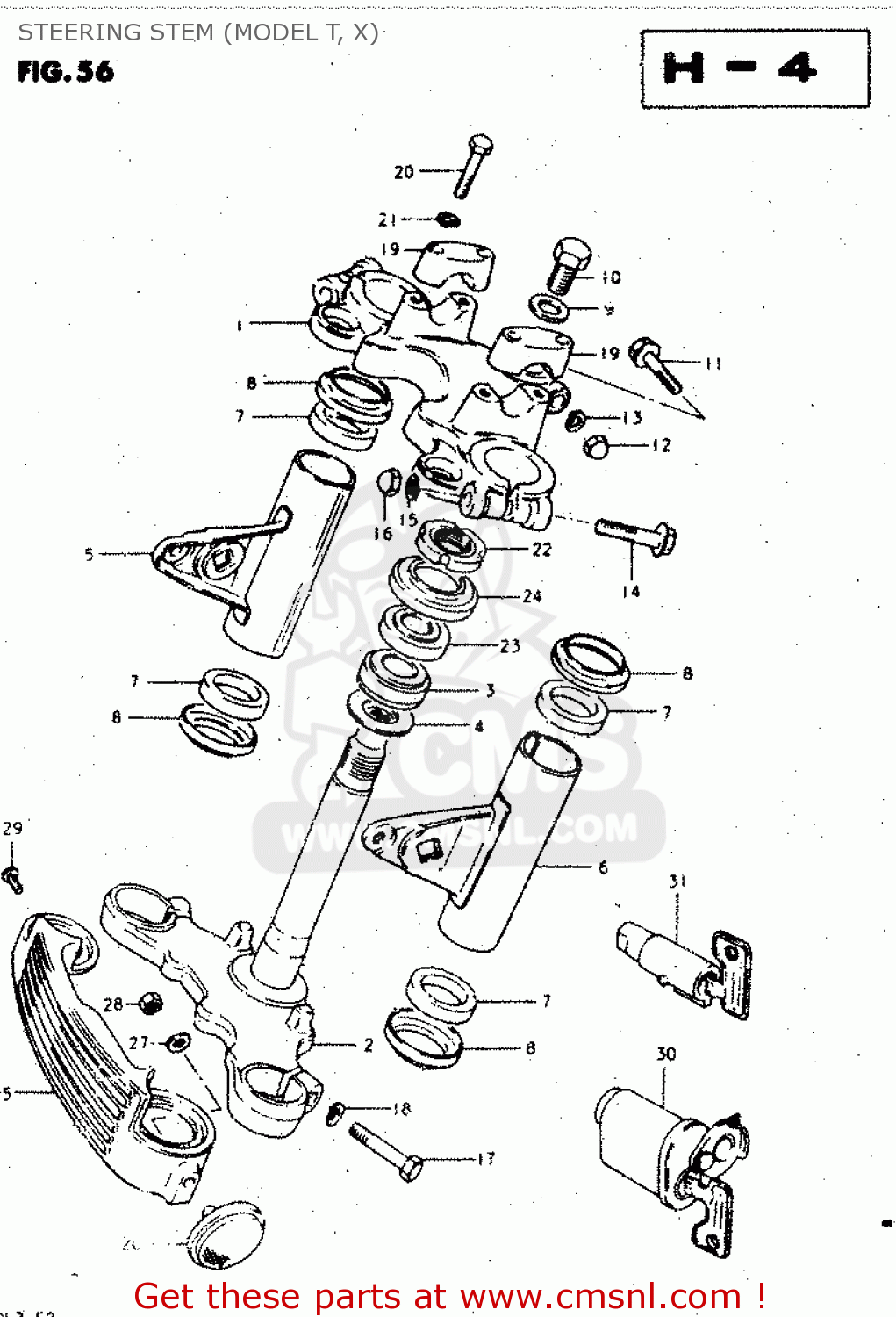

Steering stem (model t, x) diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

STEERING STEM (MODEL T, X) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
STEERING STEM (MODEL T, X) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
STEERING STEM (MODEL T, X) GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
5131144100291
ref: 1
HEAD,STEERING STEM
5131144100291
€ 133.00
2-1
51
ref: 2-1
51
2-2
5140044821
ref: 2-2
E15
STEERING STEM SET
€ 178.00
2-3
5140044831
ref: 2-3
E22,E25
STEERING STEM SET
€ 178.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153044210
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 109.00
6
5154044210
ref: 6
BRACKET,HEADLAMP,LEFT
5154044210
€ 16.50
7
5155644100
ref: 7
CUSHION,HEADLAMP BRACKET
5155644100
€ 5.50
8
5155544100
ref: 8
CAP,HEADLAMP BRACKET
5155544100
€ 5.50
9
0916812006
ref: 9
GASKET
€ 0.00
10
0910412013
ref: 10
BOLT(12X20)
0910412013
€ 6.50
11
0152708507
ref: 11
BOLT
€ 3.50
12
0831311085
ref: 12
NUT,M8X1.25X12
€ 2.00
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
0151710558
ref: 14
BOLT 10X55
€ 3.00
15
0832121108
ref: 15
LOCK WASHER
0832121108
€ 2.00
16
0831311105
ref: 16
NUT 10MM
0831311105
€ 2.00
17
0110710408
ref: 17
BOLT 10X40
0110710408
€ 3.00
18
0832121108
ref: 18
LOCK WASHER
0832121108
€ 2.00
19
5621127200291
ref: 19
HOLDER,HANDLE UPR
5621127200291
€ 13.50
20
0120408357
ref: 20
BOLT
0120408357
€ 3.50
21
0832121088
ref: 21
LOCK WASHER
0832121088
€ 2.00
22
5163128000
ref: 22
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
23
0926525008
ref: 23
TAPER,ROLLER BEARING
0926525008
€ 48.50
24
5164349001
ref: 24
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
25
5187144200
ref: 25
COVER,FRONT FORK
€ 26.00
26
3595049080
ref: 26
REFLEX REFLECTOR,RR
3595049080
€ 17.50
27
0832221058
ref: 27
WASHER
€ 2.50
28
0831011058
ref: 28
NUT
0831011058
€ 2.50
29
0214205087
ref: 29
E22,E25
SCREW
0214205087
€ 2.00
30
5190045400
ref: 30
E15
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
31
5190022662
ref: 31
E22,E25
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
