TRANSMISSION

GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

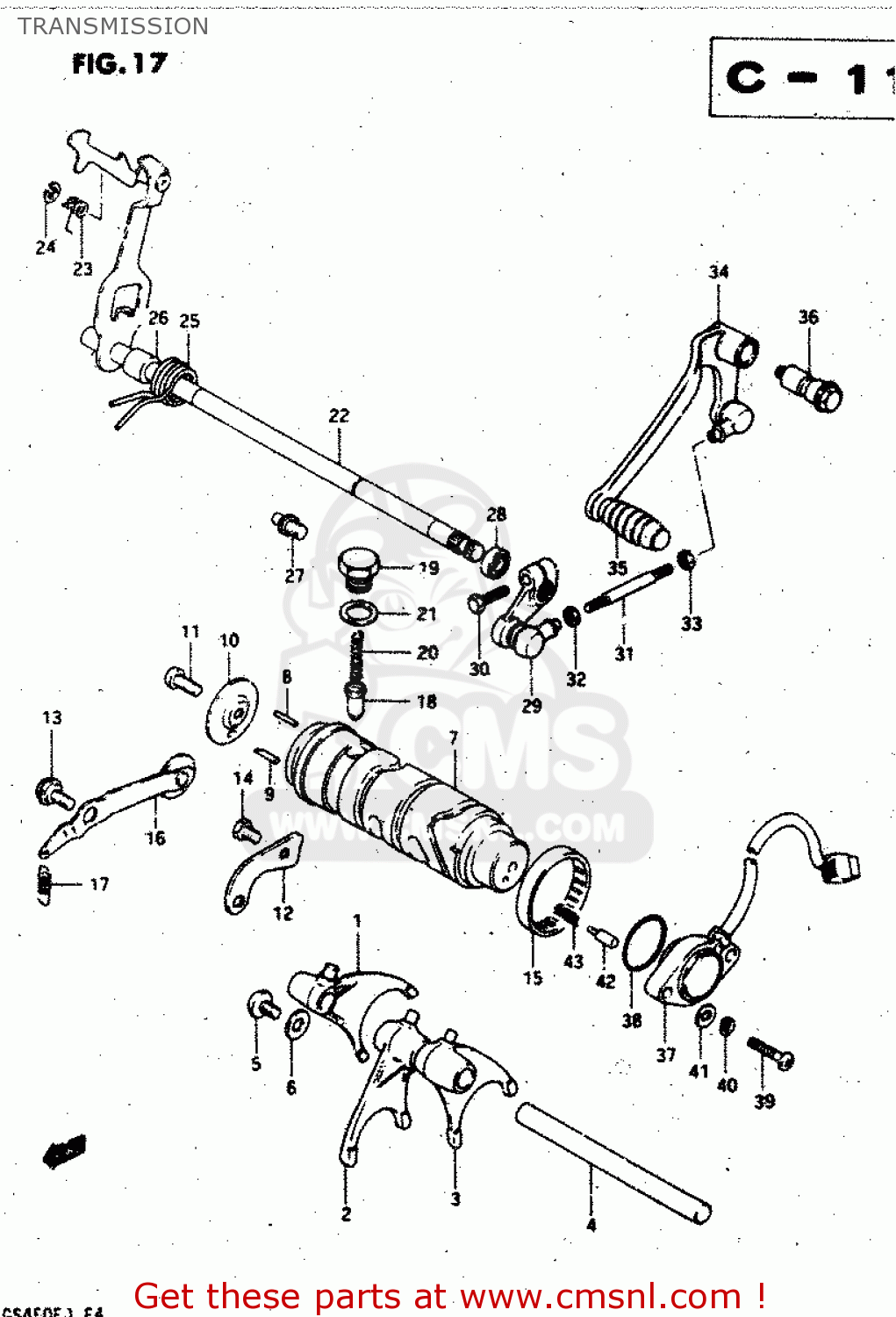

Transmission diagram GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)

TRANSMISSION GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
TRANSMISSION GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
TRANSMISSION GS450L 1982 (Z) (E02 E21 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
2412044100
ref: 1
SHAFT,COUNTER
2412044100
€ 178.00
2
2412144100
ref: 2
SHAFT,COUNTER
2412144100
€ 61.50
3
2422144001
ref: 3
GEAR,2ND DRIVE(NT:18)
2422144001
€ 83.00
4
2423144001
ref: 4
GEAR,THIRD DRIVE
2423144001
€ 69.50
5
2425044001
ref: 5
GEAR,FIFTH DRIVE
€ 66.00
6
2426044000
ref: 6
GEAR,SIXTH DRIVE
2426044000
€ 58.50
7
0821125341
ref: 7
WASHER
0821125341
€ 3.50
8
0938025010
ref: 8
CIRCLIP
0938025010
€ 3.00
9
0926225051
ref: 9
BEARING(25X62X17)
0926225051
€ 59.50
10
0939062006
ref: 10
C-RING
0939062006
€ 5.00
11
0926320026
ref: 11
ROLLER BEARING (20X34X2
0926320026
€ 37.00
12
0422107129
ref: 12
PIN
0422107129
€ 1.50
13
2474144100
ref: 13
PLATE,COUNTERSHAFT BEARING
€ 10.50
14
0212206168
ref: 14
SCREW
0212206168
€ 2.00
15
2410044810
ref: 15
SHAFT,DRIVE
2410044810
€ 125.00
16
2431044000
ref: 16
GEAR,FIRST DRIVEN
2431044000
€ 98.50
17
0821120341
ref: 17
WASHER
0821120341
€ 2.00
18
2432044002
ref: 18
ID:25
GEAR,SECOND DRIVEN
2432044002
€ 79.50
19
0821125321
ref: 19
WASHER
0821125321
€ 3.00
20
2432144004
ref: 20
ID:29
GEAR,SECOND DRIVEN
2432144004
€ 98.50
21
0930125001
ref: 21
ID:25
BUSHING
€ 12.50
22
0938025010
ref: 22
CIRCLIP
0938025010
€ 3.00
23
2433144002
ref: 23
GEAR,THIRD DRIVEN
2433144002
€ 89.50
24
0916725012
ref: 24
WASHER,LOCK
0916725012
€ 3.50
25
0916725013
ref: 25
WASHER,LOCK
0916725013
€ 2.50
26
0938025010
ref: 26
CIRCLIP
0938025010
€ 3.00
27
2434144002
ref: 27
GEAR,FOURTH DRIVEN
2434144002
€ 82.50
28
0916725012
ref: 28
WASHER,LOCK
0916725012
€ 3.50
29
0916925001
ref: 29
WASHER
0916925001
€ 2.00
30
0938025010
ref: 30
CIRCLIP
0938025010
€ 3.00
31
2435144001
ref: 31
GEAR,5TH DRIVEN(NT:25)
2435144001
€ 108.00
32-1
2436144001
ref: 32-1
FOR 24320-44002
GEAR,SIXTH DRIVEN
2436144001
€ 121.00
32-2
2436144002
ref: 32-2
FOR 24321-44004
GEAR,SIXTH DRIVEN
€ 121.00
33
0939062006
ref: 33
C-RING
0939062006
€ 5.00
34
0928332015
ref: 34
SEAL,OIL(32X62X7)
0928332015
€ 15.50
35
0926320028
ref: 35
ROLLER BEARING (20X34X1
0926320028
€ 34.00
36
0928232002
ref: 36
SEAL,OIL(32X62X5.5)
0928232002
€ 11.50
37
2751144000
ref: 37
SPROCKET,ENGINE(NT:16)
2751144000
€ 49.00
38
0914020009
ref: 38
NUT
0914020009
€ 9.00
39
0916725011
ref: 39
WASHER
0916725011
€ 2.50
40-1
2760044130
ref: 40-1
CHAIN ASSEMBLY,DRIVE
€ 0.00
40-2
2760044030
ref: 40-2
GS450LXE39
CHAIN ASSEMBLY,DRIVE
€ 168.50
up

all assemblies
