CHAIN CASE - SHOCK ABSORBER

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

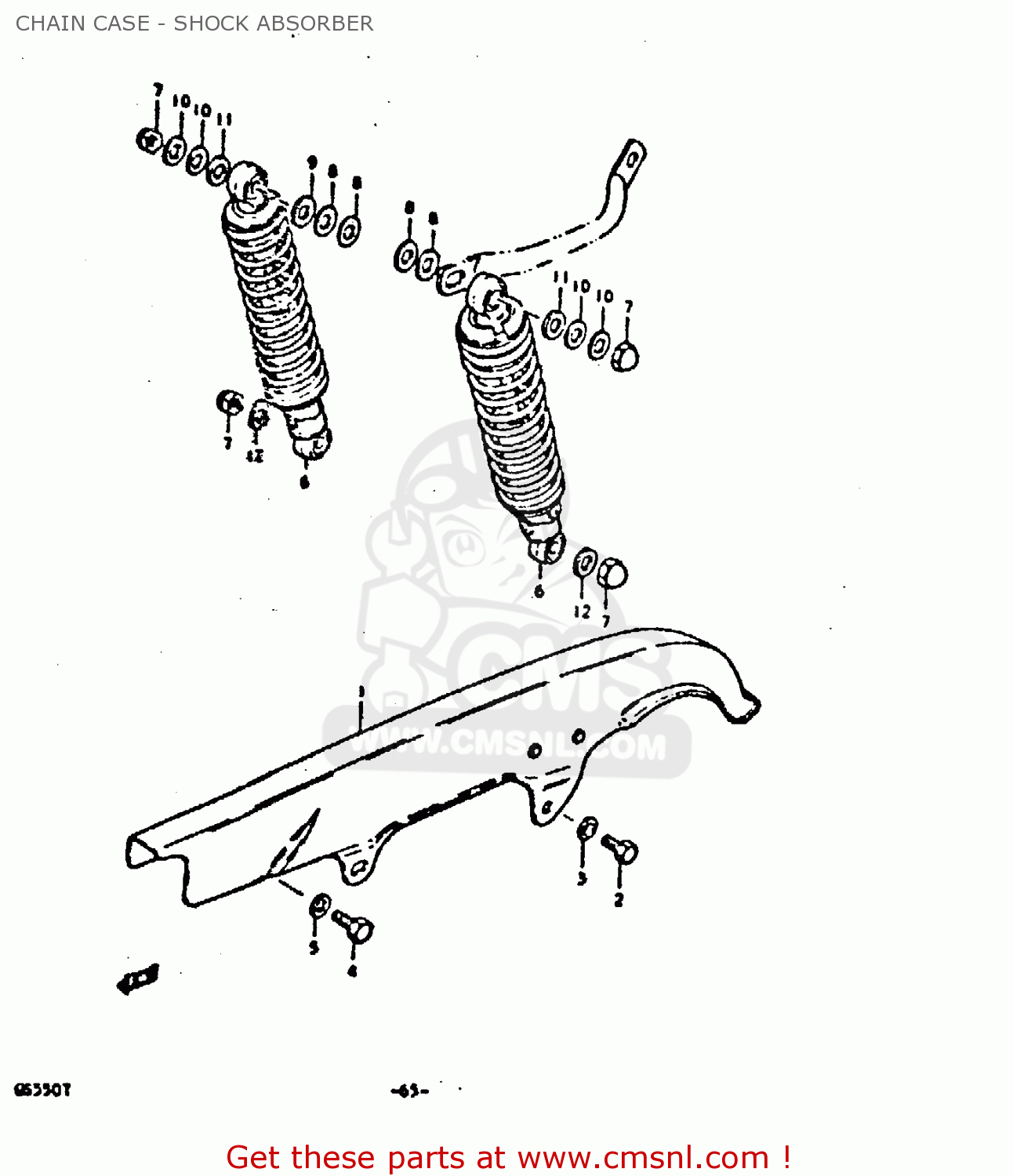

Chain case - shock absorber diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

6131044000019
ref: 1

CASE,CHAIN

€ 58.50

0910006011
ref: 2

BOLT(6X8)

€ 2.50

0916906016
ref: 3

WASHER

€ 1.50

0110706108
ref: 4

BOLT

€ 2.00

0916006028
ref: 5

WASHER(6.5X18X1)

€ 1.50

6-1

6210047602
ref: 6-1

ABSORBER ASSEMBLY,REAR SHOCK

€ 197.50

6-2

6210047032
ref: 6-2
(GS550TE1 ONLY)

ABSORBER ASSEMBLY,REAR SHOCK

€ 197.50

0831311108
ref: 7

NUT, LOWER LH

€ 2.50

0832211128
ref: 8

WASHER

€ 2.00

0916012012
ref: 9

WASHER (12.5X24X3.2)

€ 2.50

0916010001
ref: 10

WASHER

€ 2.00

0916010033
ref: 11

WASHER(10.5X24X3.2)

€ 2.00

0916010001
ref: 12

WASHER

€ 2.00
