FRONT WHEEL (FOR SPOKE WHEEL/SINGLE DISK)

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

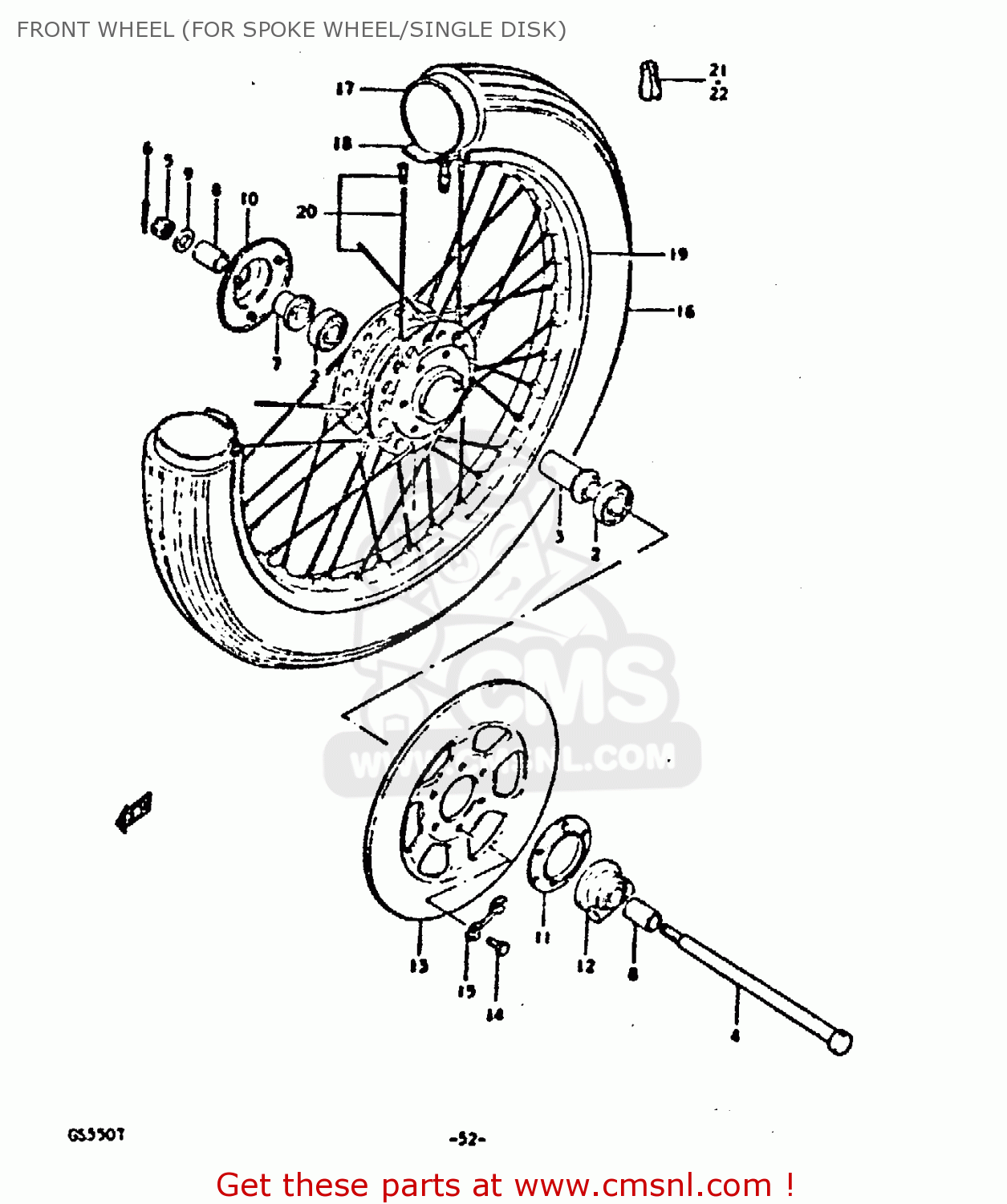

Front wheel (for spoke wheel/single disk) diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

5411147001
ref: 1

DRUM,FRONT HUB

€ 194.50

0812363027
ref: 2

BEARING

€ 19.00

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

5471133002
ref: 4

AXLE,FRONT

€ 41.00

0831431128
ref: 5

NUT 12MM

€ 2.00

0411130308
ref: 6

COTTER PIN

€ 1.50

5474018402
ref: 7

SPACER,FR AXLE,R

€ 18.50

0918015034
ref: 8

SPACER(15X22X30)

€ 7.00

0832221128
ref: 9

WASHER

€ 2.00

5487145000
ref: 10

COVER,FR HUB,R

€ 6.00

5487145010
ref: 11

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

5460018401
ref: 12

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

5921147000
ref: 13

DISC,BRAKE

€ 196.50

0910008140
ref: 14

BOLT(8X25)

€ 2.00

0916908016
ref: 15

WASHER

€ 3.50

5310047030
ref: 16

TIRE (3.25H19)

€ 0.00

5520015010
ref: 17

TUBE,INNER

€ 41.00

5526115010
ref: 18

PROTECTOR,WHL INR TUBE

€ 2.50

5531134020
ref: 19

RIM,FR WHEEL

€ 144.00

5532034805
ref: 20

SPOKE SET,FRONT

€ 71.00

5541111000
ref: 21

BALANCER,WHEEL (B)

€ 4.50

5541211000
ref: 22

BALANCER,WHEEL (30G)

€ 8.00
