TURN SIGNAL LAMP (E18, E26)

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

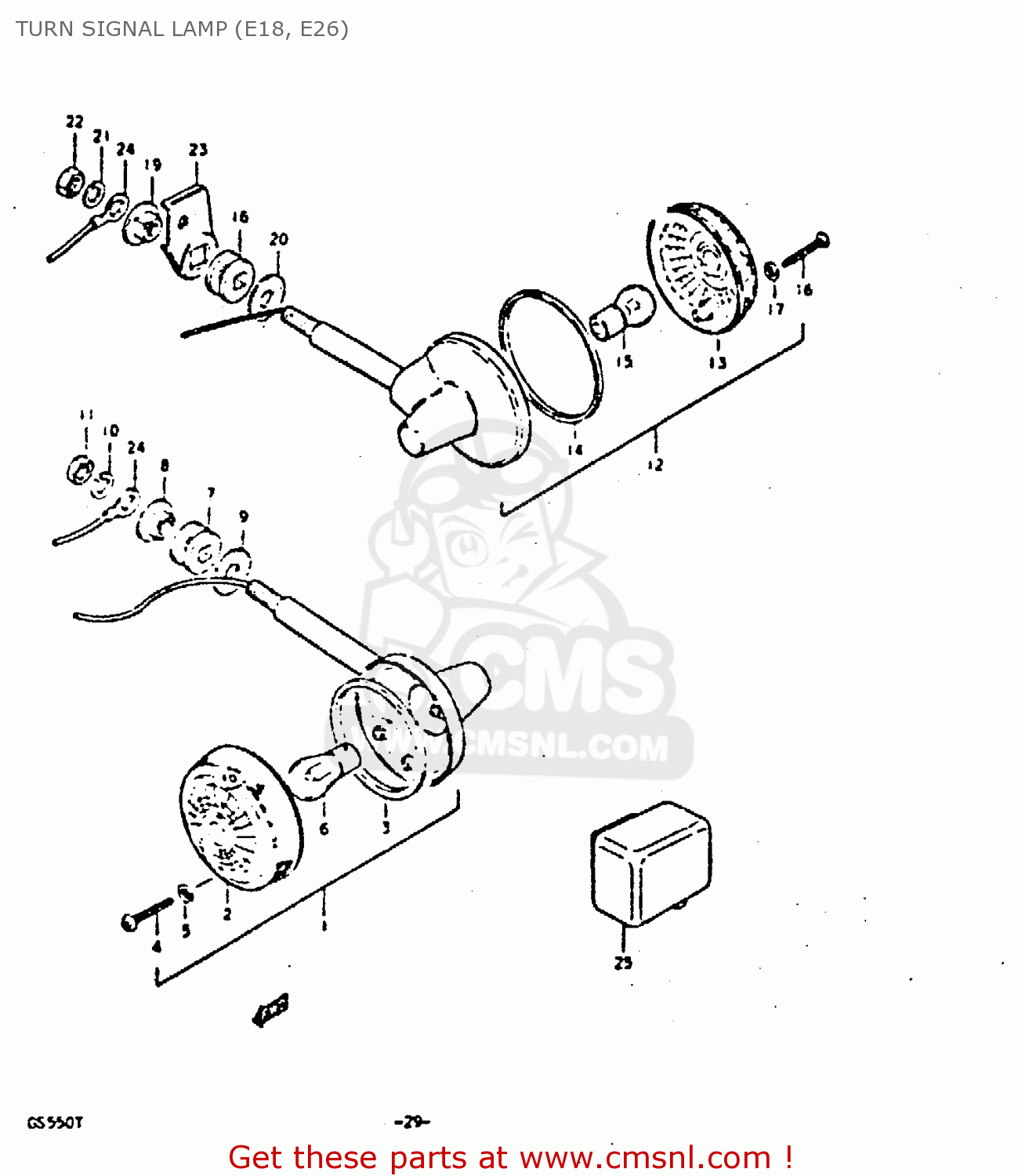

Turn signal lamp (e18, e26) diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

TURN SIGNAL LAMP (E18, E26) GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

TURN SIGNAL LAMP (E18, E26) GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

3560147611999
ref: 1

LAMP ASSY, FRONT TURN SIGNAL

€ 78.50

2

3561228620
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

3562347610
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112045
ref: 6
PHILIPS @wK15814

BULB(12V21W)

€ 5.00

7

3569032200
ref: 7

CUSHION

€ 38.50

8

3569532200
ref: 8

SPACER,RR TURNSIGNAL LAMP

€ 42.00

9

3562944000
ref: 9

WASHER

€ 4.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3560347612
ref: 12

LAMP ASSY, REAR TURN SIGNAL

€ 65.00

13

3565239280
ref: 13

LENS

€ 9.00

14

3561328620
ref: 14

GASKET (NAS)

€ 7.00

15

0947112056
ref: 15

BULB 12V 21W

€ 5.00

16

0321104208
ref: 16

SCREW

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

3569032200
ref: 18

CUSHION

€ 38.50

19

3569532200
ref: 19

SPACER,RR TURNSIGNAL LAMP

€ 42.00

20

3562944000
ref: 20

WASHER

€ 4.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0831012108
ref: 22

NUT

€ 2.50

23-1

4158045000019
ref: 23-1

BRACKET,RR TURNSIGNAL LAMP,R

€ 12.00

23-2

4159045000019
ref: 23-2

BRACKET,RR TURNSIGNAL LAMP,L

€ 16.50

24

3686245000
ref: 24

WIRE

€ 5.00

25

3861045031
ref: 25

RELAY,TURN SIGNAL

€ 54.50
