REAR COMBINATION LAMP (E22)

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

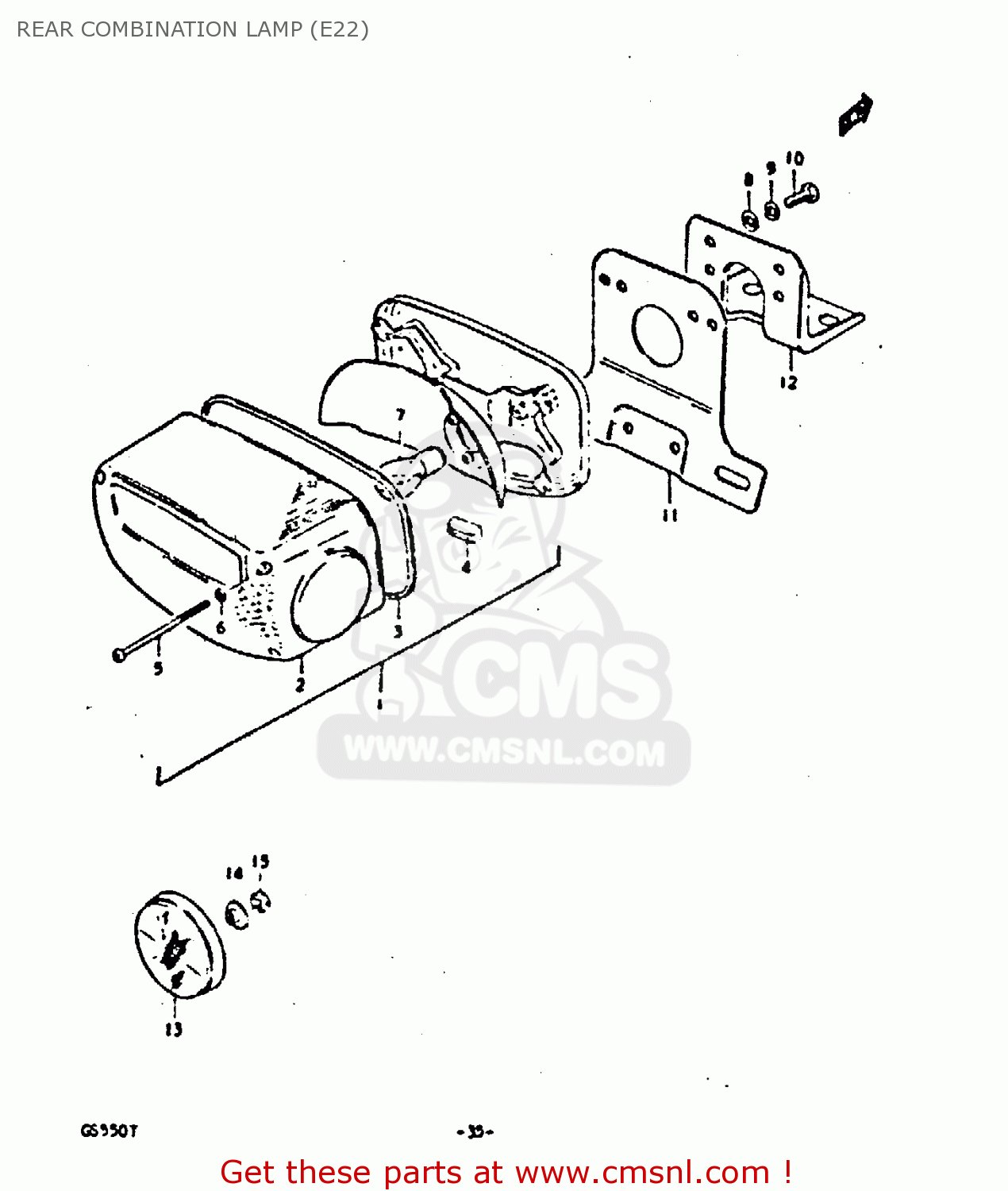

Rear combination lamp (e22) diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

3571045632999
ref: 1

LAMP ASSY, REAR COMBINATION

€ 149.50

3571245631
ref: 2

LENS,RR COMBIN

€ 41.00

3571345010
ref: 3

GASKET (NAS)

€ 9.00

3572845630
ref: 4

GROMMET

€ 0.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0947112046
ref: 7
PHILIPS @wK15827

BULB(12V21/5W)

€ 1.50

0832221068
ref: 8

WASHER

€ 2.00

0832121068
ref: 9

LOCK WASHER

€ 2.50

0110706128
ref: 10

BOLT

€ 2.00

3592745604
ref: 11

PLATE, LICENCE

€ 14.00

3592845001
ref: 12

BRACKET,LICENSE PLATE

€ 8.50

3597045611
ref: 13

REFLECTOR,REFLEX

€ 47.50

0918006048
ref: 14

SPACER

€ 2.00

0831011058
ref: 15

NUT

€ 2.50
