REAR BRAKE

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

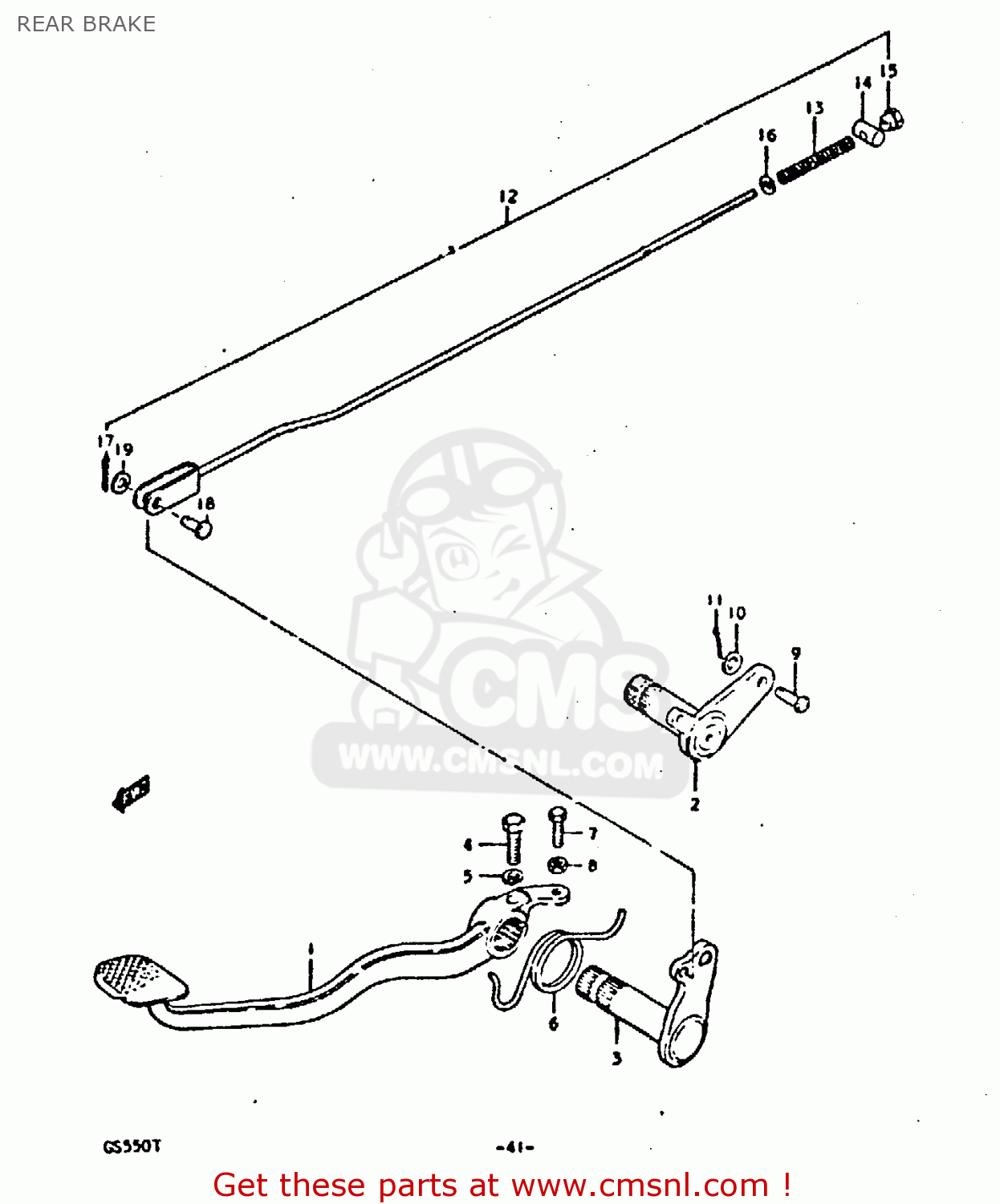

Rear brake diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

REAR BRAKE GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

REAR BRAKE GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

4311047000
ref: 1

PEDAL,BRAKE

€ 60.50

2

4312047600
ref: 2
FOR CAST WHEEL

ARM,BRAKE PEDAL ROD

€ 31.00

3

4312047000
ref: 3
FOR SPOKE WHEEL

ARM,BRAKE PEDAL

€ 41.50

4

0110708258
ref: 4

BOLT

€ 2.50

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

0944837002
ref: 6

SPRING

€ 5.50

7

0110706208
ref: 7

BOLT

€ 2.00

8

0831011068
ref: 8

NUT

€ 2.50

9

0920006029
ref: 9
FOR CAST WHEEL

PIN

€ 1.50

10

0832221068
ref: 10
FOR CAST WHEEL

WASHER

€ 2.00

11

0411120158
ref: 11
FOR CAST WHEEL

PIN

€ 1.50

12

4330047000
ref: 12
FOR SPOKE WHEEL

ROD ASSEMBLY,REAR BRAKE

€ 15.50

13

0944009004
ref: 13
FOR SPOKE WHEEL

SPRING

€ 2.00

14

0920913003
ref: 14
FOR SPOKE WHEEL

PIN

€ 3.50

15

0915006001
ref: 15
FOR SPOKE WHEEL

NUT

€ 3.50

16

0832221068
ref: 16
FOR SPOKE WHEEL

WASHER

€ 2.00

17

0411120208
ref: 17
FOR SPOKE WHEEL

PIN 20X20

€ 1.50

18

0920006013
ref: 18
FOR SPOKE WHEEL

PIN(L:13.5)

€ 2.00

19

0832221068
ref: 19
FOR SPOKE WHEEL

WASHER

€ 2.00
