REAR SWINGING ARM

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

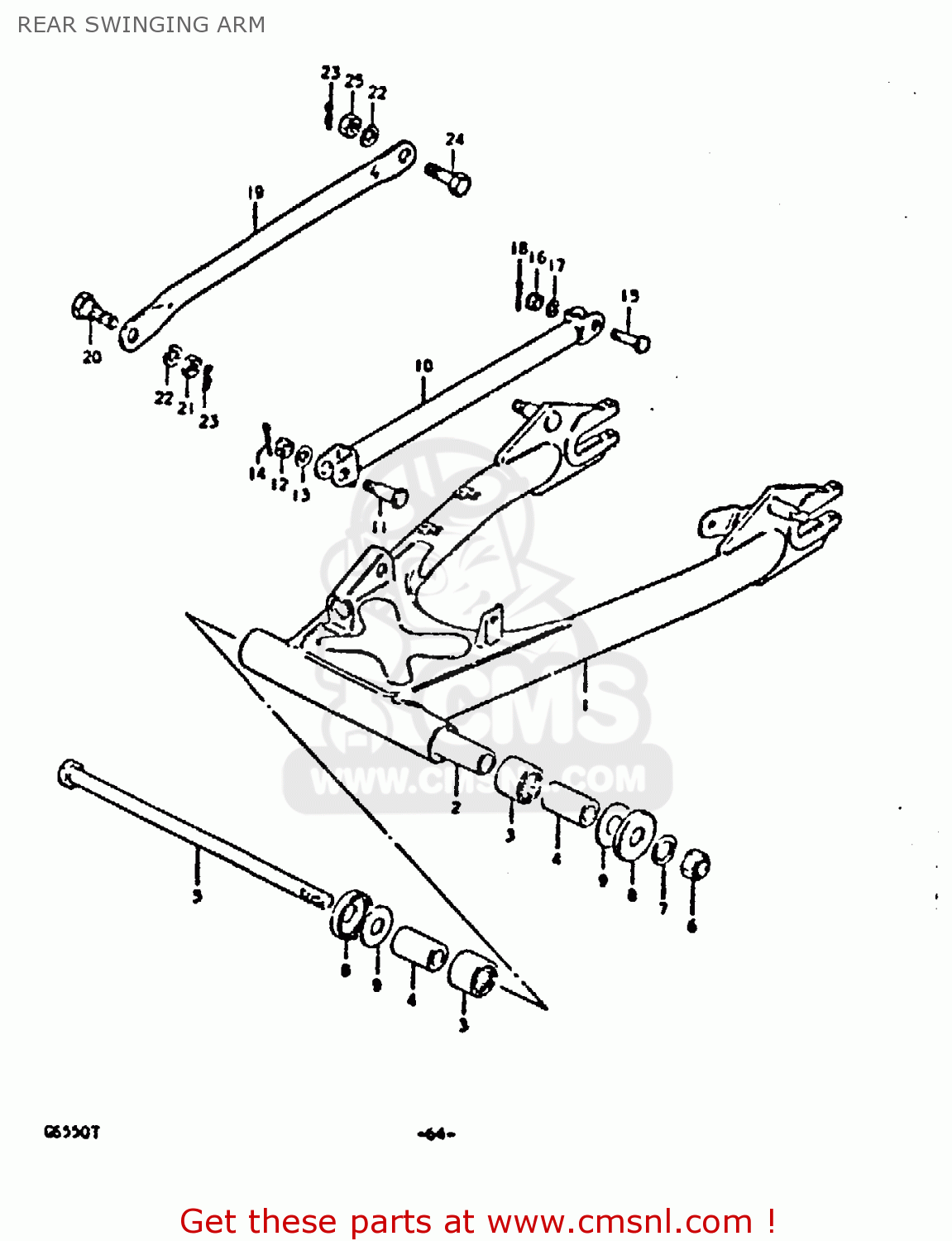

Rear swinging arm diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

REAR SWINGING ARM GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
REAR SWINGING ARM GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
REAR SWINGING ARM GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
prices are in EUR
ref
part #
description
quantity
1-1
6110047823019
ref: 1-1
FOR CAST WHEELS
SWING ARM ASSEMBLY,REAR
€ 101.00
1-2
6110047813019
ref: 1-2
FOR SPOKE WHEELS
SWING ARM ASSEMBLY,REAR
€ 114.00
2
6128145001
ref: 2
SPACER,RR SWGARM PIVOT CTR
6128145001
€ 19.50
3
0926322017
ref: 3
BEARING(22X29X30)
0926322017
€ 18.50
4
6125145001
ref: 4
SPACER,RR SWGARM PIVOT
6125145001
€ 12.50
5
6121131001
ref: 5
SHAFT,REAR SWING ARM
6121131001
€ 62.50
6
0831921148
ref: 6
NUT 14MM
0831921148
€ 3.00
7
0832211148
ref: 7
WASHER
0832211148
€ 2.00
8
6126245003
ref: 8
COVER,REAR SWING ARM DUST
€ 4.50
9
0916014020
ref: 9
WASHER(14.2X34X1)
0916014020
€ 2.50
10
6431049000019
ref: 10
FOR CAST WHEELS
LINK,REAR TORQUE
6431049000019
€ 16.00
11
0911110011
ref: 11
FOR CAST WHEELS
BOLT
0911110011
€ 8.00
12
0831441108
ref: 12
FOR CAST WHEELS
NUT
0831441108
€ 2.50
13
0832211108
ref: 13
FOR CAST WHEELS
WASHER
€ 2.50
14
0411120208
ref: 14
FOR CAST WHEELS
PIN 20X20
0411120208
€ 1.50
15
0910110017
ref: 15
FOR CAST WHEELS
BOLT(10X39)
0910110017
€ 5.00
16
0831441108
ref: 16
FOR CAST WHEELS
NUT
0831441108
€ 2.50
17
0832211108
ref: 17
FOR CAST WHEELS
WASHER
€ 2.50
18
0411120208
ref: 18
FOR CAST WHEELS
PIN 20X20
0411120208
€ 1.50
19
6431134000
ref: 19
FOR SPOKE WHEELS
TORQUE LINK,REAR
6431134000
€ 13.50
20
0911110010
ref: 20
FOR SPOKE WHEELS
BOLT(10X24.5)
0911110010
€ 5.50
21
0831022108
ref: 21
FOR SPOKE WHEELS
NUT
0831022108
€ 2.50
22
0832121108
ref: 22
FOR SPOKE WHEELS
LOCK WASHER
0832121108
€ 2.00
23
0938510001
ref: 23
FOR SPOKE WHEELS
CLIP
0938510001
€ 1.50
24
0910110003
ref: 24
FOR SPOKE WHEELS
BOLT(10X31)
0910110003
€ 4.00
25
0831011108
ref: 25
FOR SPOKE WHEELS
NUT
0831011108
€ 2.50
