SEAT

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

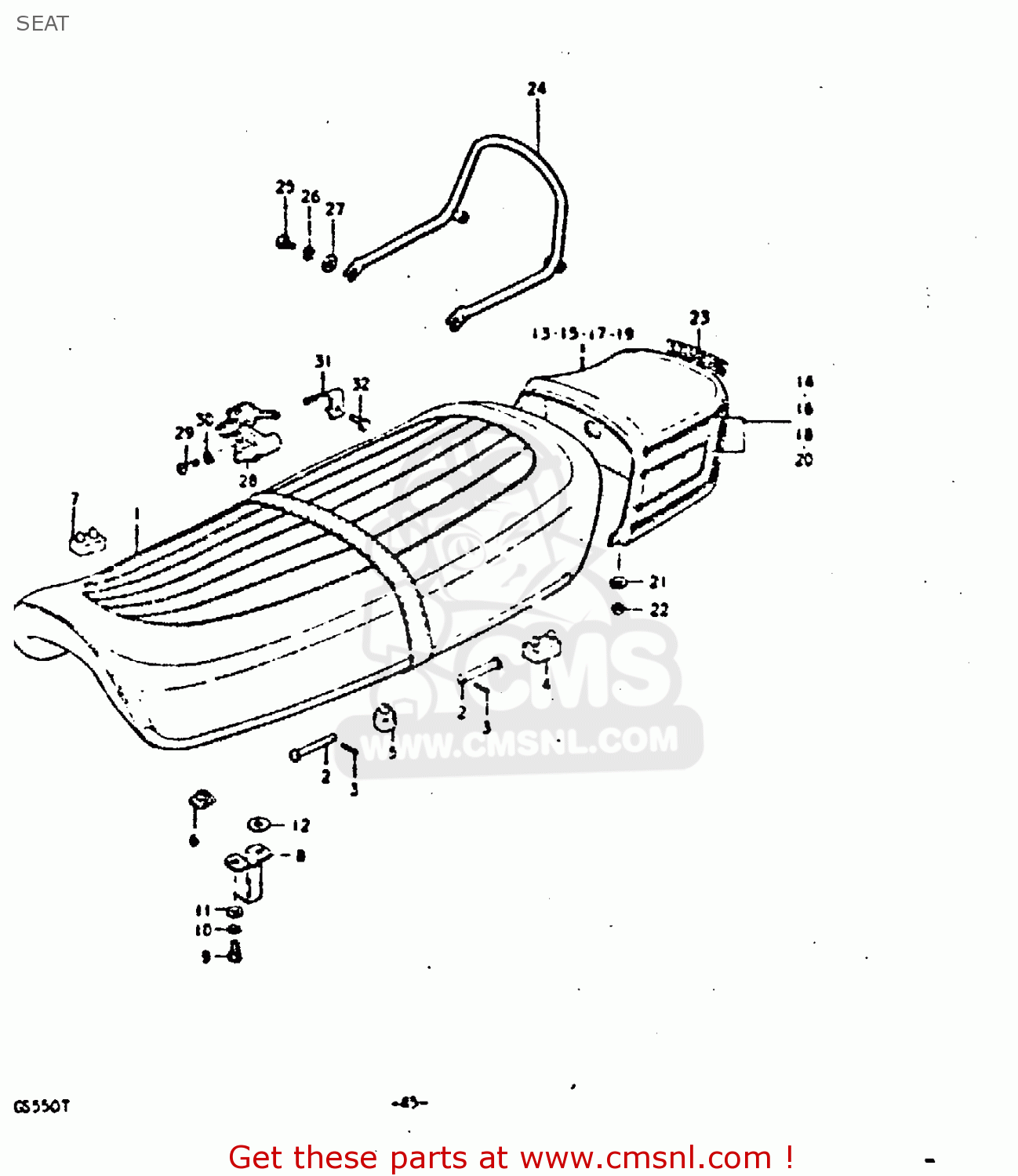

Seat diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

SEAT GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
SEAT GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
SEAT GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
451004701140P
ref: 1-2
FOR CAST WHEEL E2, E
SEAT ASSEMBLY
€ 381.50
2
0920006018
ref: 2
PIN
0920006018
€ 2.00
3
0411120158
ref: 3
PIN
0411120158
€ 1.50
4
0932108006
ref: 4
CUSHION
0932108006
€ 3.00
5
0932110002
ref: 5
CUSHION(11.5X22X20)
0932110002
€ 2.00
6
0932910001
ref: 6
CUSHION
0932910001
€ 2.50
7
0932108010
ref: 7
CUSHION
0932108010
€ 4.00
8
4521347000
ref: 8
STRIKER,SEAT LOCK
4521347000
€ 7.00
9
0110706128
ref: 9
BOLT
0110706128
€ 2.00
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
0832211068
ref: 11
WASHER 6MM
€ 2.00
12
0916008043
ref: 12
WASHER(8.5X18X1)
0916008043
€ 1.50
13
4551045001019
ref: 13
COVER,SEAT TAIL
€ 113.00
14
681604707071V
ref: 14
TAPE SET
€ 0.00
15
455104500105K
ref: 15
COVER, SEAT TAIL
€ 113.00
16
681604707071V
ref: 16
TAPE SET
€ 0.00
17
455104500100J
ref: 17
COVER,SEAT TAIL
€ 113.00
18
681604707071W
ref: 18
TAPE SET
€ 42.00
19
NOTUSED
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
0916906016
ref: 21
WASHER
0916906016
€ 1.50
22
0831921068
ref: 22
NUT 6MM
0831921068
€ 2.00
23-1
6816645010764
ref: 23-1
FOR CAST WHEEL
EMBLEM,SEAT TAIL COVER
€ 3.00
23-2
6816645000
ref: 23-2
FOR SPOKE WHEEL
EMBLEM
€ 5.00
24
4621045000
ref: 24
E2, E4, E15, E18, E2
HANDLE, PILLION RIDER
€ 74.50
25
0120408607
ref: 25
E2, E4, E15, E18, E2
BOLT
0120408607
€ 2.50
26
0832121088
ref: 26
E2, E4, E15, E18, E2
LOCK WASHER
0832121088
€ 2.00
27
0832211088
ref: 27
E2, E4, E15, E18, E2
WASHER
0832211088
€ 2.00
28
9570045813
ref: 28
LOCK ASSY,SEAT
9570045813
€ 59.50
29
0211205128
ref: 29
SCREW
€ 2.50
30
0832121058
ref: 30
LOCK WASHER
0832121058
€ 2.00
31
9572245000
ref: 31
SPRING,HELMET HOLDER
9572245000
€ 8.50
32
0110405088
ref: 32
BOLT 5X16
€ 2.00
