CYLINDER HEAD COVER

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

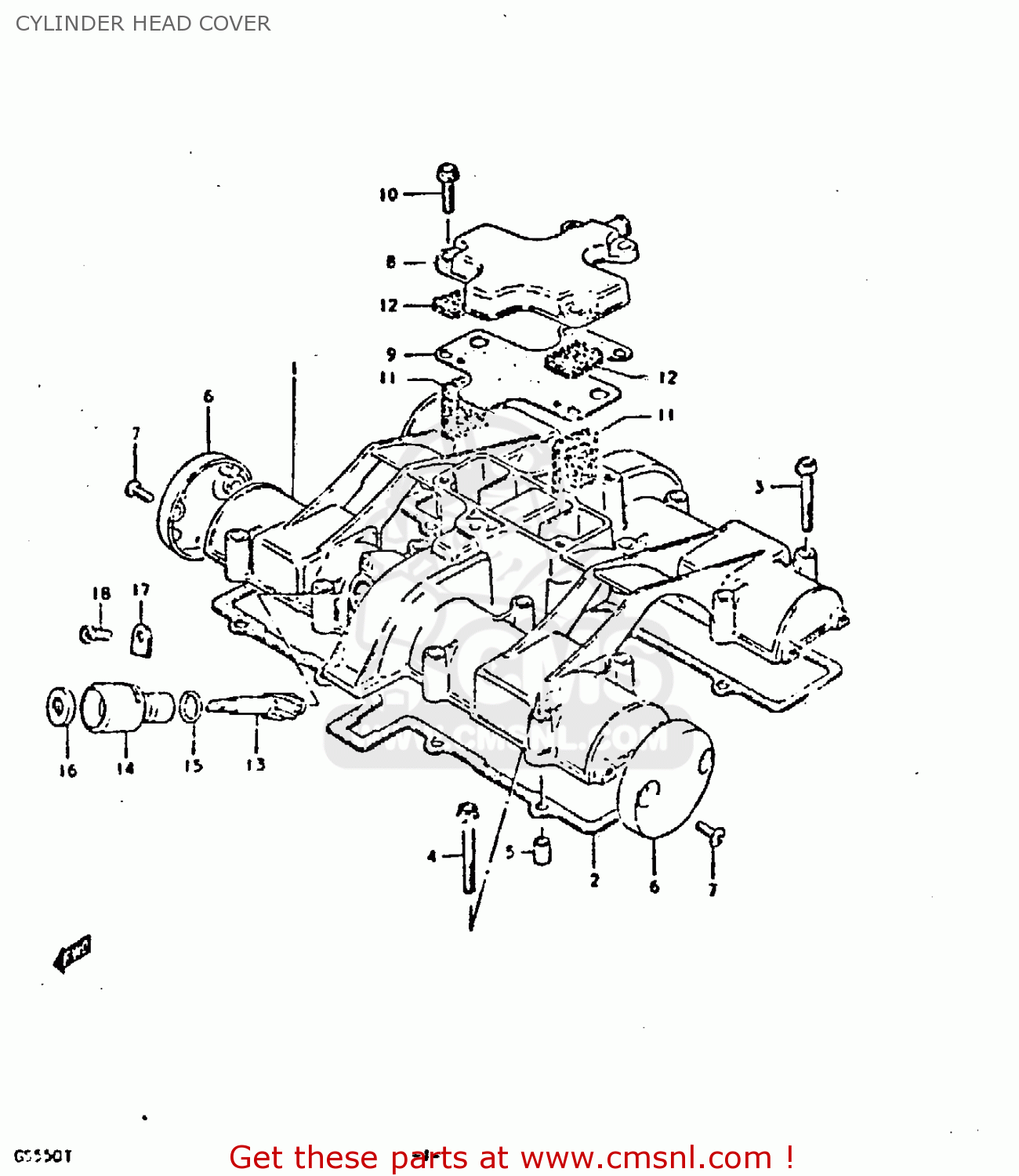

Cylinder head cover diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

CYLINDER HEAD COVER GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

CYLINDER HEAD COVER GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

1117147000
ref: 1

COVER,CYLINDER HEAD

€ 136.00

2

1117347001
ref: 2

GASKET,CYLINDER HEAD COVER (MCA)

€ 62.00

3

0151706408
ref: 3

BOLT

€ 2.50

4

0151706458
ref: 4

BOLT,UNDER

€ 2.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1117445000
ref: 6

CAP,CYLINDER HEAD COVER

€ 38.00

7

0213205128
ref: 7

SCREW

€ 2.50

8

1117647010
ref: 8

COVER,BREATHER

€ 32.50

9

1117747001
ref: 9

GASKET (MCA)

€ 19.50

10

0151706208
ref: 10

BOLT,REAR

€ 2.50

11

1118645000
ref: 11

COVER,BREATHER

€ 5.50

12

1118745000
ref: 12

SEPARATOR,OIL BREATHER

€ 6.50

13

2643147002
ref: 13

GEAR,TACHOMETER DRIVEN

€ 29.00

14

2644145000
ref: 14

SLEEVE,TACHOMETER DRIVE

€ 18.00

15

2645145000A
ref: 15

SEAL,TACHOMETER DRIVEN

€ 4.50

16

0928905002
ref: 16

SEAL,OIL(5X12X8)

€ 11.00

17

2644933000
ref: 17

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

18

0912805101
ref: 18

SCREW(5X12)

€ 1.50
