REAR FENDER

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

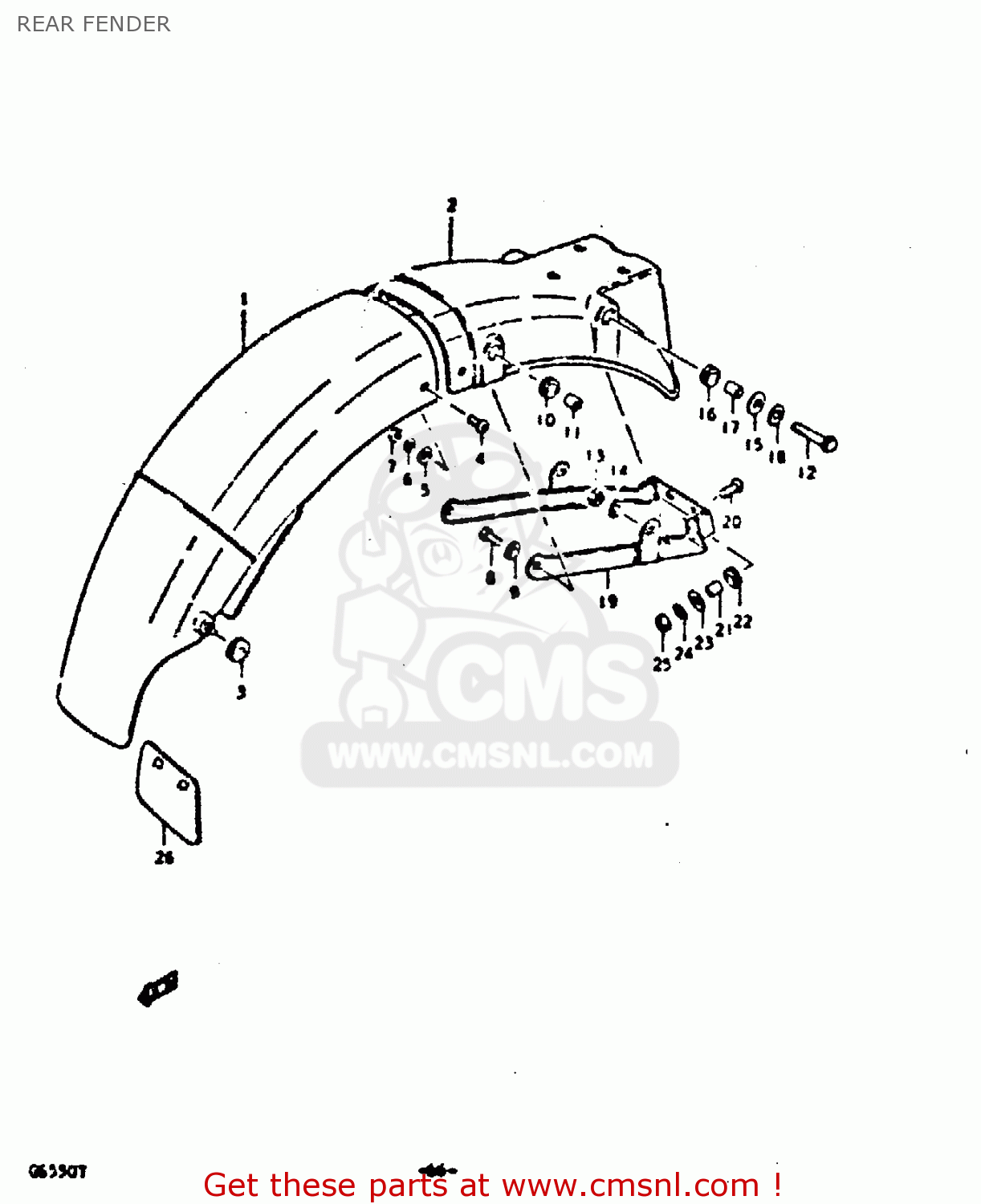

Rear fender diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

REAR FENDER GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

REAR FENDER GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

6311245001
ref: 1

FENDER,REAR

€ 61.50

2-1

6311345001
ref: 2-1

BODY,REAR FENDER,REAR

€ 68.00

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-3

NOTUSED
ref: 2-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

0932008013
ref: 3

CUSHION

€ 4.00

4

0214205128
ref: 4

SCREW

€ 1.50

5

0916005017
ref: 5

WASHER (5.5X16X1.2)

€ 2.50

6

0832121058
ref: 6

LOCK WASHER

€ 2.00

7

0831011058
ref: 7

NUT

€ 2.50

8

0110706208
ref: 8

BOLT

€ 2.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

0932008007
ref: 10

CUSHION

€ 4.00

11

0918006038
ref: 11

SPACER(6.1X9X7.5)

€ 2.00

12

0120408457
ref: 12

BOLT

€ 2.00

13

0831012088
ref: 13

NUT

€ 2.00

14

0832121088
ref: 14

LOCK WASHER

€ 2.00

15

0916008032
ref: 15

WASHER(8.5X26X1.2)

€ 3.50

16

0932012011
ref: 16

CUSHION

€ 3.00

17

0918008021
ref: 17

SPACER (8.2X12X7.5)

€ 3.00

18

0832221088
ref: 18

WASHER

€ 2.00

19

6312045000
ref: 19

REINFORCEMENT,REAR FENDER

€ 36.00

20

0214206207
ref: 20

SCREW

€ 2.00

21

0918006011
ref: 21

SPACER (6.1X9X9)

€ 2.00

22

0932008013
ref: 22

CUSHION

€ 4.00

23

0916006012
ref: 23

WASHER(6,5X22X1.6)

€ 2.00

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

0831011068
ref: 25

NUT

€ 2.50

26

6341131900
ref: 26

GUIDE,RR FENDER MUD

€ 8.00
