FRAME COVER

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

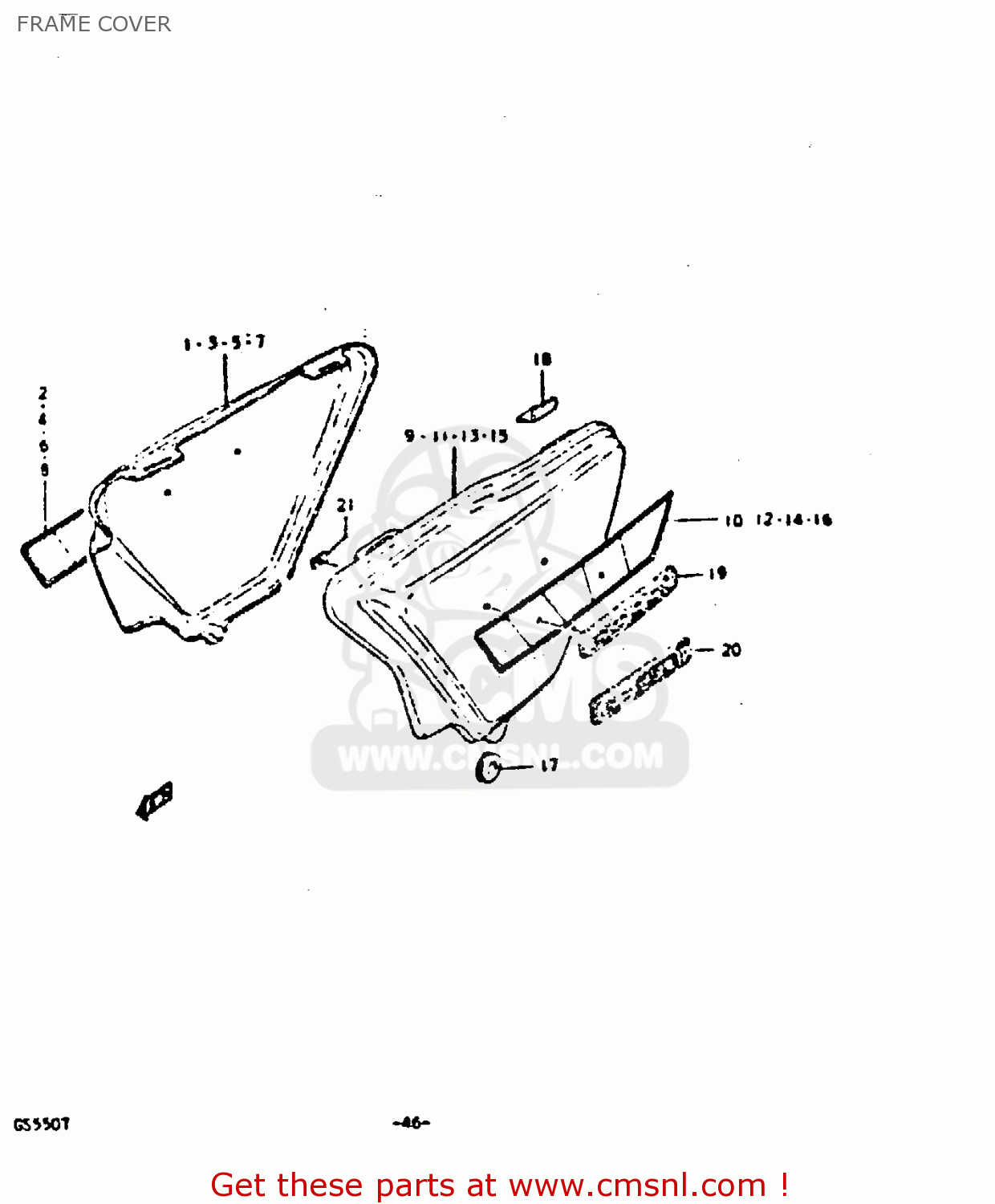

Frame cover diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

FRAME COVER GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

FRAME COVER GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

4711147000019
ref: 1

COVER,FRAME,RIGHT

€ 54.00

2

681364701071V
ref: 2

TAPE

€ 29.00

3

471114700005K
ref: 3

COVER, FRAME RH

€ 54.00

4

681364701071V
ref: 4

TAPE

€ 29.00

5

471114700000J
ref: 5

COVER,FRAME,RIGHT

€ 54.00

6

661364701071W
ref: 6

TAPE

€ 0.00

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

4721147001019
ref: 9

COVER,FRAME,LEFT

€ 43.00

10

681464701071V
ref: 10

TAPE

€ 0.00

11

472114700105K
ref: 11

COVER, FRAME LH

€ 43.00

12

681464701071V
ref: 12

TAPE

€ 0.00

13

472114700100J
ref: 13

COVER,FRAME,LEFT

€ 43.00

14

681464701071W
ref: 14

TAPE

€ 0.00

15

NOTUSED
ref: 15

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

NOTUSED
ref: 16

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17

0932008018
ref: 17

CUSHION

€ 4.00

18

4711745000
ref: 18

CUSHION,FRAME COVER

€ 1.50

19

6814147010
ref: 19
FOR SPOKE WHEEL

EMBLEM,FRAME COVER

€ 11.50

20

6814147020
ref: 20
FOR CAST WHEEL

EMBLEM,FRAME COVER

€ 11.50

21

0914803002
ref: 21

NUT

€ 3.00
