FRONT CALIPERS (ET ALL SPEC. AND DT) (DOUBLE DISK)

GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

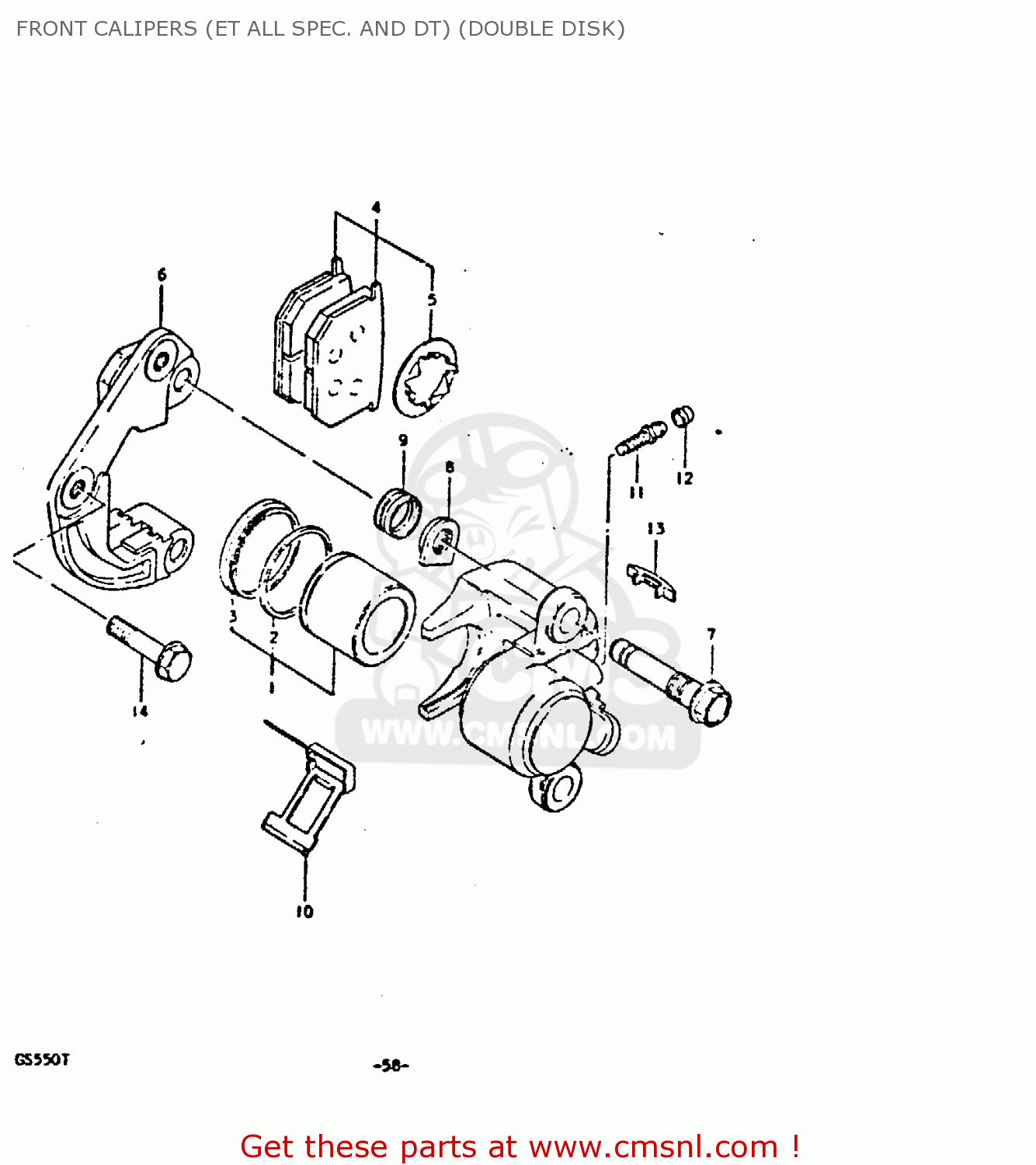

Front calipers (et all spec. and dt) (double disk) diagram GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

FRONT CALIPERS (ET ALL SPEC. AND DT) (DOUBLE DISK) GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

FRONT CALIPERS (ET ALL SPEC. AND DT) (DOUBLE DISK) GS550E 1980 (T) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

0

5910049000
ref: 0

CARIPER ASSEMBLY,RIGHT

€ 187.50

0

5930049000
ref: 0

CALIPER ASSEMBLY,LEFT

€ 290.00

1

5930049810
ref: 1

PISTON SET

€ 52.50

2

5910734020
ref: 2

SEAL,PISTON

€ 6.50

3

5930849000
ref: 3

BOOT,PISTON

€ 9.00

4

5930049820
ref: 4

PAD & SHIM SET (MCA)

€ 91.00

5

5937149000
ref: 5

SHIM,PAD

€ 7.00

6-1

5915149000
ref: 6-1

COVER,CALIPER

€ 96.00

6-2

5935149000
ref: 6-2

BRACKET

€ 83.50

7

5930549000
ref: 7

AXLE,CALIPER

€ 42.00

8

5931749000
ref: 8

NUT,CALIPER AXLE

€ 14.00

9

5931249000
ref: 9

BOOT

€ 30.00

10

5931549000
ref: 10

SPRING

€ 9.50

11

5912147050
ref: 11

BREATHER

€ 11.50

12

5247460020
ref: 12

CAP,BLEEDER PL

€ 6.00

13

5932449000
ref: 13

COVER,INDICATOR

€ 12.50

14

0910310019
ref: 14

BOLT(10X37)

€ 2.50
